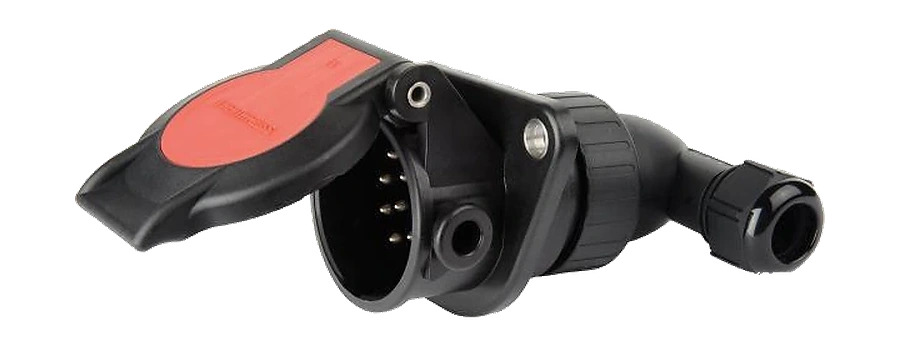

15-pole 24V DIN/ISO 12098 socket

ConnectorRoute CR-PS-000578

15-pole 24V DIN/ISO 12098 socket

socket

This product page combines price, lead time, technical selection signals and cross-references in one place, so buyers and engineers can identify the right vehicle-electrical route quickly.

1209824V15PIP 69K
ConnectorRoute price€12.00
Lead timewithin 1 week
Request quoteCatalogue

Cross-reference numbers

Cross-reference numbers

Use these manufacturer, distributor and OE numbers for identification. ConnectorRoute remains the supplier and validates fit before quoting.

Reference sourceReference numbers
Apparatebau Kirchheim654 006 022
ERICH JAEGER141026
ERMAX090 265 405
HERTH+BUSS ELPARTS51305638

Technical data

Technical data

ConnectorRoute
CR-PS-000578
Product group
socket
Number of contacts
15-pin
Voltage
24 V
Connection / terminals
with kabelschroefkoppeling
DIN / ISO
12098
Supplementary info
with turned contacts, with lamellenkap
Shape
Haaks
Thread size
M25
Mounting method
bayonet
Protection rating
IP 69K
Plug type
Krimpverbinding
Approval
ADR/GGVS tested
Conductor cross-section
12 x 1,5 mm², 3 x 2,5 mm²
Cross-section from
9 mm²
Cross-section to
17 mm²
