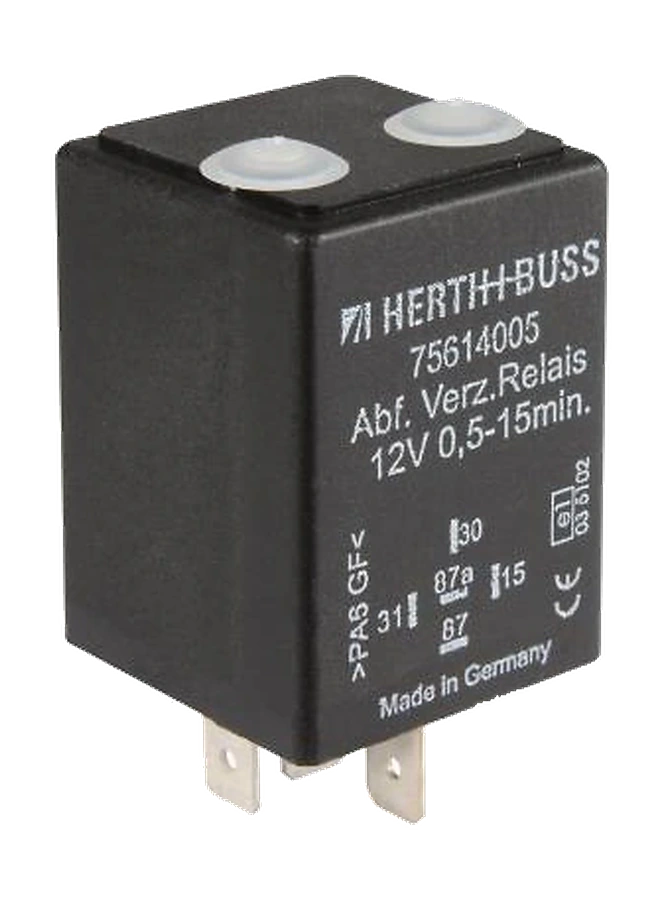

5-pole time relay

ConnectorRoute CR-EL-001601

5-pole time relay

time relay

This product page combines price, lead time, technical selection signals and cross-references in one place, so buyers and engineers can identify the right vehicle-electrical route quickly.

5PIP 54
ConnectorRoute price€18.50
Lead timewithin 1 week
Request quoteCatalogue

Cross-reference numbers

Cross-reference numbers

Use these manufacturer, distributor and OE numbers for identification. ConnectorRoute remains the supplier and validates fit before quoting.

Reference sourceReference numbers
HELLA5HE 996 152-131
HERTH+BUSS ELPARTS75614005
MERCEDES-BENZ221 906 66 00 A 221 906 66 00
OE (OE)A 221 906 66 00 221 906 66 00

Technical data

Technical data

ConnectorRoute
CR-EL-001601
Product group
time relay
Rated current
10 A
Supplementary info
Afvalvertraging
Number of contacts
5-pin
Connection technology
5 x 6,3 mm
Width 2
30 mm
Height
40 mm
Depth
30 mm
Protection rating
IP 54
Temperature range from
-40 °C
Temperature range to
+85 °C
Connection / terminals
Verzorgingsklem 30
Plug type
blade terminal
Instelbereik van
30 sec.
Instelbereik tot
900 sec.
