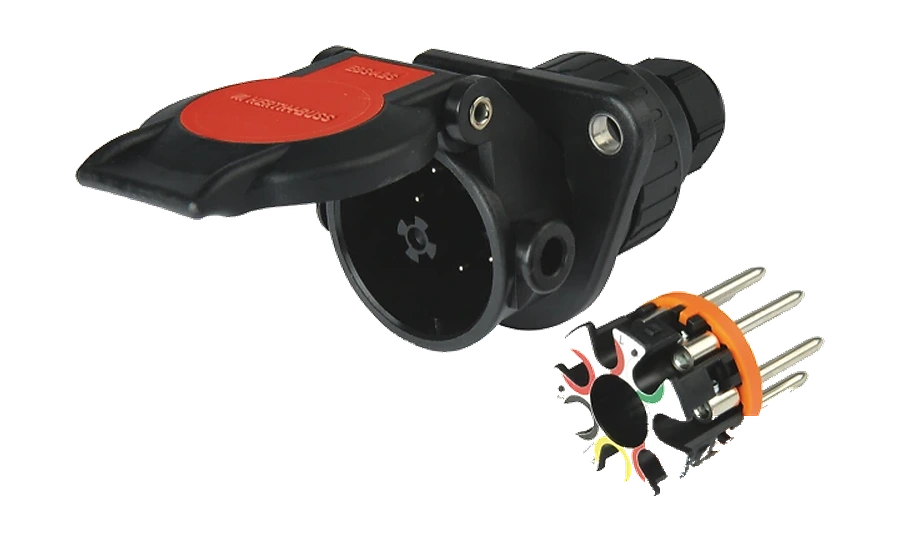

7-pole 24V DIN/ISO 7638-1 socket

ConnectorRoute CR-PS-000175

7-pole 24V DIN/ISO 7638-1 socket

socket

This product page combines price, lead time, technical selection signals and cross-references in one place, so buyers and engineers can identify the right vehicle-electrical route quickly.

7638-124V7PIP 69
ConnectorRoute price€12.50
Lead timewithin 1 week
Request quoteCatalogue

Cross-reference numbers

Cross-reference numbers

Use these manufacturer, distributor and OE numbers for identification. ConnectorRoute remains the supplier and validates fit before quoting.

Reference sourceReference numbers
System / usage numbersEBS
Erich Jaeger141070 141071
Apparatebau Kirchheim65011
DAF0872898
DAF (OE)0872898
DT Spare Parts5.77074 5.77074 6.81943
DURITE0-478-26
ERICH JAEGER141070
ERMAX090 290 077
FEBI BILSTEIN171821
FREIENSTEIN005839.00
HC-Cargo181470
HELLA8JB 007 645-031
HERTH+BUSS ELPARTS51305257 51305256 51305258
JAEGER141070 141070 H B 241010 H 141070 241010
KÖGEL6611591
KÖGEL (OE)6611591
MENBER S00425400 005839.00
PE Automotive076.942-45A
PETERS076.942-45A
ProVia – by WabcoPRO 531 000 2
SCANIA1928584 2 120 379 1928584 2 120 379
SCANIA (OE)1928584 2 120 379
ST-TEMPLIN01.020.7201.461 T 7201.461
VAN HOOL11543596
VAN HOOL (OE)11543596
WABCO446 008 433 2
WÜRTH0510 950 169
menbaa100846

Technical data

Technical data

ConnectorRoute
CR-PS-000175
EAN
4026736358327
Product group
socket
Number of contacts
7-pin
Voltage
24 V
Brake / driving dynamics
for vehicles with EBS
DIN / ISO
7638-1
Supplementary info
with wire end ferrule, with gasket
Shape
Recht
Mounting method
bayonet
Protection rating
IP 69
Plug type
screw connection
Approval
ADR/GGVS tested
Cable diameter from
9 mm
Cable diameter up to
17 mm
Conductor cross-section
5 x 1,5 mm², 2 x 4,0 mm²
