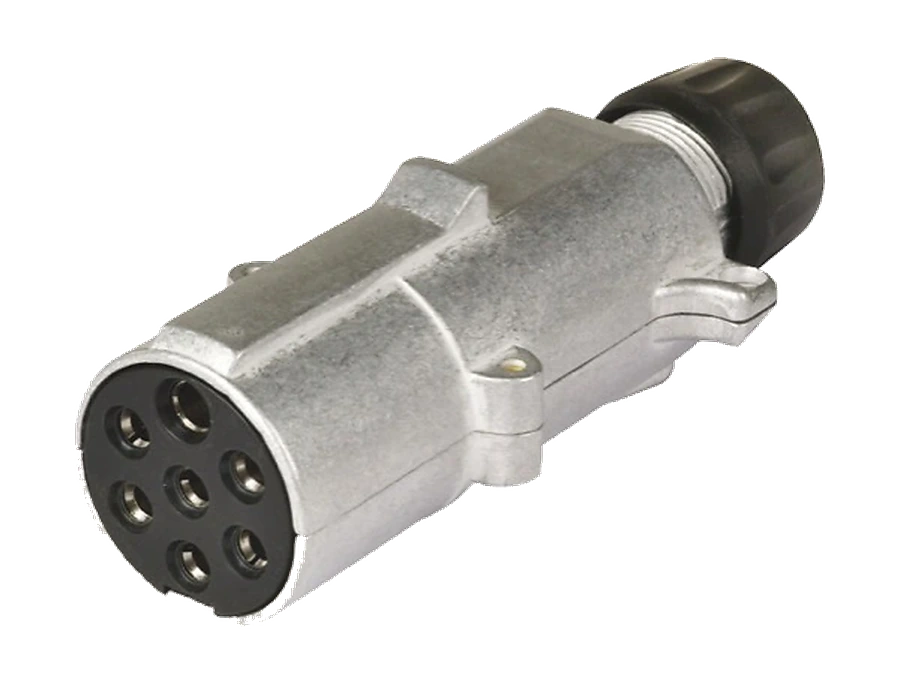

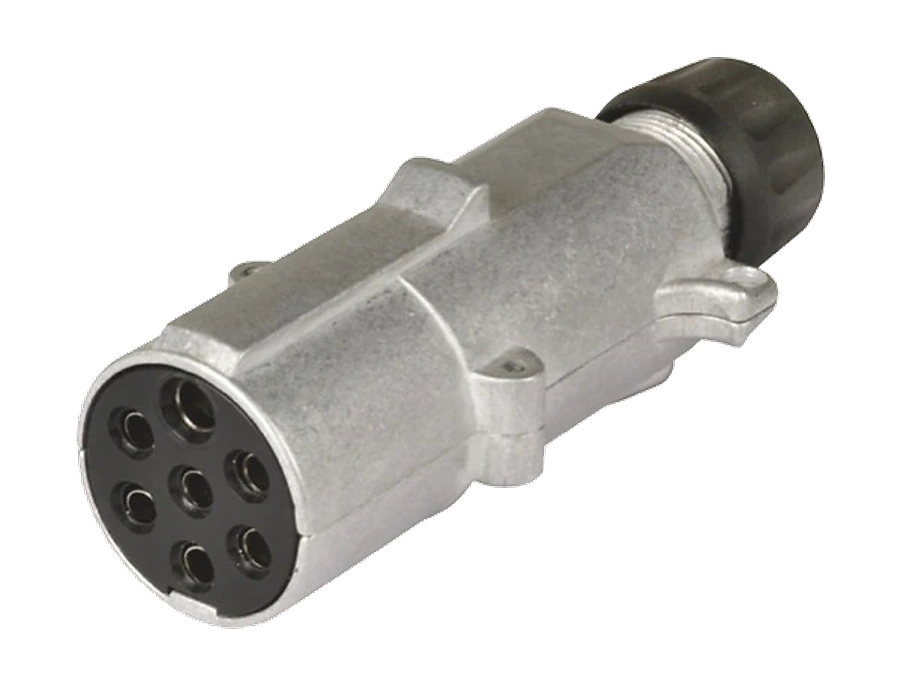

7-pole 24V DIN/ISO 1185 N-Typ plug

ConnectorRoute CR-PS-000120

7-pole 24V DIN/ISO 1185 N-Typ plug

plug

This product page combines price, lead time, technical selection signals and cross-references in one place, so buyers and engineers can identify the right vehicle-electrical route quickly.

Genuine Erich Jaeger1185 N-Typ24V7P
Business price excl. VAT
€5.93€859.85 excl. VAT per box
Price incl. 21% VAT
€1,040.42minimum order: 1 box of 145 pieces

Sold per box of 145 pieces — €859.85 per box

Ships within 1 week
Free shipping from €500 · below that €25 flat
1

Rather request a quote?

Genuine Erich Jaeger 211009 — view the Erich Jaeger article page

Request quoteCatalogue

Cross-reference numbers

Cross-reference numbers

Use these manufacturer, distributor and OE numbers for identification. ConnectorRoute remains the supplier and validates fit before quoting.

Reference sourceReference numbers
AEBI20-0229911-3
AEBI (OE)20-0229911-3
ATLAS COPCO1635145
AUGER52521
BOSCH0 352 171 001
CLAAS605 006 008
CLAAS (OE)605 006 008
DAF0703748 703748 0703748 703748
DAF (OE)0703748 703748
DEMAG32408440
DEMAG (OE)32408440
DOLL8179041
DOLL (OE)8179041
DT Spare Parts4.60115 5.77011
DURITE0-477-16
ERICH JAEGER211009
ERMAX090 257 715
FAUN1041 702 99701041702 1041 702 99701041702
FAUN (OE)1041 702 99701041702
FEBI BILSTEIN07342 171808 07342 171808
GOLDHOFER153852
GOLDHOFER (OE)153852 0078 2692 7826 92
HC-Cargo180220
HELLA8JA 003 831-001
HERTH+BUSS ELPARTS51305587 51305585 51305585/77
HERTH+BUSS HEAVYPART51305587
IVECO0078 2692 7826 92 0078 2692 7826 92
JAEGER211009 211035 610010 73400003 8 003831001 211009 211035 610010 73400003 8ja003831001
JOKON41.1001.100
KAMAG (OE)1958
KRAMER561183
KRAMER (OE)561183
KRONE0924578/0 500924578 0924578/0 500924578
KRONE (OE)0924578/0 500924578
KÖGEL1958 6611582 6611582
KÖGEL (OE)1958 6611582
LANGENDORF1134645 B17-0139-1
LANGENDORF (OE)B17-0139-1 1134645
LIEBHERR104007002 6 050 047 01 6 050 060 08 104007002 6 050 047 01 6 050 060 08
LINDNER3204041
LINDNER (OE)3204041
MAN81 25435 008 6 81 25435 0199 81 25435 008 6 81 25435 0199
MAN (OE)81 25435 008 6 81 25435 0199 A 004 545 21 28 004 545 21 28 4.60115 6818310
MANITOUNR1038
MENBER S005909.00
MERCEDES-BENZ004 545 21 28 4.60115 6818310 A 004 545 21 28 004 545 21 28 4.60115 6818310 A 004 545 21 28
MONARK090157715
O&K8412628
PAUS529395
PE Automotive000.316-00A 000.122-00A
REISCH5003021
REISCH (OE)5003021
RENDERS99710103
RENDERS (OE)99710103
SAMPA095.016
SCANIA0 179 530 1 912 025 17 831 001 179 530 20 223 816 0 179 530 1 912 025 17 831 001 179 530 20 223 816
SCANIA (OE)0 179 530 1 912 025 17 831 001 179 530 20 223 816
SCHMITZ CARGOBULL002929 007 189 1-FZELEK0028 2929 7189 002929 007 189 1-FZELEK0028
SCHMITZ CARGOBULL (OE)002929 007 189 1-FZELEK0028 2929 7189
SCHWARZMÜLLER10911
SCHWARZMÜLLER (OE)10911
SISU186-510-0132
SISU (OE)186-510-0132
SOMMER2800079001
SOMMER (OE)2800079001
SPIERINGS415221
SPIERINGS (OE)415221
ST-TEMPLIN01.020.7200.090 T 7200.09
TEREX1635145 32408440 1635145 32408440
TEREX (OE)1635145 32408440
TRUCKLIGHTPL-N07-PLA
TRUCKTEC AUTOMOTIVE90.03.004
WÜRTH0555 305 587
menbaa100736

Technical data

Technical data

ConnectorRoute
CR-PS-000120
EAN
4026736036065
Product group
plug
Number of contacts
7-pin
Voltage
24 V
Load capacity at 24V
16 A (1,5 mm2), 25 A (2,5 mm2)
DIN / ISO
1185 N-Typ
Material
aluminium
Mounting method
screw connection
Supplementary info
with strain relief
Connection / terminals
with kabelschroefkoppeling

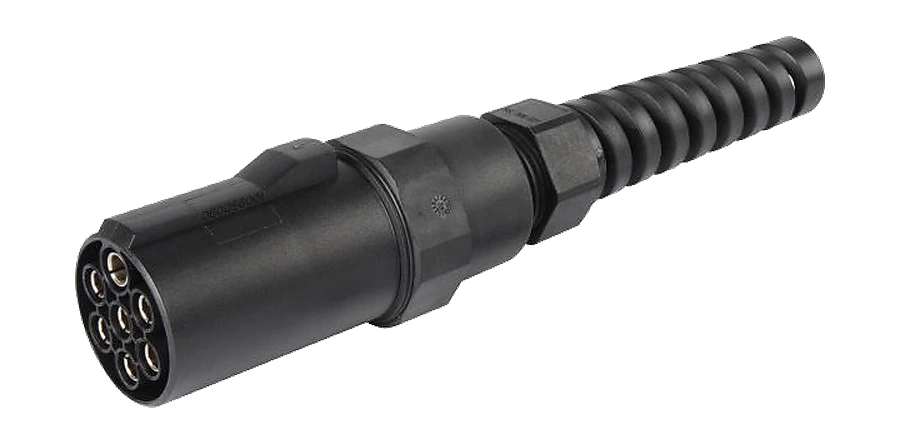

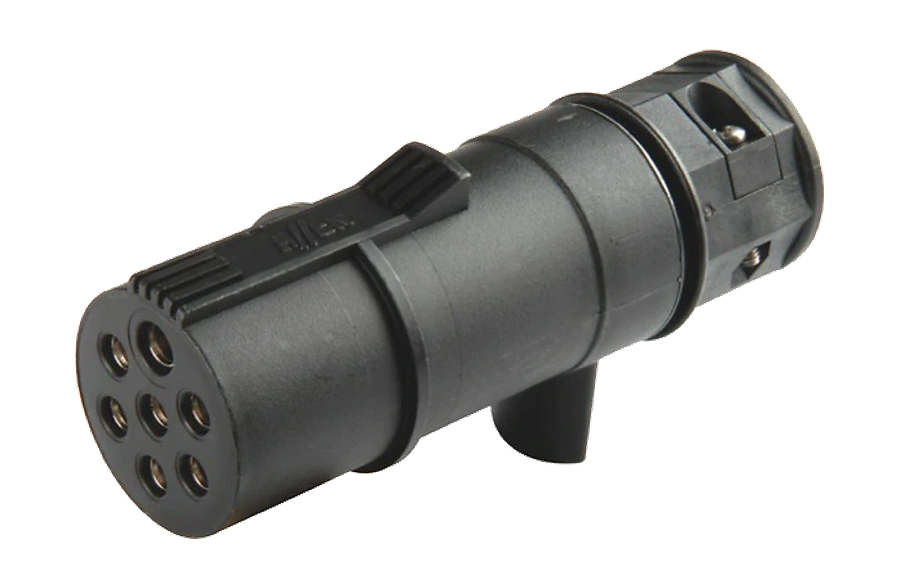

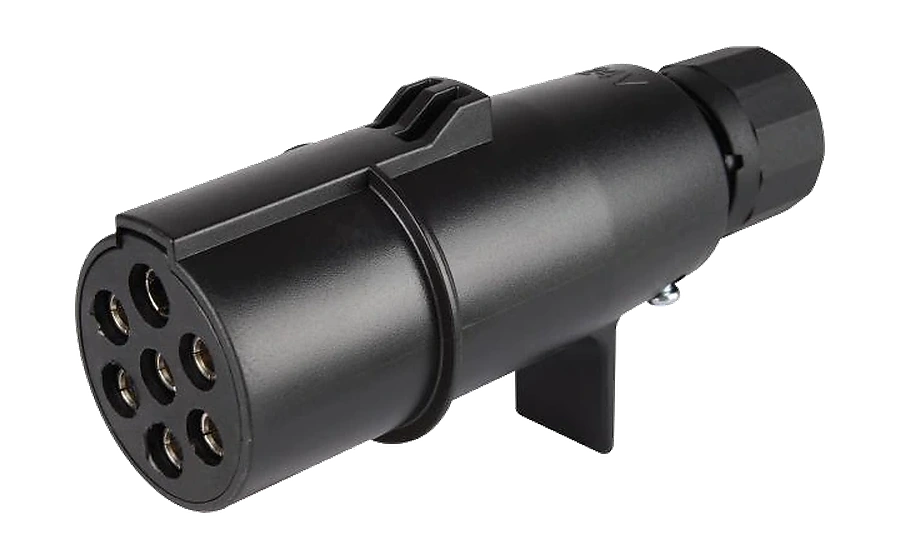

Related products
