ConnectorRoute article CR-PS-000112

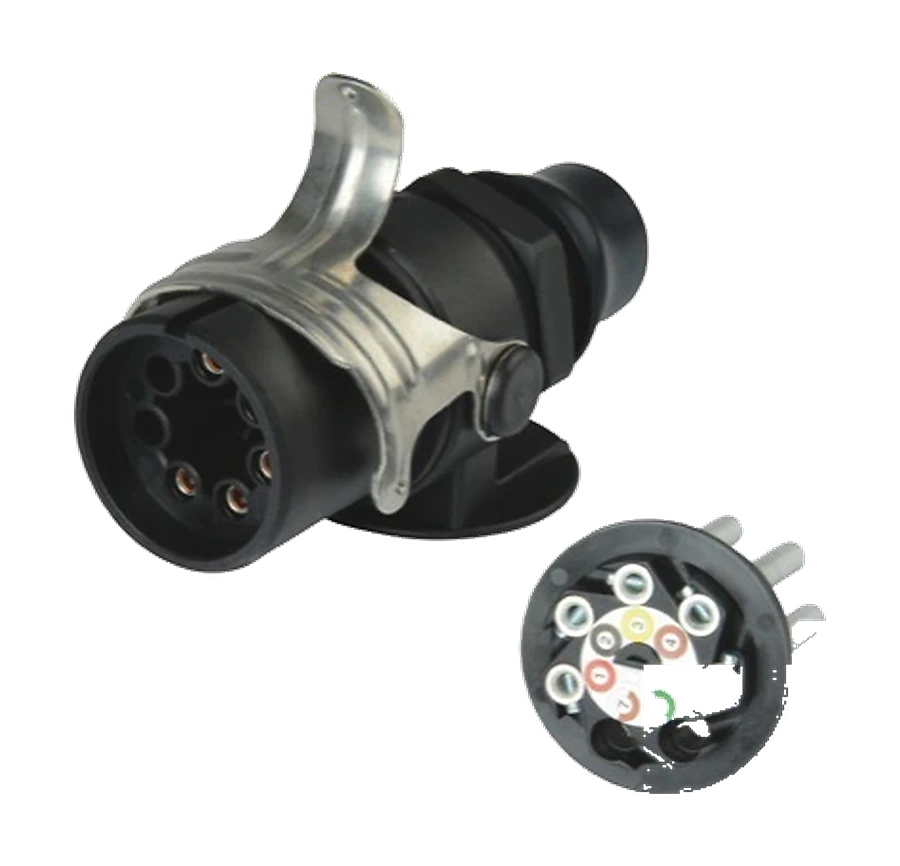

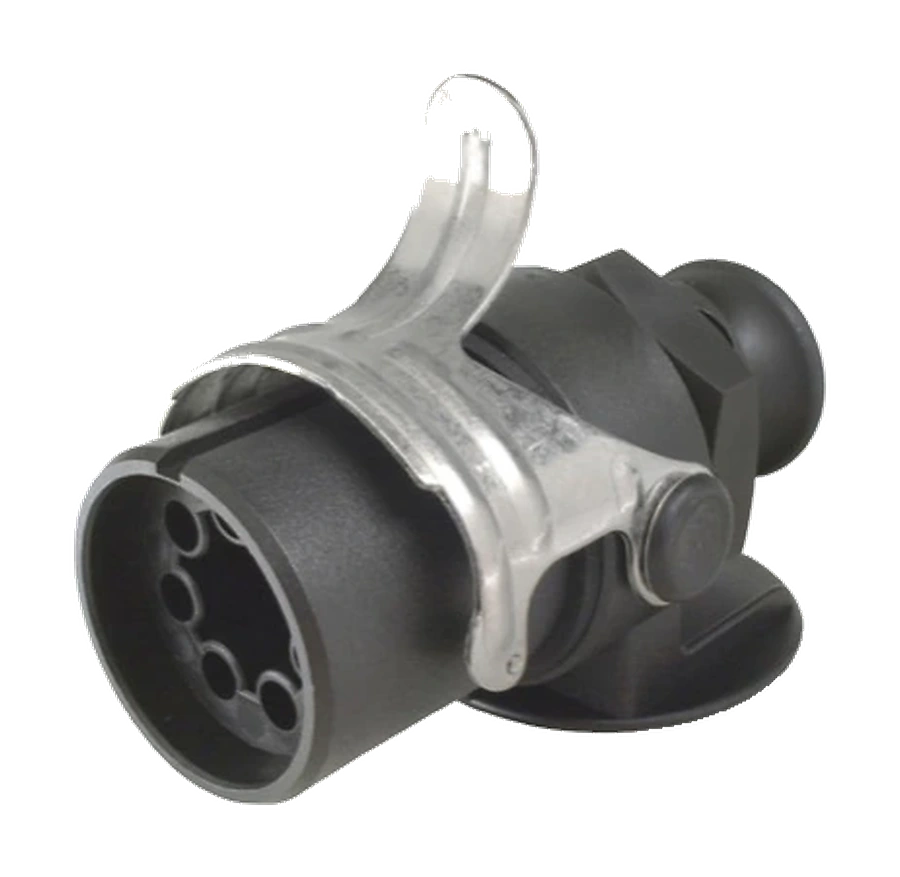

5-pole 24V DIN/ISO 7638-1 plug
Plug
ConnectorRoute supplies this plug as a B2B vehicle-electrical component. Selection is based on 7638-1, 24V and 5P, with linked cross-reference numbers for procurement and engineering checks.
7638-124V5PIP 69
ConnectorRoute price€12.00
Public benchmark€41.95
Lead timewithin 1 week
No minimum order value0
Calculated from net purchase basis
Cross-reference numbers
Cross-reference numbers
Use these manufacturer, distributor and OE references for identification. ConnectorRoute remains the supplier and validates fit before quoting.
Brand / reference source
Reference numbers
HERTH+BUSS ELPARTS
51305555
HELLA
8JA 007 644-051
ST-TEMPLIN
01.020.7201.071
Technical data
Technical data
- ConnectorRoute article
- CR-PS-000112
- EAN
- 4026736086305
- Number of contacts
- 5-pole
- Supplementary article / supplementary information
- with adereindhuls
- Supplementary article / supplementary info 2
- with strain relief, with trumpet cap, with mantelafdichting
- Protection rating [IP code]
- IP 69
- DIN / ISO
- 7638-1
- Kabeldiameter to [mm]
- 14 mm
- Kabeldiameter from [mm]
- 9 mm
- Approval type
- ADR/GGVS tested
- Brake / driving dynamics
- voor voertuigen with ABS
- Voltage (Volt)
- 24 V
- Connector type
- Schroefverbinding
- Conductor cross-section [mm²]
- 3 x 1,5 mm²
- Usage numbers
- ABS
- Voltage (V)
- 24 V
- Protection rating
- IP 69
- Conductor cross-section
- 3 x 1,5 mm², 2 x 6,0 mm²
- Cable diameter from
- 9 mm, to 14 mm
