View product
ConnectorRoute article CR-PS-000095

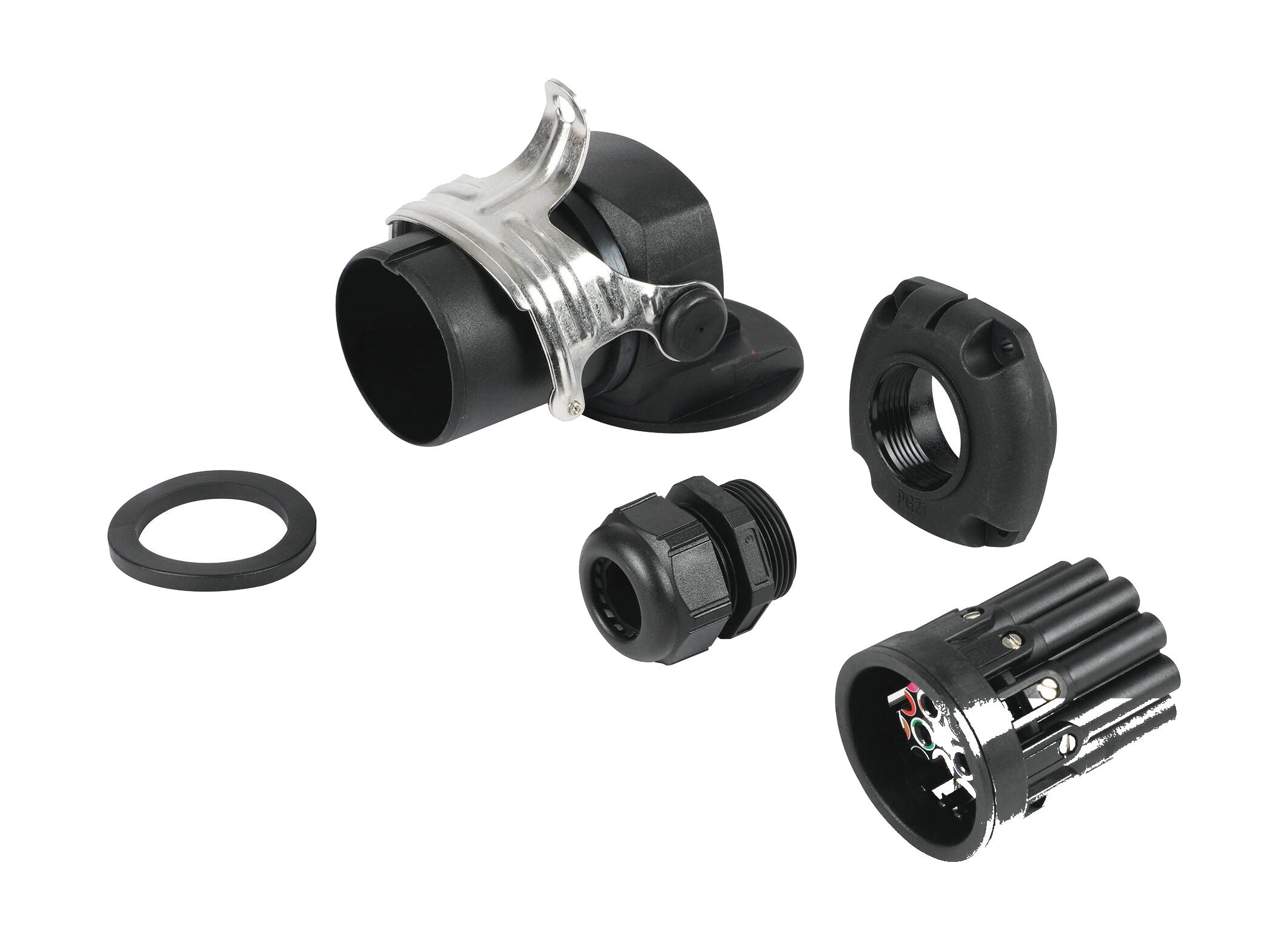

15-pole 24V DIN/ISO 12098 plug
Plug
ConnectorRoute supplies this plug as a B2B vehicle-electrical component. Selection is based on 12098, 24V and 15P, with linked cross-reference numbers for procurement and engineering checks.
1209824V15PIP 69
ConnectorRoute price€8.80
Public benchmark€21.45
Lead timewithin 1 week
No minimum order value0
Calculated from net purchase basis
Cross-reference numbers
Cross-reference numbers
Use these manufacturer, distributor and OE references for identification. ConnectorRoute remains the supplier and validates fit before quoting.
Brand / reference source
Reference numbers
HERTH+BUSS ELPARTS
51305269
FEBI BILSTEIN
171819171820
HELLA
8JA 007 241-021
Erich Jaeger
241010
OE
1384312
Technical data
Technical data
- ConnectorRoute article
- CR-PS-000095
- EAN
- 4026736490706
- Number of contacts
- 15-pole
- Protection rating [IP code]
- IP 69
- DIN / ISO
- 12098
- Kabeldiameter to [mm]
- 18 mm
- Kabeldiameter from [mm]
- 12 mm
- Approval type
- ADR/GGVS tested
- Voltage (Volt)
- 24 V
- Connector type
- Schroefverbinding
- Conductor cross-section [mm²]
- 12 x 1,5 mm²
- Voltage (V)
- 24 V
- Protection rating
- IP 69
- Cable diameter from
- 12 mm, to 18 mm
- Conductor cross-section
- 12 x 1,5 mm², 3 x 2,5 mm²
