Erich Jaeger 711217Genuine Erich Jaeger

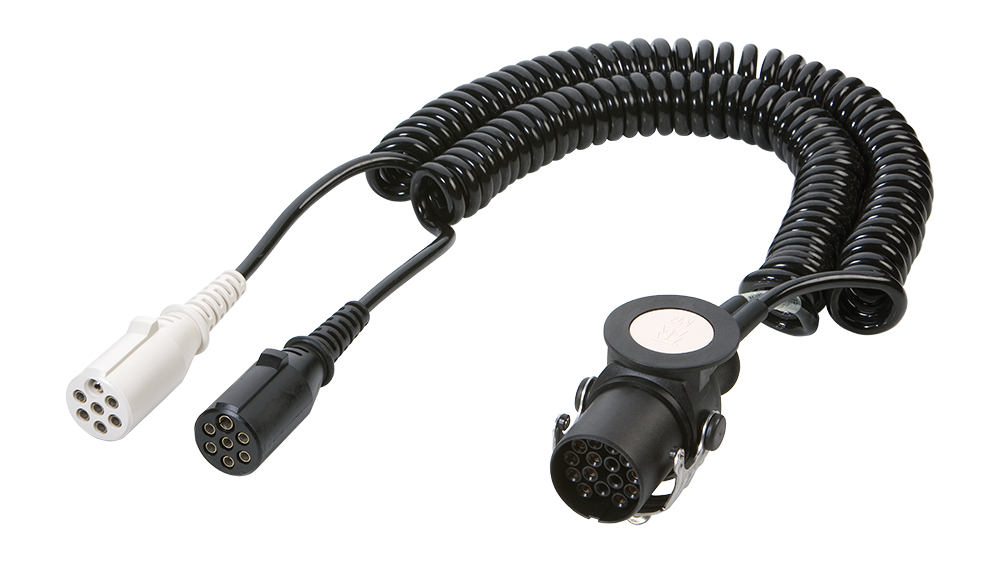

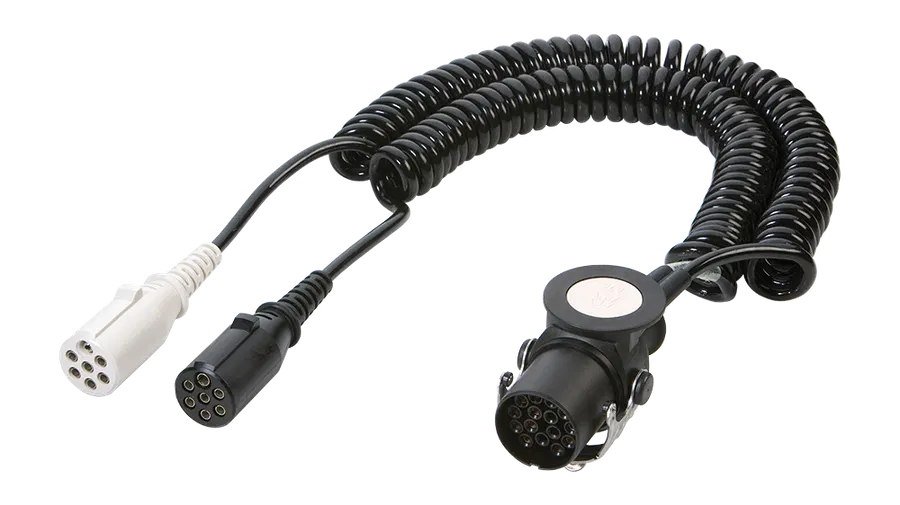

Adapter coil - with 15P/24V plug (ISO 12098) and 2x 7P/24V composite plugs (ISO 1185 + ISO 3731)

Price on request

Lead time: within 1 week

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardISO 12098, ISO 1185 - Type N, ISO 3731 - Type S

Voltage24V

Poles7P, 15P

Categoryadapter

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplier	Reference numbers
DAF	`1346 218`
Daimler	`000 545 40 84`
Europart	`4830711217`
Herth & Buss	`51276689`

Product context

Product description and application

What does 711217 do?

Erich Jaeger 711217 is Adapter coil - with 15P/24V plug (ISO 12098) and 2x 7P/24V composite plugs (ISO 1185 + ISO 3731). In practice this adapter is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. ISO 12098, ISO 1185 - Type N, ISO 3731 - Type S and 24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Contact allocation: diagram 2, Working length [in m]: 3, Max. working length [in m]: 3,00, Max. extension length [in m]: 4,50, Packaging: PE bag, Description: with 15P/24V plug (ISO 12098) and 2x 7P/24V composite plugs (ISO 1185 + ISO 3731). These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 711217 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

Where possible, combine related system parts in one order: 141053 15P/24V Socket (ISO 12098 ADR), 241010 15P/24V Plug (ISO 12098 ADR), 541128 15P/24V supply cable - with supplementary 15P/24V socket (ISO 12098) and 2x 8P connector, 641167 15P/24V Coil (ISO 12098 ADR), 141168 15P/24V «JAEGER Basic» Socket (ISO 12098 ADR). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number: 711217
Product family: adapter
Standard: ISO 12098, ISO 1185 - Type N, ISO 3731 - Type S
Voltage: 24V
Poles: 7P, 15P
Industry: commercial vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 711217 new and genuine, sourced directly from Erich Jaeger.

How is 711217 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Contact allocation: diagram 2
Working length [in m]: 3
Max. working length [in m]: 3,00
Max. extension length [in m]: 4,50
Packaging: PE bag
Description: with 15P/24V plug (ISO 12098) and 2x 7P/24V composite plugs (ISO 1185 + ISO 3731)
Product group: adapter
Standard: ISO 12098, ISO 1185 - Type N, ISO 3731 - Type S
Industry: commercial vehicles
Temperature resistance [in °C]: -40.0 - 125.0
Voltage [in V]: 24
Special feature: all wires allocated in 7P plug
Cable color: black
Housing color: black/white
Housing material: reinforced composite
Material of cable: PUR
Cable outlet: molded
Mounting of cable and socket/plug: molded
No. of connected plugs: 3
No. of connected sockets: 0
No. of poles: 07, 15
Outer coil diameter [in mm]: 35,00
