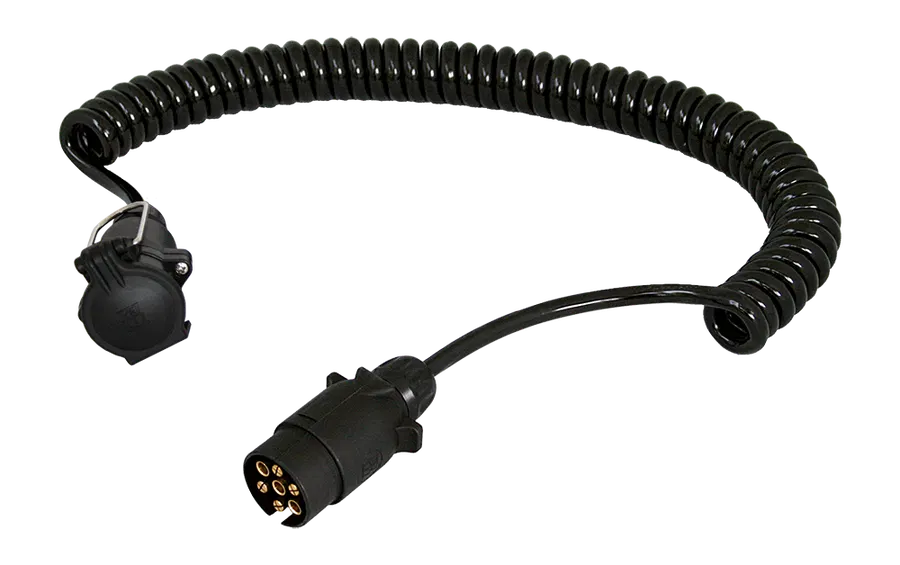

7P/12V Coil (ISO 1724 - Type N) - with 7P/12V plug (ISO 1724) and 7P/12V coupler (ISO 1724)
Erich Jaeger 701020Genuine Erich Jaeger

7P/12V Coil (ISO 1724 - Type N) - with 7P/12V plug (ISO 1724) and 7P/12V coupler (ISO 1724)

Price on request

Lead time: within 1 week
Request quote

Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardISO 1724 - Type N
Voltage12V
Poles7P
Categorycoil cable

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplierReference numbers
Herth & Buss51276546

Product context

Product description and application

What does 701020 do?

Erich Jaeger 701020 is 7P/12V Coil (ISO 1724 - Type N) - with 7P/12V plug (ISO 1724) and 7P/12V coupler (ISO 1724). In practice this coil cable is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. ISO 1724 - Type N and 12V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Max. working length [in m]: 3,00, Max. extension length [in m]: 4,50, Wire cross-sectional area: 6x 1.0mm² + 1x 1.5mm², Protection: IP 44, Type of seal: sealing plug, Description: with 7P/12V plug (ISO 1724) and 7P/12V coupler (ISO 1724). These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 701020 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

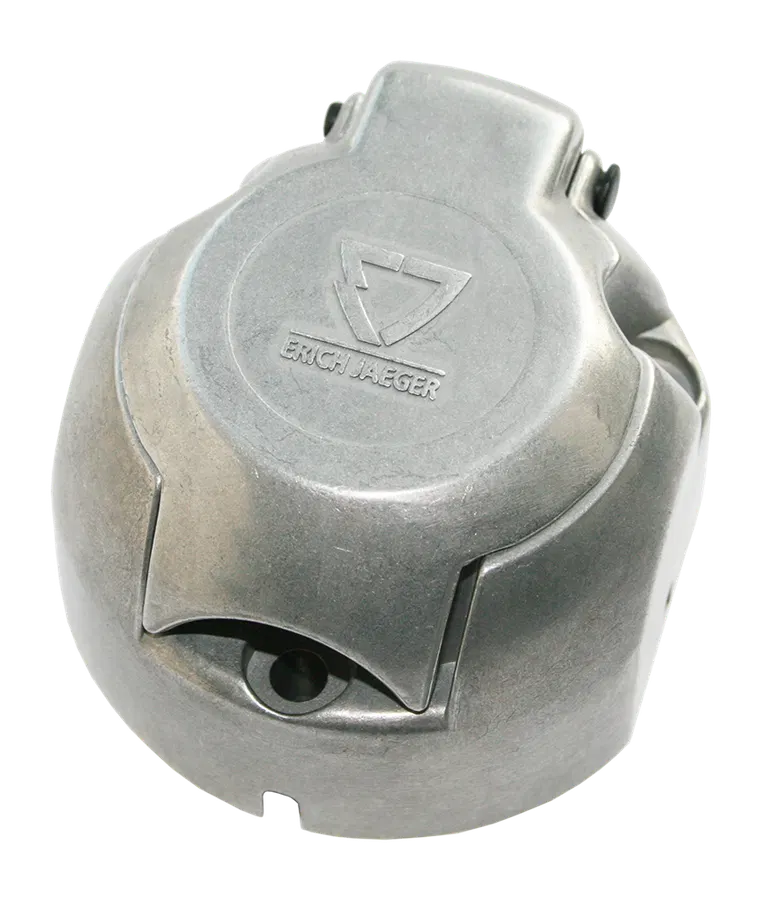

Where possible, combine related system parts in one order: 101100 7P/12V Socket (ISO 1724 - Type N), 201212 7P/12V Plug (ISO 1724 - Type N), 311164 Economy "Shorty" mini short adapter - from vehicle (13P/12V) to trailer (7P/12V), 101285 7P/12V Socket (ISO 1724 - Type N), 201005 7P/12V Plug (ISO 1724 - Type N). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
701020
Product family
coil cable
Standard
ISO 1724 - Type N
Voltage
12V
Poles
7P
Industry
agriculture, cars

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 701020 new and genuine, sourced directly from Erich Jaeger.

How is 701020 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Max. working length [in m]
3,00
Max. extension length [in m]
4,50
Wire cross-sectional area
6x 1.0mm² + 1x 1.5mm²
Protection
IP 44
Type of seal
sealing plug
Description
with 7P/12V plug (ISO 1724) and 7P/12V coupler (ISO 1724)
Product group
coil cable
Standard
ISO 1724 - Type N
Industry
agriculture, cars
Temperature resistance [in °C]
-40.0 - 125.0
Voltage [in V]
12
Packaging
without packaging
Design/Version
folded version
Cable color
black
Cover material
reinforced composite
Housing color
black
Housing material
reinforced composite
Material of cable
PUR
Cable outlet
cap nut
No. of connected plugs
1
No. of connected sockets
1
No. of poles
07
