Erich Jaeger 652803Genuine Erich Jaeger

2P/6-24V Coil (ISO 4165 - ADR) for the connection of power supply

Price on request

Lead time: within 1 week

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardISO 4165

Voltage6-24V

Poles2P

Categorycoil cable

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplier	Reference numbers
Europart	`4830652803`
Hella	`8KA 118 405-007`

Product context

Product description and application

What does 652803 do?

Erich Jaeger 652803 is 2P/6-24V Coil (ISO 4165 - ADR) for the connection of power supply. In practice this coil cable is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. ISO 4165 and 6-24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Max. working length [in m]: 5, Wire cross-sectional area: 2x 0.5mm², Contact termination: crimp contact, solder contact, No. of seal outlets: double, Type of seal: sealing plug, Standard: ISO 4165. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 652803 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

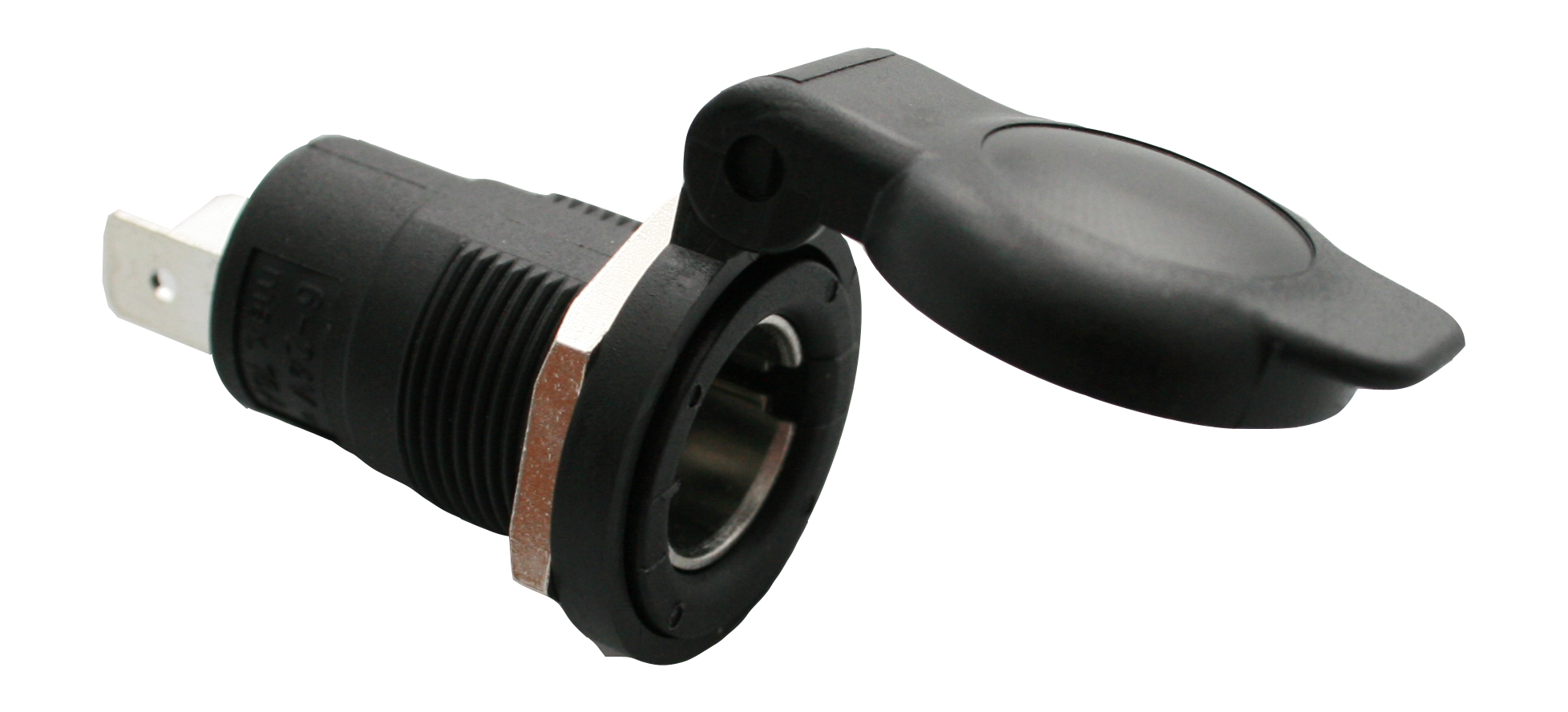

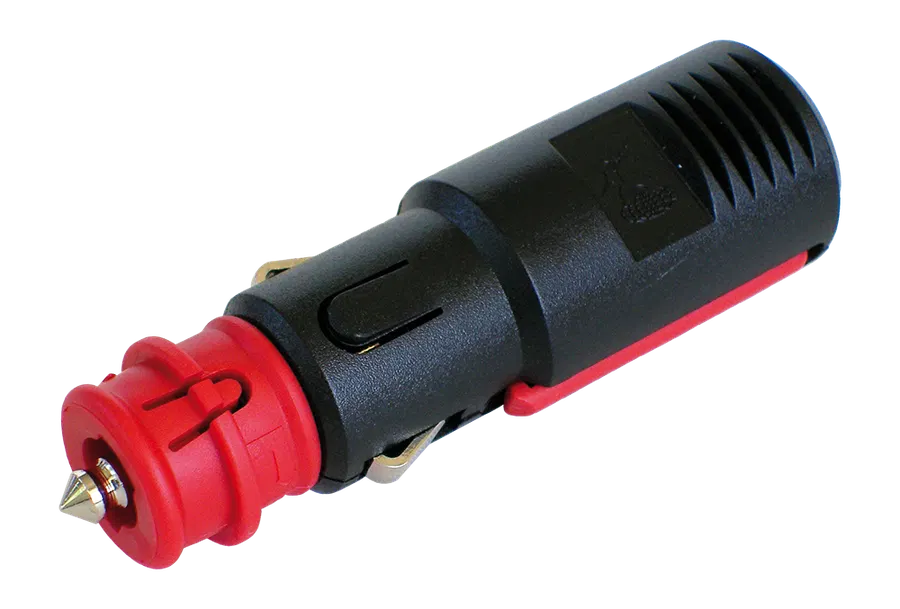

Where possible, combine related system parts in one order: 151021 2P/6-24V(16A) (hand lamp-) Socket (ISO 4165), 251003 2P/6-24V(8A) (multi-purpose-) Plug (ISO 4165, SAE J563), 311181 2P/24V(300A) Adapter (STANAG 4074 / MIL-PRF-62122, VG 96917), 151060 2P/6-24V(16A) (hand lamp-) Socket (ISO 4165), 251002 2P/6-24V(16A) (hand lamp-) Plug (ISO 4165). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number: 652803
Product family: coil cable
Standard: ISO 4165
Voltage: 6-24V
Poles: 2P
Industry: agriculture

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 652803 new and genuine, sourced directly from Erich Jaeger.

How is 652803 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Max. working length [in m]: 5
Wire cross-sectional area: 2x 0.5mm²
Contact termination: crimp contact, solder contact
No. of seal outlets: double
Type of seal: sealing plug
Product group: coil cable
Standard: ISO 4165
Industry: agriculture
Peak current / short-term load [in A]: 245
Rated current / permanent load [in A]: 8
Temperature resistance [in °C]: -40.0 - 85.0
Voltage [in V]: 6-24
Packaging: without packaging
Special feature: with plug 251002
Cable color: black
Contact insert color: black
Contact surface: standard (CuZn)
Contact version: contact pin
No. of connected plugs: 1
No. of poles: 02
Outlet open or closed: n.a.
Addition to standard: ADR
Contact: for max. wire cross section [in mm²]: 35,00
Max. extension length [in m]: 3,00
Outer coil diameter [in mm]: 25,00
Stripping length [in mm]: 75,00
