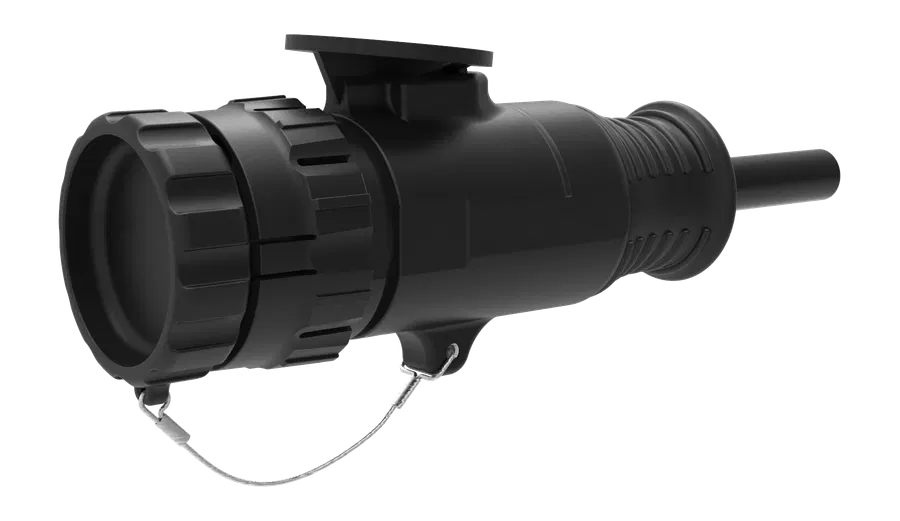

9P/12V «ISOBUS (IBIC)» Cable (ISO 11783-2) - Implement Connector
Erich Jaeger 652222Genuine Erich Jaeger

9P/12V «ISOBUS (IBIC)» Cable (ISO 11783-2) - Implement Connector

Price on request

Lead time: within 1 week
Request quote

Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardISO 11783-2
Voltage12V
Poles9P
Categorycable

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplierReference numbers
Fricke5060010657

Product context

Product description and application

What does 652222 do?

Erich Jaeger 652222 is 9P/12V «ISOBUS (IBIC)» Cable (ISO 11783-2) - Implement Connector. In practice this cable is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. ISO 11783-2 and 12V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Cable length [in m]: 10,00, Wire cross-sectional area: 10mm², Packaging: PE bag, Branding: ERICH JAEGER, Contact insert color: black, Description: Implement Connector. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 652222 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

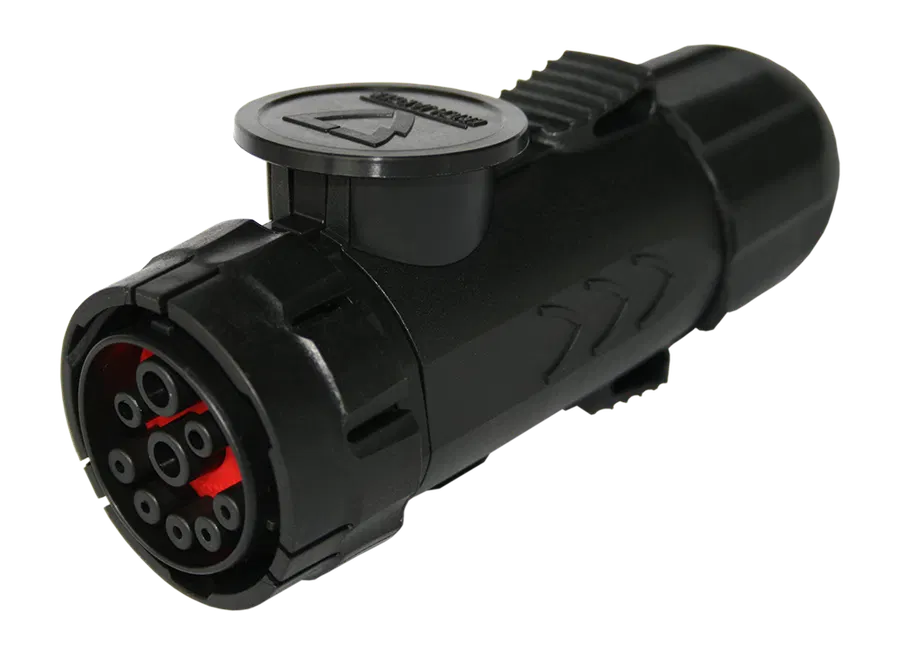

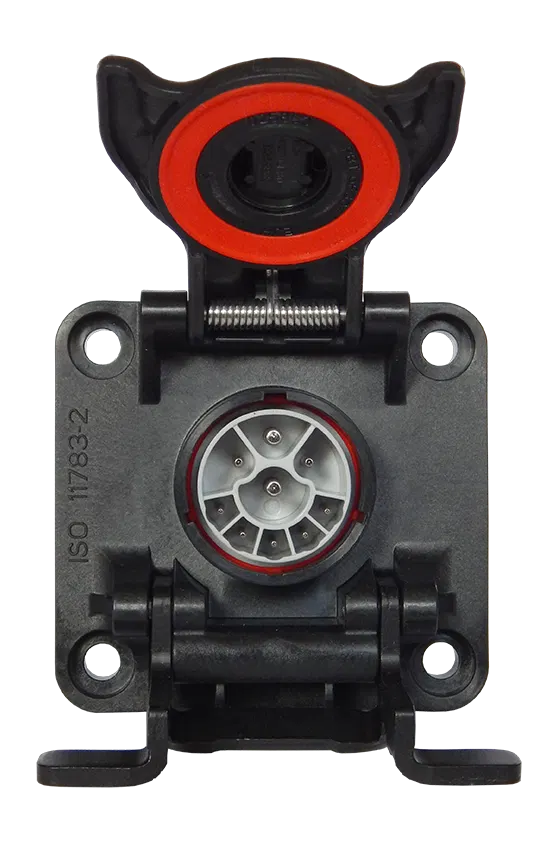

Where possible, combine related system parts in one order: 151234 9P/12V «ISOBUS (IBBC) 150 Active» Socket (ISO 11783-2) - Breakaway Connector - Active, 251271 9P/12V «ISOBUS (IBIC)» Plug (ISO 11783-2) - Implement Connector, 151236 9P/12V «ISOBUS (IBBC) 150 Passive» Socket (ISO 11783-2) - Breakaway Connector - Passive, 251284 9P/12V «ISOBUS (IBIC)» Plug (ISO 11783-2) - Implement Connector, 382167 4P Plug ECU/Pass-Through - for ISOBUS socket (IBBC - Breakaway Connector), on tractor side. That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
652222
Product family
cable
Standard
ISO 11783-2
Voltage
12V
Poles
9P
Industry
agriculture

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 652222 new and genuine, sourced directly from Erich Jaeger.

How is 652222 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Cable length [in m]
10,00
Wire cross-sectional area
10mm²
Packaging
PE bag
Branding
ERICH JAEGER
Contact insert color
black
Description
Implement Connector
Product group
cable
Standard
ISO 11783-2
Industry
agriculture
Brand
ISOBUS (IBBP)
Voltage [in V]
12
Suitable for
sealing cap (part no. 037447)
Contact surface
nickel (Ni)
Housing color
black
Housing material
reinforced composite
Cable outlet
molded
Contact version
contact pin
No. of connected plugs
1
No. of connected sockets
0
No. of poles
09
Size of plug-in contacts
4x 0.5mm² + 2x 2.5mm² + 2x 10mm² (PWR)
