Erich Jaeger 652092Genuine Erich Jaeger

2P/24V(135A) Coil (VG 96927-12)

Price on request

Lead time: within 1 week

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardVG 96927-12

Voltage24V

Poles2P

Categorycoil cable

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplier	Reference numbers
DAF	`2172545`
Europart	`4830652092`
Febi	`171805`
Hella	`8KA 010 807-001`
Herth & Buss	`51276507`
Hofmei	`600945624`
Reflexallen	`6.00945.624`
Scania	`2 271 149`
Volvo	`2 209 581 4`
Würth	`0997809011090 1`

Product context

Product description and application

What does 652092 do?

Erich Jaeger 652092 is 2P/24V(135A) Coil (VG 96927-12). In practice this coil cable is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. VG 96927-12 and 24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Max. working length [in m]: 4, Wire cross-sectional area: 2x 35.0mm², Contact termination: crimp contact, solder contact, Protection: IP 54, IP X4, IP X7, Packaging: PE bag, Standard: VG 96927-12. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 652092 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

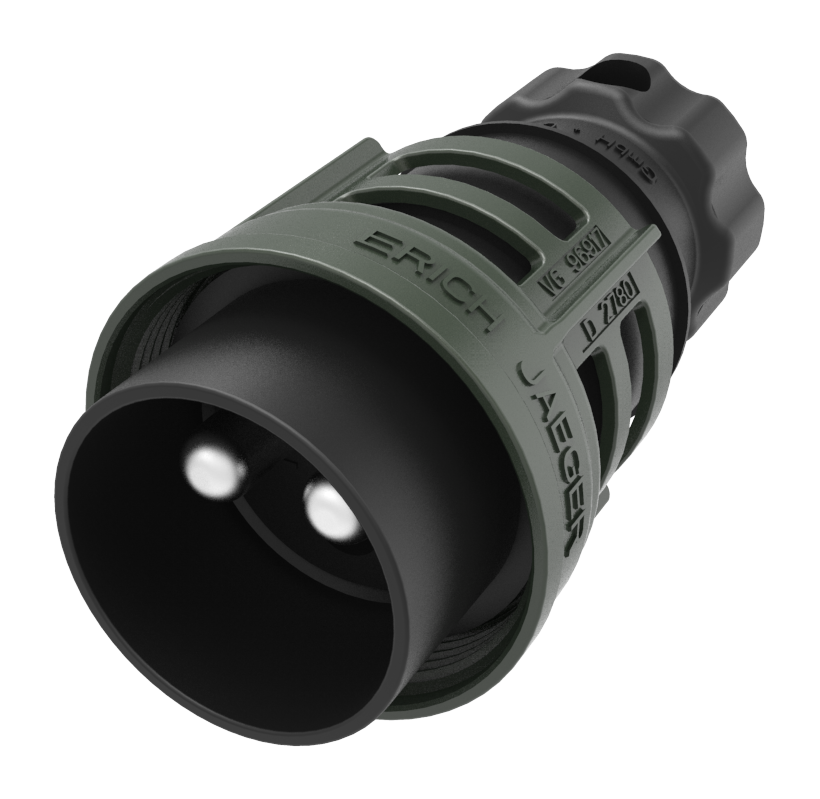

Where possible, combine related system parts in one order: 151211 2P/24V(168A) Socket (VG 96917 A002), 251097 2P/24V(135A) Plug (VG 96917 E001A), 311181 2P/24V(300A) Adapter (STANAG 4074 / MIL-PRF-62122, VG 96917), 151212 2P/24V Socket (VG 96917 A001), 251098 2P/24V(168A) Plug (VG 96917). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number: 652092
Product family: coil cable
Standard: VG 96927-12
Voltage: 24V
Poles: 2P
Industry: defense vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 652092 new and genuine, sourced directly from Erich Jaeger.

How is 652092 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Max. working length [in m]: 4
Wire cross-sectional area: 2x 35.0mm²
Contact termination: crimp contact, solder contact
Protection: IP 54, IP X4, IP X7
Packaging: PE bag
Product group: coil cable
Standard: VG 96927-12
Industry: defense vehicles
Peak current / short-term load [in A]: 245
Rated current / permanent load [in A]: 135
Temperature resistance [in °C]: -40.0 - 80.0
Voltage [in V]: 24
Special feature: nested cable, with metal screw ring (bronze green)
Type of seal: sealing plug
Cable color: black/red
Contact insert color: black
Contact surface: silver (Ag)
Housing color: bronze green (RAL 6031-F9)
Housing material: break-proof metal
Cable outlet: cap nut
Contact version: contact pin
No. of connected plugs: 2
No. of connected sockets: 0
No. of poles: 02
No. of seal outlets: double
Contact: for max. wire cross section [in mm²]: 35,00
Max. extension length [in m]: 4,00
Outer coil diameter [in mm]: 70,00
