Erich Jaeger 651596Genuine Erich Jaeger

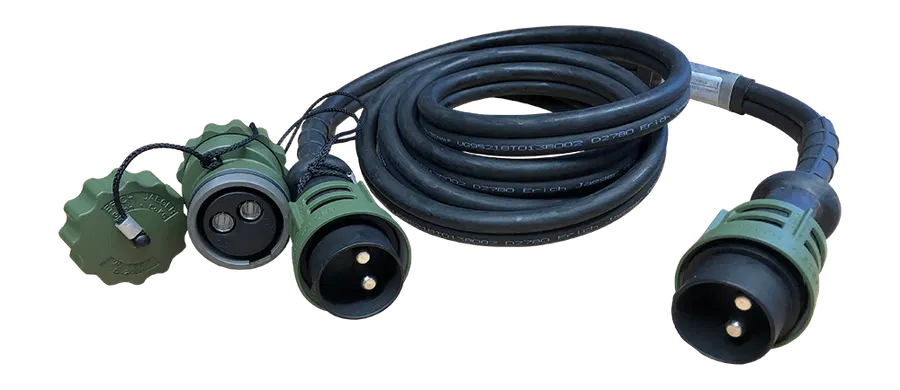

2P/24V(135A) Cable (VG 96927-12 A) - - 35mm² twin cable with 2x 2P/24V plugs with screw ring (according to VG 96917) and 1x 2P/24V coupler witg screw cap (according to VG 96917 D001)

Price on request

Lead time: within 1 week

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardVG 96927-12

Voltage24V

Poles2P

Categorycable

Product context

Product description and application

What does 651596 do?

Erich Jaeger 651596 is 2P/24V(135A) Cable (VG 96927-12 A) - - 35mm² twin cable with 2x 2P/24V plugs with screw ring (according to VG 96917) and 1x 2P/24V coupler witg screw cap (according to VG 96917 D001). In practice this cable is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. VG 96927-12 and 24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Cable length [in m]: 10,00, Wire cross-sectional area: 2x 35mm², Protection: IP 54, IP X4, IP X7, Housing color: bronze green (RAL 6031-F9), Housing material: break-proof metal, Description: - 35mm² twin cable with 2x 2P/24V plugs with screw ring (according to VG 96917) and 1x 2P/24V coupler witg screw cap (according to VG 96917 D001). These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 651596 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

Where possible, combine related system parts in one order: 151211 2P/24V(168A) Socket (VG 96917 A002), 251097 2P/24V(135A) Plug (VG 96917 E001A), 311181 2P/24V(300A) Adapter (STANAG 4074 / MIL-PRF-62122, VG 96917), 151212 2P/24V Socket (VG 96917 A001), 251098 2P/24V(168A) Plug (VG 96917). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number: 651596
Product family: cable
Standard: VG 96927-12
Voltage: 24V
Poles: 2P
Industry: defense vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 651596 new and genuine, sourced directly from Erich Jaeger.

How is 651596 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Cable length [in m]: 10,00
Wire cross-sectional area: 2x 35mm²
Protection: IP 54, IP X4, IP X7
Housing color: bronze green (RAL 6031-F9)
Housing material: break-proof metal
Description: - 35mm² twin cable with 2x 2P/24V plugs with screw ring (according to VG 96917) and 1x 2P/24V coupler witg screw cap (according to VG 96917 D001)
Product group: cable
Standard: VG 96927-12
Industry: defense vehicles
Peak current / short-term load [in A]: 245
Rated current / permanent load [in A]: 135
Voltage [in V]: 24
NATO stock No.: 6150-12-325-0953
Packaging: retail bag
Cable color: black
Contact surface: silver (Ag)
Contact version: contact pin
No. of connected plugs: 2
No. of connected sockets: 0
No. of poles: 02
Addition to standard: A
