4P/6-24V Coil (DIN 72575)
Erich Jaeger 651022Genuine Erich Jaeger

4P/6-24V Coil (DIN 72575)

Price on request

Lead time: within 1 week
Request quote

Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardDIN 72575
Voltage6-24V
Poles4P
Categorycoil cable

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplierReference numbers
Hofmei2046651022
MAN81254116065

Product context

Product description and application

What does 651022 do?

Erich Jaeger 651022 is 4P/6-24V Coil (DIN 72575). In practice this coil cable is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. DIN 72575 and 6-24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Working length [in m]: 3, Max. working length [in m]: 3,00, Max. extension length [in m]: 4,50, Wire cross-sectional area: 3x 1.0mm² + 1x 1.5mm², Protection: IP X4, Standard: DIN 72575. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 651022 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

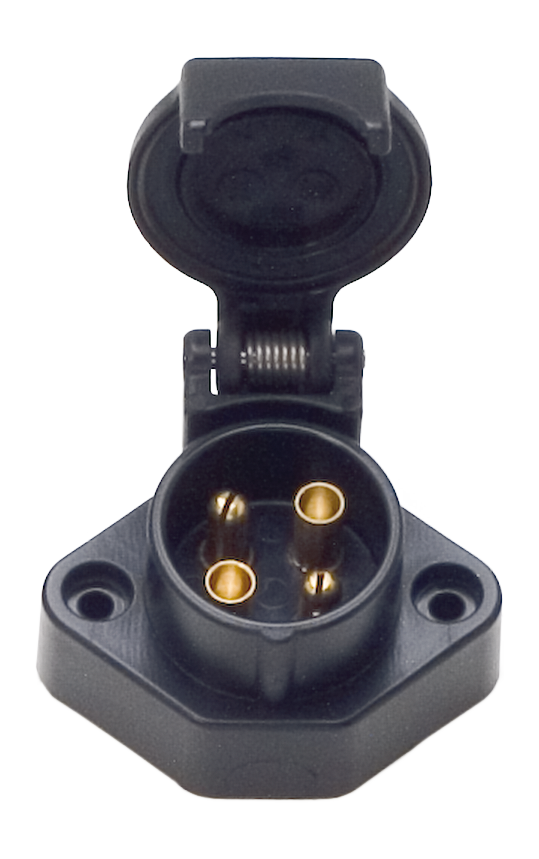

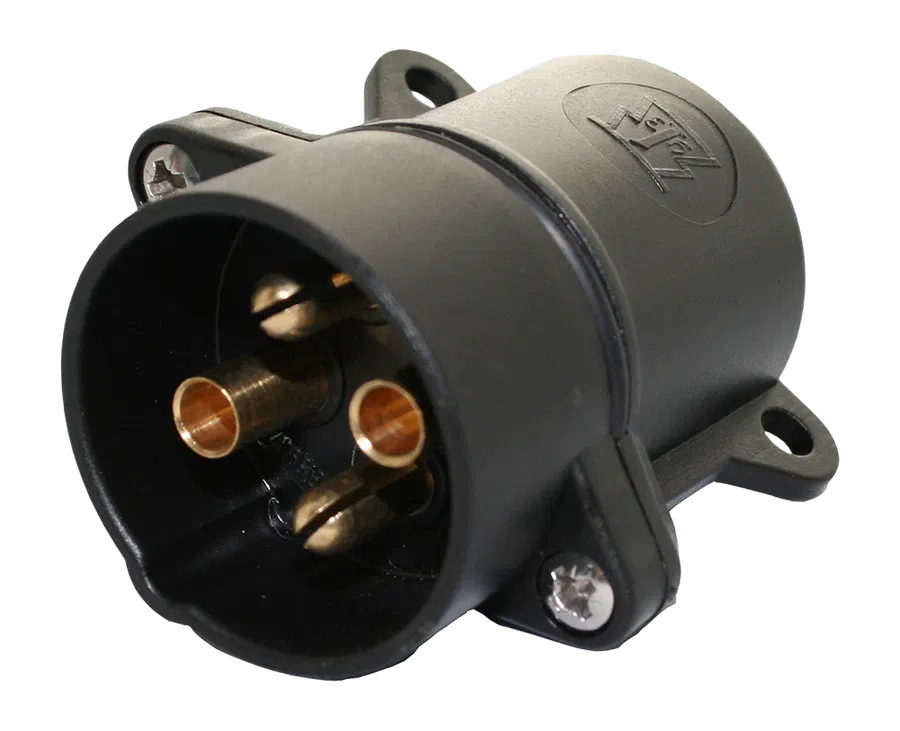

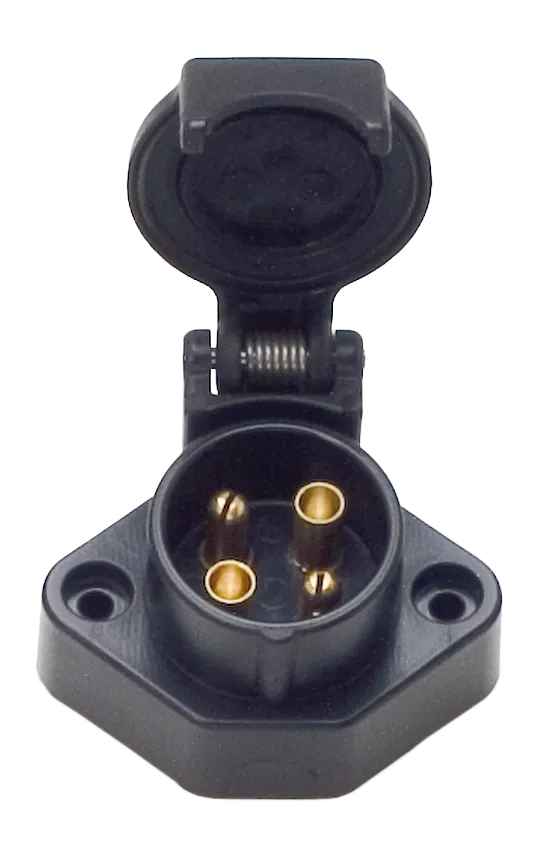

Where possible, combine related system parts in one order: 151035 4P/6-24V Socket (DIN 72575), 251011 4P/6-24V Plug (DIN 72575), 151049 4P/6-24V Socket (DIN 72575), 251010 4P/6-24V Plug (DIN 72575), 151036 4P/6-24V Socket (DIN 72575). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
651022
Product family
coil cable
Standard
DIN 72575
Voltage
6-24V
Poles
4P
Industry
agriculture

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 651022 new and genuine, sourced directly from Erich Jaeger.

How is 651022 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Working length [in m]
3
Max. working length [in m]
3,00
Max. extension length [in m]
4,50
Wire cross-sectional area
3x 1.0mm² + 1x 1.5mm²
Protection
IP X4
Product group
coil cable
Standard
DIN 72575
Industry
agriculture
Voltage [in V]
6-24
Packaging
without packaging
Branding
ERICH JAEGER
Type of seal
bending protection grommet
Cable color
black
Housing color
black
Housing material
reinforced composite
Material of cable
TPE
Cable outlet
bending protection grommet
No. of connected plugs
2
No. of connected sockets
0
No. of poles
04
Outer coil diameter [in mm]
70,00
