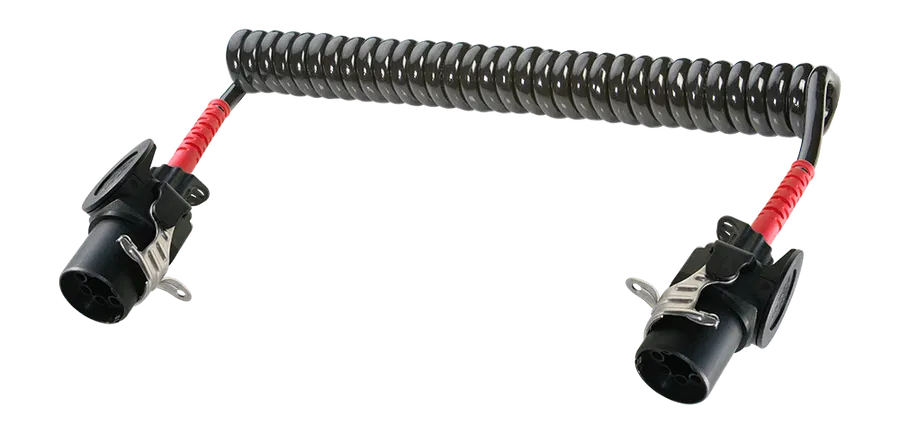

5P/24V «JAEGER Basic» Coil (ISO 7638-1 ABS, ADR)
Erich Jaeger 641325Genuine Erich Jaeger

5P/24V «JAEGER Basic» Coil (ISO 7638-1 ABS, ADR)

€43.07per piece · ex VAT

Sold per box of 8 pieces — €344.56 per box

Ships within 1 week
Free shipping from €500 · below that €25 flat
1

Rather request a quote? · Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardISO 7638-1
Voltage24V
Poles5P
Categorycoil cable

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplierReference numbers
DAF1286274
Fricke50751276635
Hella8KA 007 648-071
Herth & Buss51276635
Hofmei683301240
Littelfuse556770
Scania1383749
Würth051095051 061 1

Product context

Product description and application

What does 641325 do?

Erich Jaeger 641325 is 5P/24V «JAEGER Basic» Coil (ISO 7638-1 ABS, ADR). In practice this coil cable is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. ISO 7638-1 and 24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Max. working length [in m]: 3.5, Wire cross-sectional area: 3x 1.5mm² + 2x 4.0mm², Protection: IP 54, Packaging: without packaging, Outer coil diameter [in mm]: 50,00, Standard: ISO 7638-1. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 641325 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

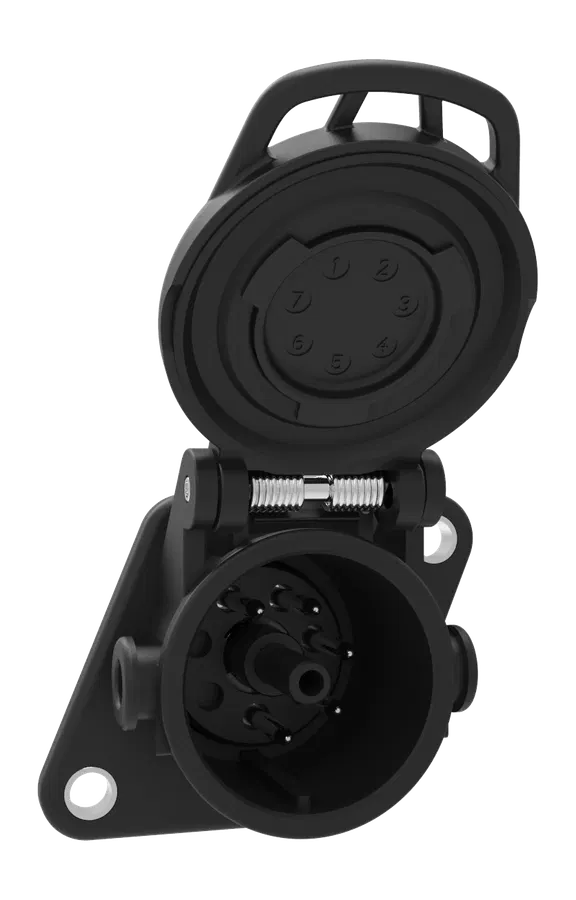

Where possible, combine related system parts in one order: 141170 5P/24V «JAEGER Basic» Socket (ISO 7638-1 ABS, ADR), 241070 7P/24V Plug (ISO 7638-1 ABS, EBS, ADR), 141142 5P/24V «JAEGER Basic» Socket (ISO 7638-1 ABS, ADR), 381303 7P/24V plug housing (ISO 7638-1 ABS, EBS, ADR), 141070 7P/24V Socket (ISO 7638-1 ABS, EBS, ADR). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
641325
Product family
coil cable
Standard
ISO 7638-1
Voltage
24V
Poles
5P
Industry
commercial vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 641325 new and genuine, sourced directly from Erich Jaeger.

How is 641325 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Max. working length [in m]
3.5
Wire cross-sectional area
3x 1.5mm² + 2x 4.0mm²
Protection
IP 54
Packaging
without packaging
Outer coil diameter [in mm]
50,00
Product group
coil cable
Standard
ISO 7638-1
Industry
commercial vehicles
Brand
JAEGER Basic
Temperature resistance [in °C]
-40.0 - 100.0
Voltage [in V]
24
Special feature
red bending protection, requirements similar to ISO 4141-4
Cable color
black
Contact insert color
black
Housing color
black
Housing material
reinforced composite
Material of cable
PUR
Cable outlet
bending protection grommet
No. of connected plugs
2
No. of connected sockets
0
No. of poles
05
Addition to standard
ABS, ADR
Max. extension length [in m]
3,50
