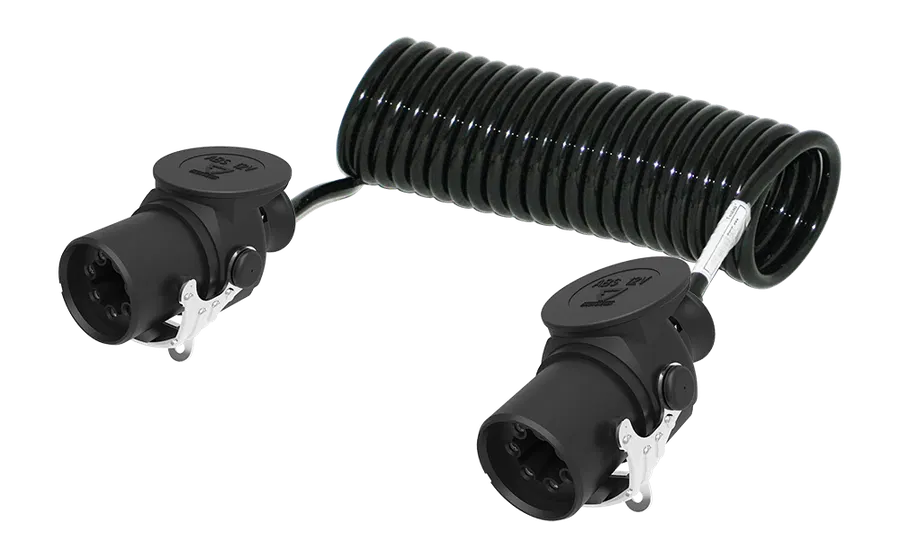

7P/12V Coil (ISO 7638-2 ABS, ADR)
Erich Jaeger 641149Genuine Erich Jaeger

7P/12V Coil (ISO 7638-2 ABS, ADR)

Price on request

Lead time: within 1 week
Request quote

Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardISO 7638-2
Voltage12V
Poles7P
Categorycoil cable

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplierReference numbers
Europart4830641149
Fricke507641149
Hofmei2833000006
Würth0997654877090 1

Product context

Product description and application

What does 641149 do?

Erich Jaeger 641149 is 7P/12V Coil (ISO 7638-2 ABS, ADR). In practice this coil cable is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. ISO 7638-2 and 12V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Working length [in m]: 3, Max. working length [in m]: 3,00, Max. extension length [in m]: 4,50, Wire cross-sectional area: 3x 1.5mm² + 2x 4.0mm², Protection: IP 54, Standard: ISO 7638-2. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 641149 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

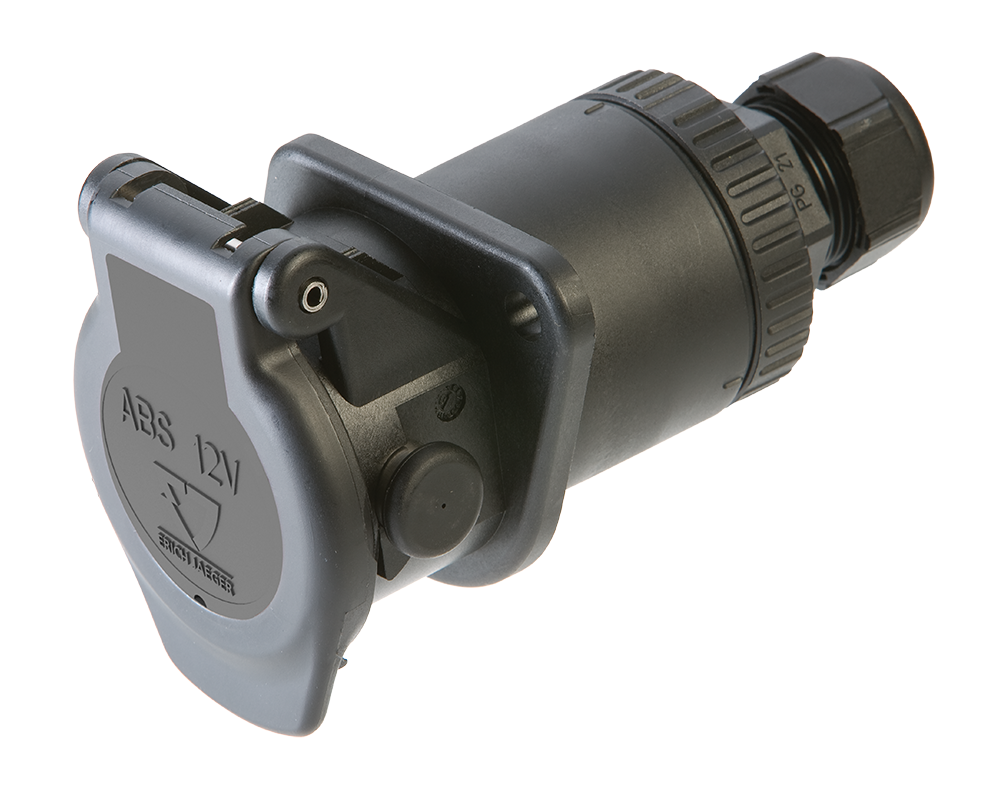

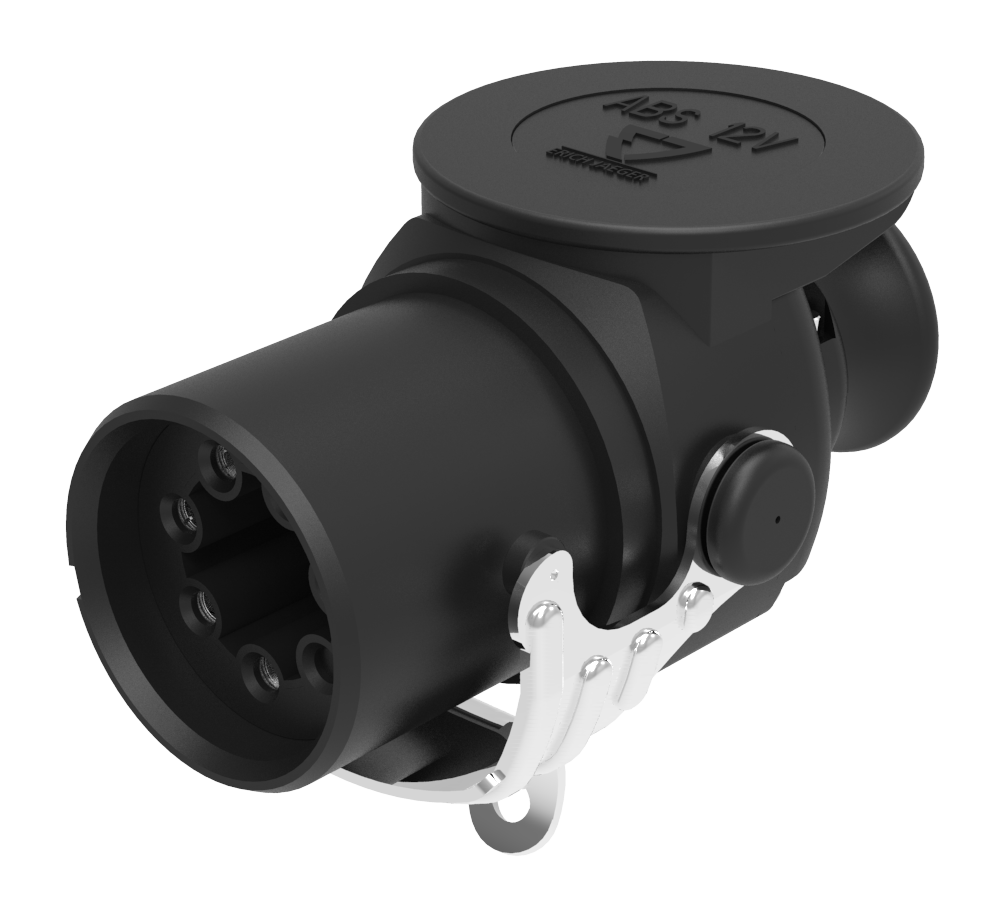

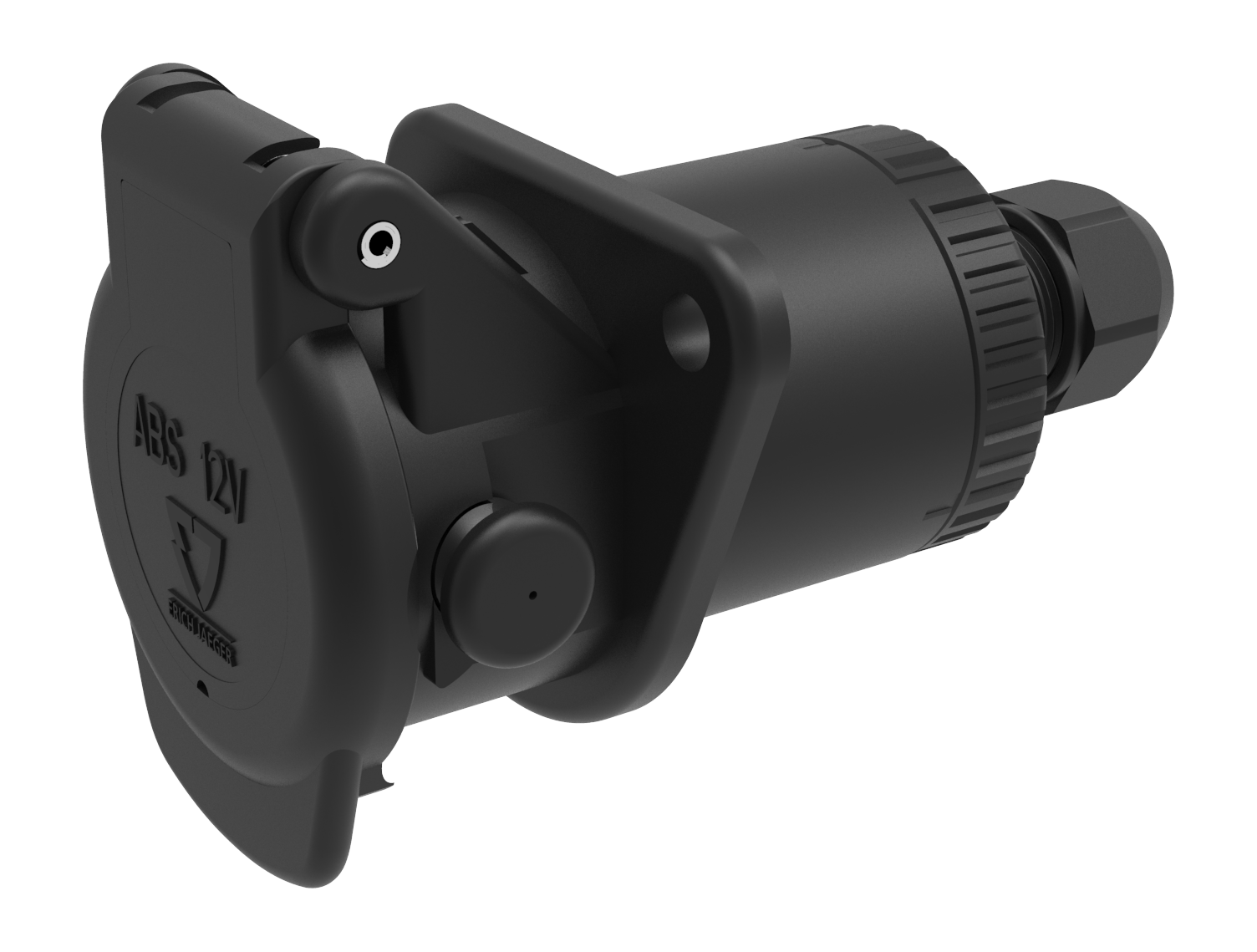

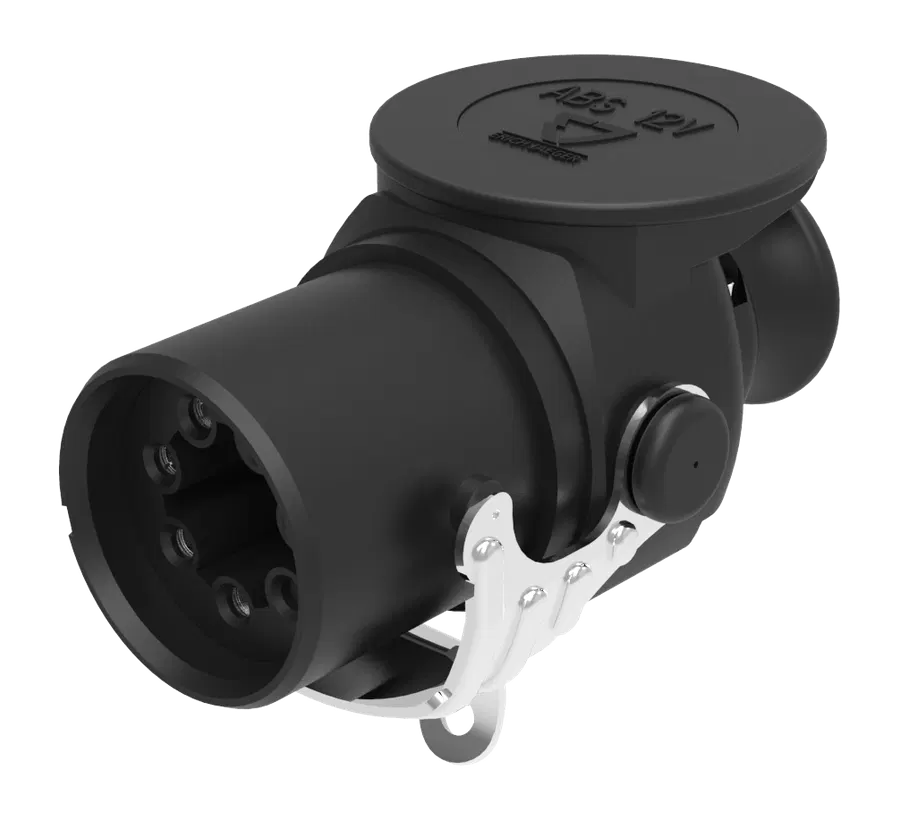

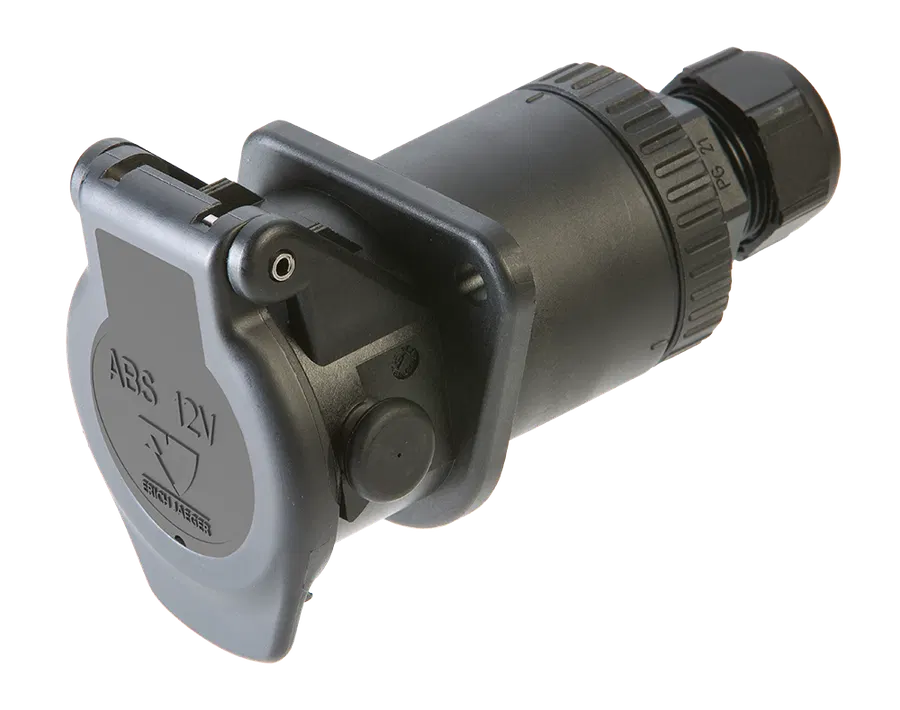

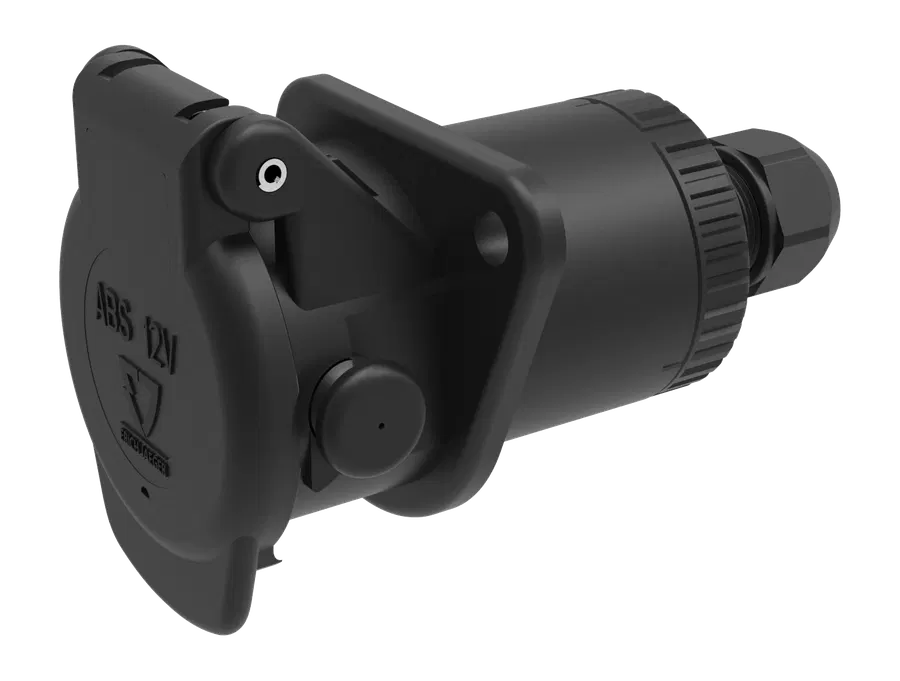

Where possible, combine related system parts in one order: 141071 7P/12V Socket (ISO 7638-2 ABS, EBS, ADR), 241052 7P/12V Plug (ISO 7638-2 ABS, EBS, ADR), 311164 Economy "Shorty" mini short adapter - from vehicle (13P/12V) to trailer (7P/12V), 141004 7P/12V Socket (ISO 7638-2 ABS, EBS, ADR), 241054 7P/12V Plug (ISO 7638-2 ABS, EBS, ADR). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
641149
Product family
coil cable
Standard
ISO 7638-2
Voltage
12V
Poles
7P
Industry
commercial vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 641149 new and genuine, sourced directly from Erich Jaeger.

How is 641149 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Working length [in m]
3
Max. working length [in m]
3,00
Max. extension length [in m]
4,50
Wire cross-sectional area
3x 1.5mm² + 2x 4.0mm²
Protection
IP 54
Product group
coil cable
Standard
ISO 7638-2
Industry
commercial vehicles
Voltage [in V]
12
Packaging
without packaging
Special feature
requirements similar to ISO 4141-4
Type of seal
bending protection grommet
Cable color
black
Cover insert color
red
Housing color
black
Housing material
reinforced composite
Material of cable
TPE
Cable outlet
bending protection grommet
No. of connected plugs
2
No. of connected sockets
0
No. of poles
07
Addition to standard
ABS, ADR
Outer coil diameter [in mm]
110,00
