15P/24V Coil (ISO 12098 ADR)
Erich Jaeger 641123Genuine Erich Jaeger

15P/24V Coil (ISO 12098 ADR)

Price on request

Lead time: within 1 week
Request quote

Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardISO 12098
Voltage24V
Poles15P
Categorycoil cable

System products

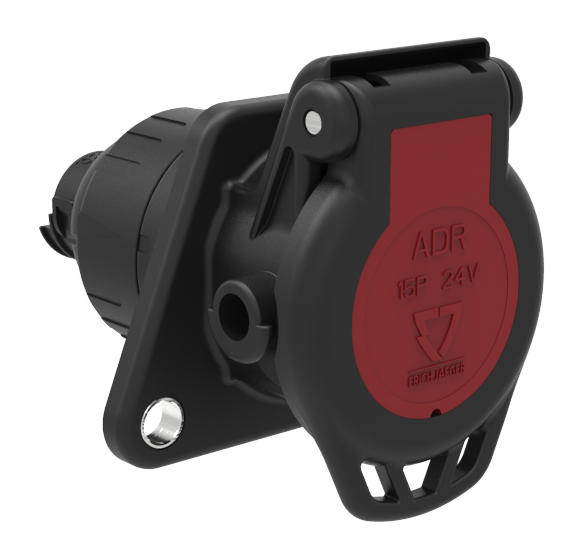

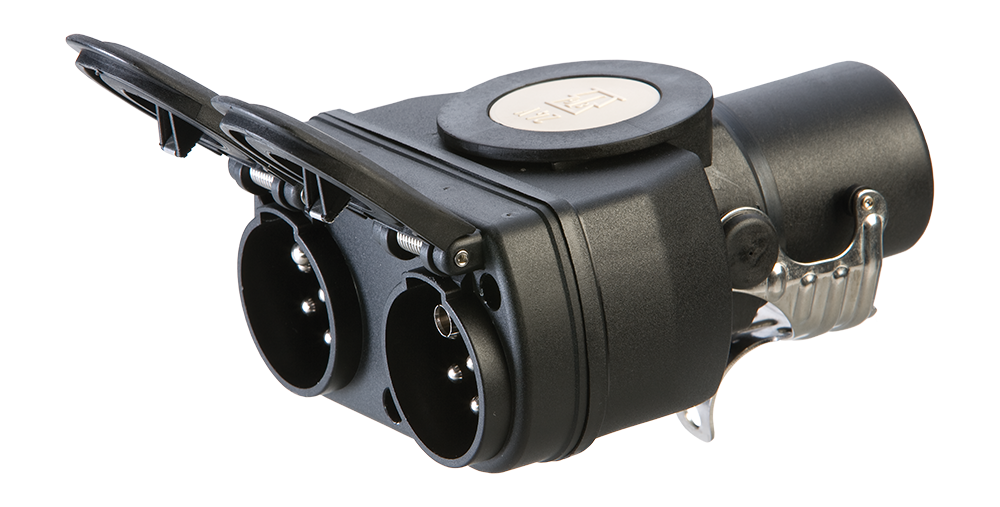

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplierReference numbers
DaimlerA 000 540 27 39 64
Europart9500007910
Ford5C46 13B576 AA
Fricke50743903
Hella8KA 007 648-041
Hofmei2046641123
Littelfuse559670
MAN81254116036
Scania1 934 340
Würth0510950286 061 1

Product context

Product description and application

What does 641123 do?

Erich Jaeger 641123 is 15P/24V Coil (ISO 12098 ADR). In practice this coil cable is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. ISO 12098 and 24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Max. working length [in m]: 3,00, Max. extension length [in m]: 4,50, Wire cross-sectional area: 12x 1.5mm² + 3x 2.5mm², Protection: IP 54, Packaging: without packaging, Standard: ISO 12098. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 641123 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

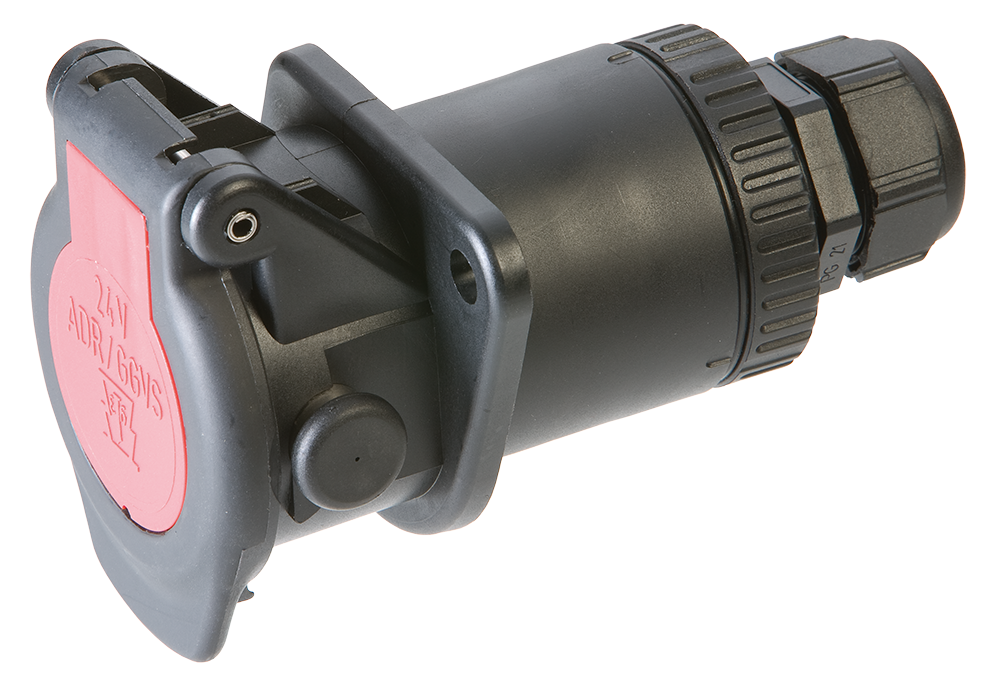

Where possible, combine related system parts in one order: 141053 15P/24V Socket (ISO 12098 ADR), 241010 15P/24V Plug (ISO 12098 ADR), 711110 Adapter coil - with 15P/24V plug (ISO 12098) and 2x 7P/24V metal plugs (ISO 1185 + ISO 3731), 141168 15P/24V «JAEGER Basic» Socket (ISO 12098 ADR), 382044 15P/24V plug housing (ISO 12098 ADR). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
641123
Product family
coil cable
Standard
ISO 12098
Voltage
24V
Poles
15P
Industry
commercial vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 641123 new and genuine, sourced directly from Erich Jaeger.

How is 641123 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Max. working length [in m]
3,00
Max. extension length [in m]
4,50
Wire cross-sectional area
12x 1.5mm² + 3x 2.5mm²
Protection
IP 54
Packaging
without packaging
Product group
coil cable
Standard
ISO 12098
Industry
commercial vehicles
Temperature resistance [in °C]
-40.0 - 125.0
Voltage [in V]
24
Type of seal
bending protection grommet
Cable color
black
Cover insert color
red
Housing color
black
Housing material
reinforced composite
Material of cable
PUR
Cable outlet
bending protection grommet
No. of connected plugs
2
No. of connected sockets
0
No. of poles
15
Addition to standard
ADR
Outer coil diameter [in mm]
50,00
