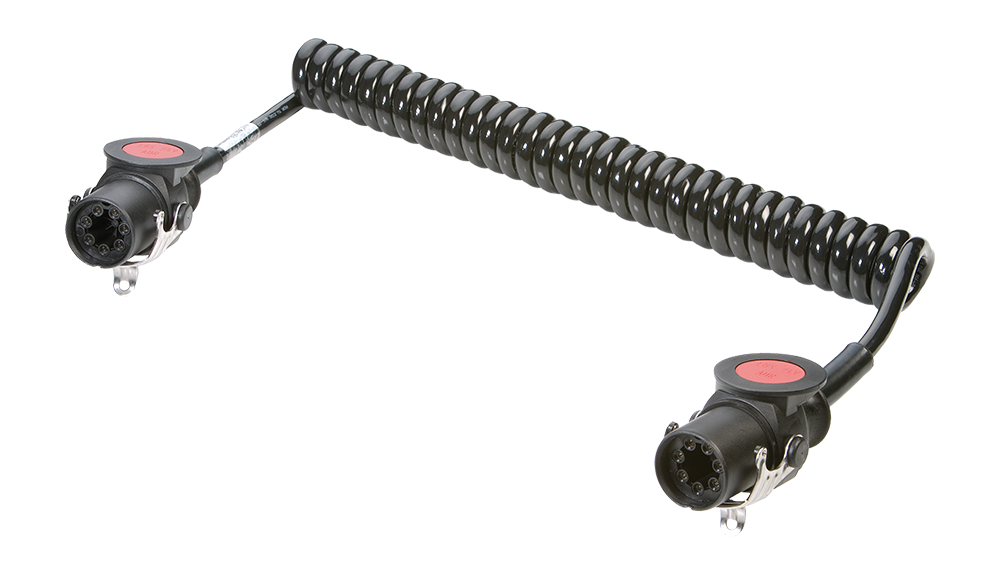

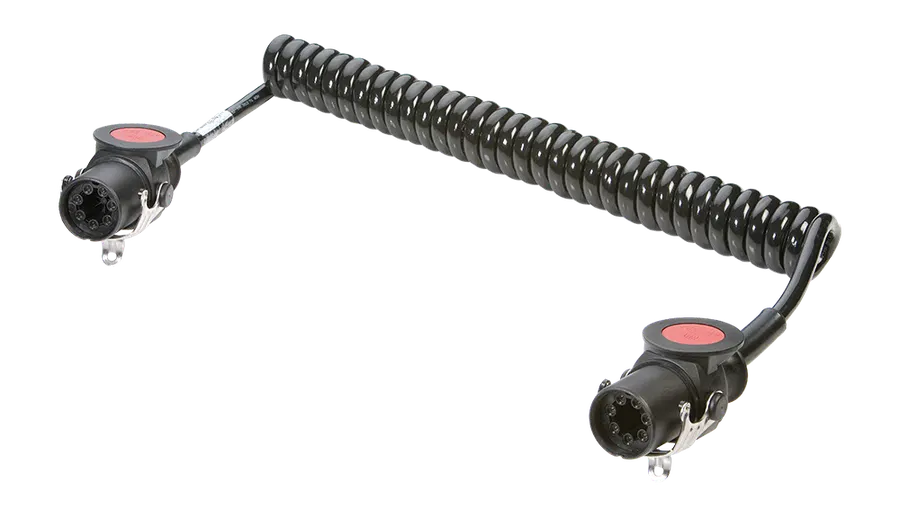

Erich Jaeger 641115Genuine Erich Jaeger

5P/24V Coil (ISO 7638-1 ABS, ADR)

Price on request

Lead time: within 1 week

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardISO 7638-1

Voltage24V

Poles5P

Categorycoil cable

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplier	Reference numbers
Bosch	`F032180247ZDB`
DAF	`1384319`
Daimler	`A5323107`
Europart	`9199349000`
Ford	`1C462C226AA`
Hella	`8KA 007 648-001`
Herth & Buss	`51276635`
Hofmei	`204603244`
Littelfuse	`559470`
Scania	`2120381`
Volvo	`1077510`

Product context

Product description and application

What does 641115 do?

Erich Jaeger 641115 is 5P/24V Coil (ISO 7638-1 ABS, ADR). In practice this coil cable is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. ISO 7638-1 and 24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Working length [in m]: 3, Max. working length [in m]: 3,00, Max. extension length [in m]: 4,50, Wire cross-sectional area: 3x 1.5mm² + 2x 4.0mm², Protection: IP 54, Standard: ISO 7638-1. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 641115 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

Where possible, combine related system parts in one order: 141170 5P/24V «JAEGER Basic» Socket (ISO 7638-1 ABS, ADR), 241070 7P/24V Plug (ISO 7638-1 ABS, EBS, ADR), 141142 5P/24V «JAEGER Basic» Socket (ISO 7638-1 ABS, ADR), 381303 7P/24V plug housing (ISO 7638-1 ABS, EBS, ADR), 141070 7P/24V Socket (ISO 7638-1 ABS, EBS, ADR). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number: 641115
Product family: coil cable
Standard: ISO 7638-1
Voltage: 24V
Poles: 5P
Industry: commercial vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 641115 new and genuine, sourced directly from Erich Jaeger.

How is 641115 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Working length [in m]: 3
Max. working length [in m]: 3,00
Max. extension length [in m]: 4,50
Wire cross-sectional area: 3x 1.5mm² + 2x 4.0mm²
Protection: IP 54
Product group: coil cable
Standard: ISO 7638-1
Industry: commercial vehicles
Temperature resistance [in °C]: -40.0 - 100.0
Voltage [in V]: 24
Packaging: without packaging
Type of seal: bending protection grommet
Cable color: black
Cover insert color: red
Housing color: black
Housing material: reinforced composite
Material of cable: TPE
Cable outlet: bending protection grommet
No. of connected plugs: 2
No. of connected sockets: 0
No. of poles: 05
Addition to standard: ABS, ADR
Outer coil diameter [in mm]: 50,00
