13P/24V Coil (ISO 12098 - 13P version ADR)
Erich Jaeger 641060Genuine Erich Jaeger

13P/24V Coil (ISO 12098 - 13P version ADR)

Price on request

Lead time: within 1 week
Request quote

Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardISO 12098 - 13P version
Voltage24V
Poles13P
Categorycoil cable

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

Product context

Product description and application

What does 641060 do?

Erich Jaeger 641060 is 13P/24V Coil (ISO 12098 - 13P version ADR). In practice this coil cable is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. ISO 12098 - 13P version and 24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Working length [in m]: 4.5, Max. working length [in m]: 4,50, Max. extension length [in m]: 5,50, Wire cross-sectional area: 12x 1.5mm² + 3x 2.5mm², Type of seal: bending protection grommet, Standard: ISO 12098 - 13P version. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 641060 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

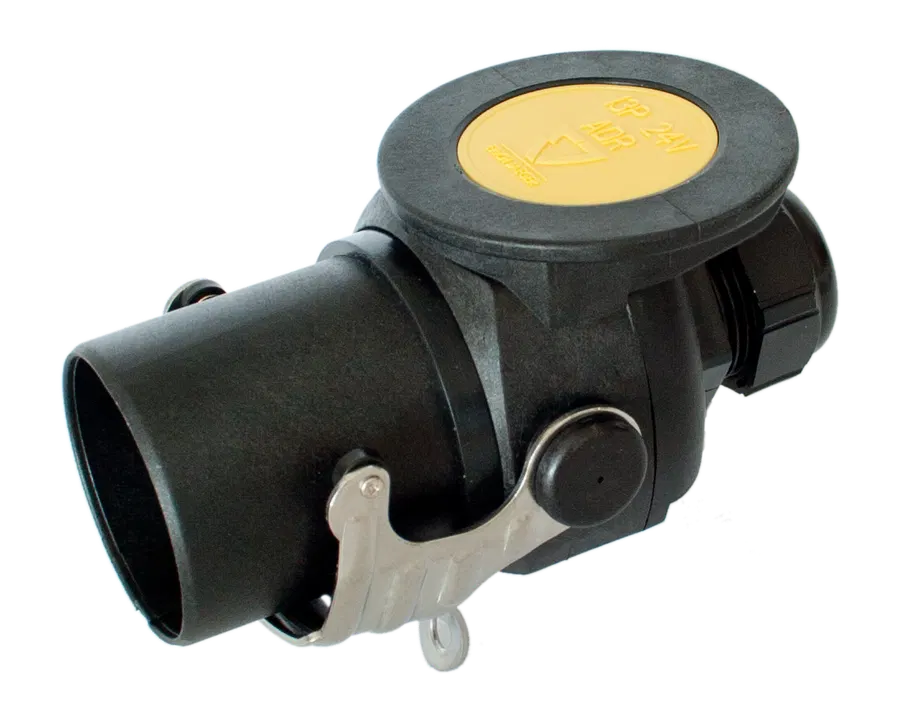

Where possible, combine related system parts in one order: 141014 13P/24V Socket (ISO 12098 - 13P version ADR), 241018 13P/24V Plug (ISO 12098 - 13P version ADR), 711073 Adapter cable - with 15P/24V plug (ISO 12098) and 13P/24V plug (similar to ISO 12098), 141016 13P/24V Socket (ISO 12098 - 13P version ADR), 241016 13P/24V Plug (ISO 12098 - 13P version ADR). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
641060
Product family
coil cable
Standard
ISO 12098 - 13P version
Voltage
24V
Poles
13P
Industry
commercial vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 641060 new and genuine, sourced directly from Erich Jaeger.

How is 641060 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Working length [in m]
4.5
Max. working length [in m]
4,50
Max. extension length [in m]
5,50
Wire cross-sectional area
12x 1.5mm² + 3x 2.5mm²
Type of seal
bending protection grommet
Product group
coil cable
Standard
ISO 12098 - 13P version
Industry
commercial vehicles
Voltage [in V]
24
Packaging
without packaging
Cable color
black
Cover insert color
yellow
Housing color
black
Housing material
reinforced composite
Cable outlet
bending protection grommet
No. of connected plugs
2
No. of connected sockets
0
No. of poles
13
Addition to standard
ADR
Outer coil diameter [in mm]
50,00
