13P/24V Coil (ISO 11446 - 24V version)
Erich Jaeger 631001Genuine Erich Jaeger

13P/24V Coil (ISO 11446 - 24V version)

€85.93per piece · ex VAT

Sold per box of 12 pieces — €1,031.16 per box

Ships within 1 week
Free shipping from €500 · below that €25 flat
1

Rather request a quote? · Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardISO 11446 - 24V version
Voltage24V
Poles13P
Categorycoil cable

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplierReference numbers
Europart9500005000
Hofmei2046631001

Product context

Product description and application

What does 631001 do?

Erich Jaeger 631001 is 13P/24V Coil (ISO 11446 - 24V version). In practice this coil cable is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. ISO 11446 - 24V version and 24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Working length [in m]: 3, Max. working length [in m]: 3,00, Max. extension length [in m]: 4,50, Wire cross-sectional area: 12x 1.5mm² + 3x 2.5mm², Outer coil diameter [in mm]: 50,00, Standard: ISO 11446 - 24V version. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 631001 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

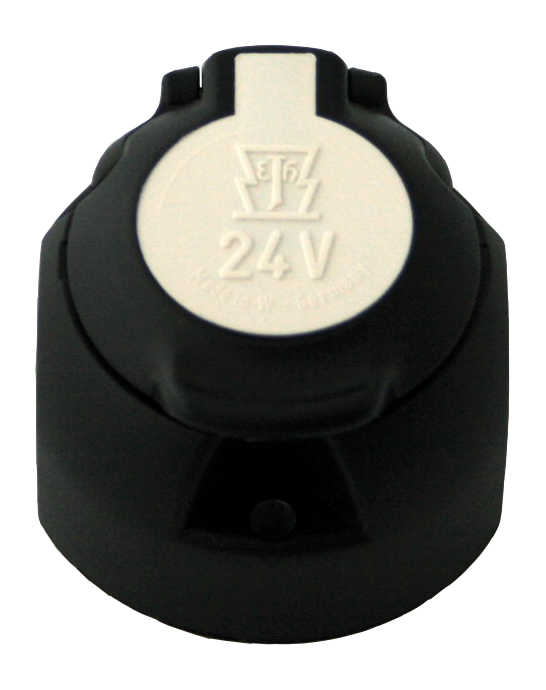

Where possible, combine related system parts in one order: 131005 13P/24V Socket (ISO 11446 - 24V version), 231006 13P/24V Plug (ISO 11446 - 24V version), 311304 Adapter / Voltage Reducer 24V > 12V - - Connects 15P/24V socket (ISO 12098) on vehicle side with 13P/12V plug (ISO 11446) on trailer side, 131003 13P/24V Socket (ISO 11446 - 24V version), 221019 13P/12V Plug (ISO 11446). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
631001
Product family
coil cable
Standard
ISO 11446 - 24V version
Voltage
24V
Poles
13P
Industry
commercial vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 631001 new and genuine, sourced directly from Erich Jaeger.

How is 631001 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Working length [in m]
3
Max. working length [in m]
3,00
Max. extension length [in m]
4,50
Wire cross-sectional area
12x 1.5mm² + 3x 2.5mm²
Outer coil diameter [in mm]
50,00
Product group
coil cable
Standard
ISO 11446 - 24V version
Industry
commercial vehicles
Temperature resistance [in °C]
-40.0 - 125.0
Voltage [in V]
24
Packaging
without packaging
Special feature
with mounting set
Cable color
black
Contact insert color
white
Cover insert color
white
Housing color
black
Housing material
reinforced composite
No. of connected plugs
2
No. of connected sockets
0
No. of poles
13
