Erich Jaeger 611267Genuine Erich Jaeger

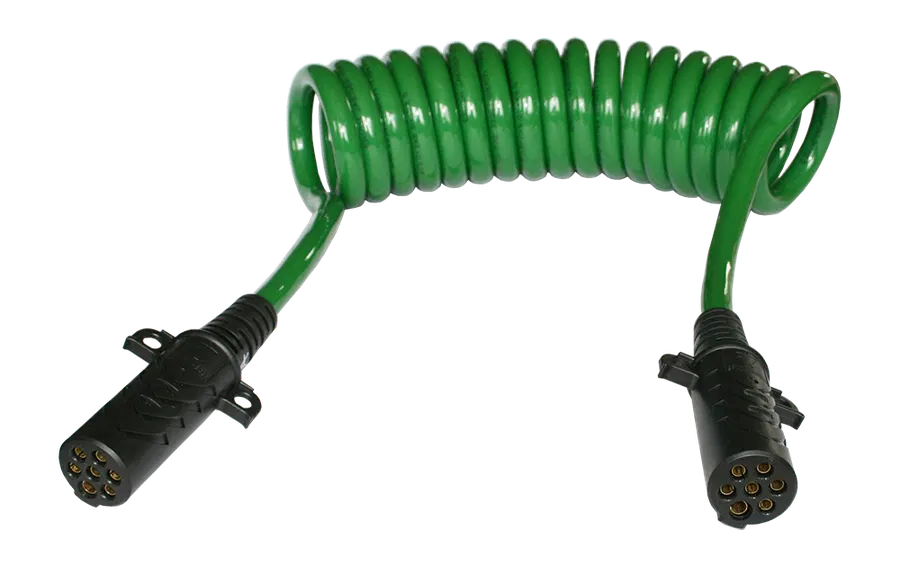

7P/12V «ExperTech™» Coil (SAE J560 Primary, ABS)

Price on request

Lead time: within 1 week

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardSAE J560

Voltage12V

Poles7P

Categorycoil cable

Product context

Product description and application

What does 611267 do?

Erich Jaeger 611267 is 7P/12V «ExperTech™» Coil (SAE J560 Primary, ABS). In practice this coil cable is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. SAE J560 and 12V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Working length [in m]: 4.5, Max. working length [in m]: 5, Max. extension length [in m]: 5,50, Wire cross-sectional area: 4x 3.0mm² + 2x 5.0mm² + 1x 8.0mm², Packaging: PE bag, Standard: SAE J560. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 611267 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

Where possible, combine related system parts in one order: 501187 7P/12V 100% waterproof «WeatherLock™» Socket (SAE J560 Primary, ABS), 201223 7P/12V Plug (SAE J560 Primary, ABS), 711247 Adapter coil - with 7P/12V plug (ISO 1724) and 7P/12V plug (SAE J560), 382517 7P/12V 100% waterproof «WeatherLock™» socket housing (SAE J560 Primary, ABS), 211217 7P/12V Plug (SAE J560 Primary). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number: 611267
Product family: coil cable
Standard: SAE J560
Voltage: 12V
Poles: 7P
Industry: commercial vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 611267 new and genuine, sourced directly from Erich Jaeger.

How is 611267 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Working length [in m]: 4.5
Max. working length [in m]: 5
Max. extension length [in m]: 5,50
Wire cross-sectional area: 4x 3.0mm² + 2x 5.0mm² + 1x 8.0mm²
Packaging: PE bag
Product group: coil cable
Standard: SAE J560
Industry: commercial vehicles
Brand: ExperTech™
Cable lead (in inches): 2x 12
Max. working length [in feet]: 15,00
Temperature resistance [in °C]: -40.0 - 85.0
Voltage [in V]: 12
Cable color: green
Contact insert color: black
Housing color: black
Housing material: reinforced composite
Cable outlet: bending protection, molded
Mounting of cable and socket/plug: molded
No. of connected plugs: 2
No. of connected sockets: 0
No. of poles: 07
Addition to standard: ABS, Primary
Max. extension length [in feet]: 18,00
Outer coil diameter [in mm]: 100,00
