Erich Jaeger 611248Genuine Erich Jaeger

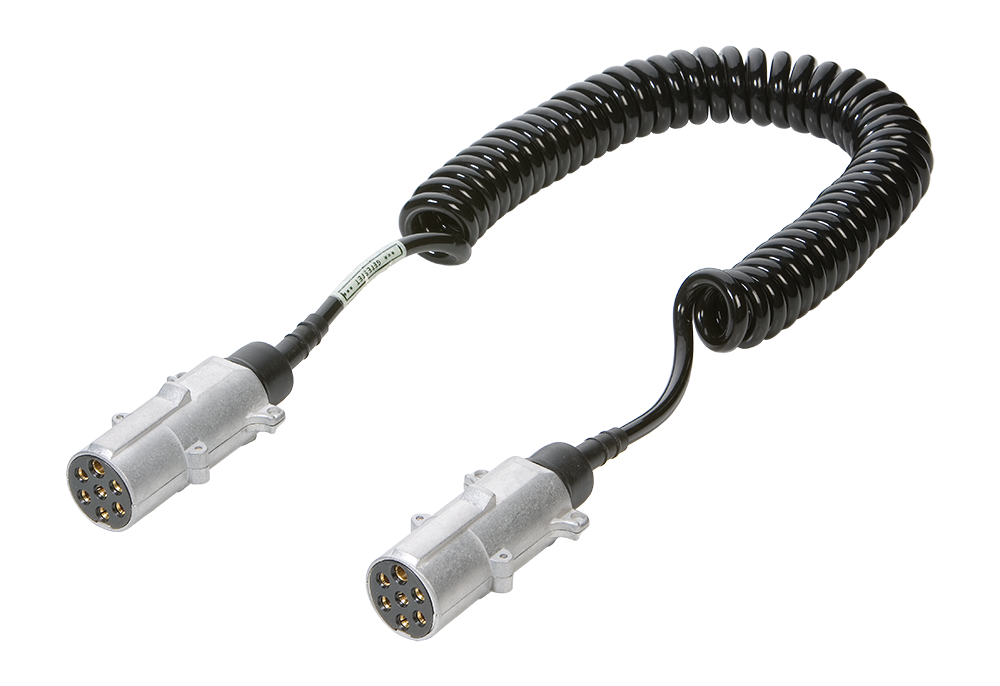

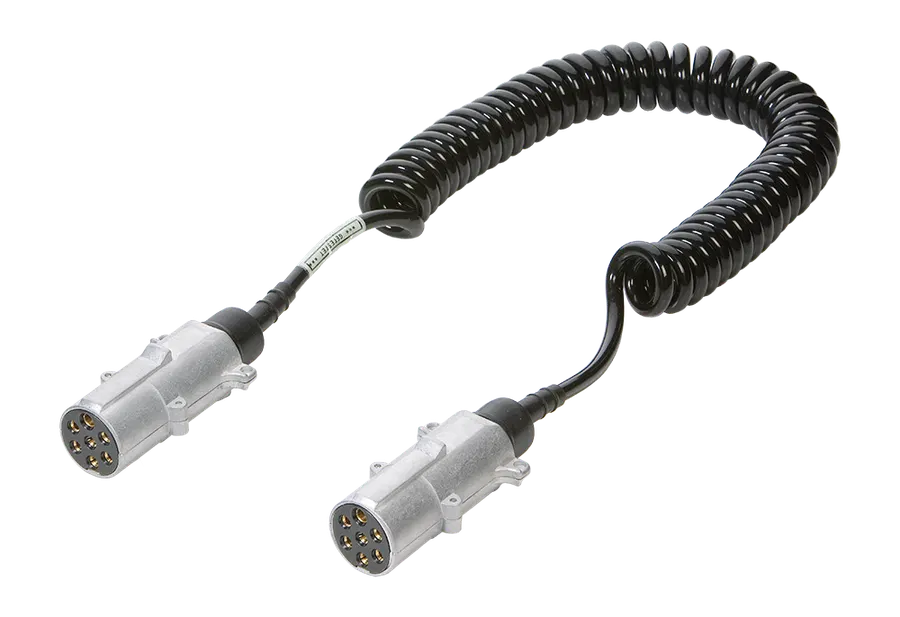

7P/24V Economy Coil (ISO 1185 - Type N)

Name: Erich Jaeger 611248 7P/24V Economy Coil (ISO 1185 - Type N)
Brand: Erich Jaeger
SKU: CR-EJ-611248
Price: 27.27 EUR
Availability: InStock

€27.27per piece · ex VAT

Sold per box of 20 pieces — €545.40 per box

Ships within 1 week

Free shipping from €500 · below that €25 flat

Rather request a quote? · Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardISO 1185 - Type N

Voltage24V

Poles7P

Categorycoil cable

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplier	Reference numbers
DAF	`866483`
Herth & Buss	`51276610`
Littelfuse	`550670`
Phillips	`D213-01-035-1101`
Reflexallen	`42048.0540`
VAG	`KDWHL09219`
Volvo	`1 101 388 5`
Würth	`051095601 061 1`

Product context

Product description and application

What does 611248 do?

Erich Jaeger 611248 is 7P/24V Economy Coil (ISO 1185 - Type N). In practice this coil cable is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. ISO 1185 - Type N and 24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Max. working length [in m]: 3.5, Wire cross-sectional area: 6x 1.0mm² + 1x 1.5mm², Protection: IP 44, Packaging: without packaging, Outer coil diameter [in mm]: 35,00, Standard: ISO 1185 - Type N. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 611248 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

Where possible, combine related system parts in one order: 111081 7P/24V Socket (ISO 1185 - Type N), 211009 7P/24V Plug (ISO 1185 - Type N), 711110 Adapter coil - with 15P/24V plug (ISO 12098) and 2x 7P/24V metal plugs (ISO 1185 + ISO 3731), 111128 7P/24V Socket (ISO 1185 - Type N), 211035 7P/24V Plug (ISO 1185 - Type N). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number: 611248
Product family: coil cable
Standard: ISO 1185 - Type N
Voltage: 24V
Poles: 7P
Industry: commercial vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 611248 new and genuine, sourced directly from Erich Jaeger.

How is 611248 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Max. working length [in m]: 3.5
Wire cross-sectional area: 6x 1.0mm² + 1x 1.5mm²
Protection: IP 44
Packaging: without packaging
Outer coil diameter [in mm]: 35,00
Product group: coil cable
Standard: ISO 1185 - Type N
Industry: commercial vehicles
Temperature resistance [in °C]: -40.0 - 125.0
Voltage [in V]: 24
Special feature: Economy version
Product supplement: Economy
Cable color: black
Contact insert color: black
Housing color: silver-colored
Housing material: break-proof metal
Material of cable: PUR
Cable outlet: grommet
No. of connected plugs: 2
No. of connected sockets: 0
No. of poles: 07
Max. extension length [in m]: 3,50
