Erich Jaeger 611049Genuine Erich Jaeger

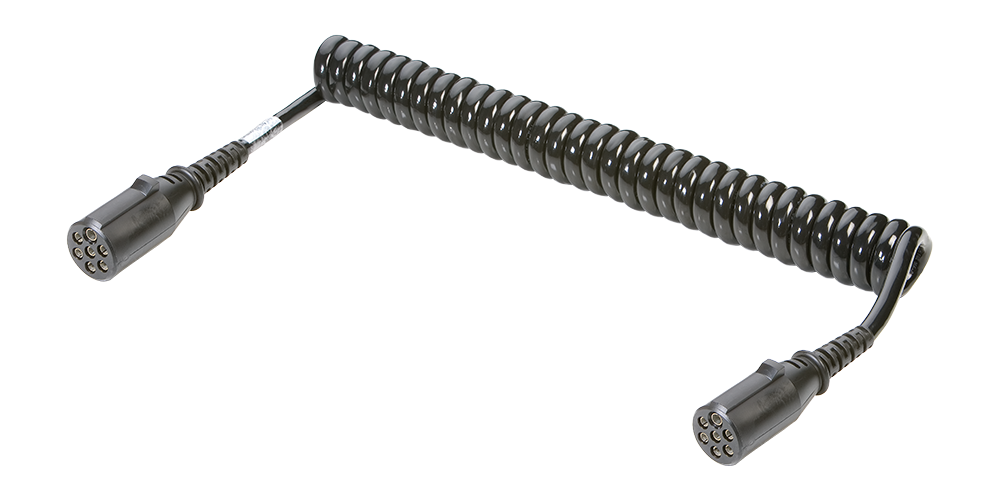

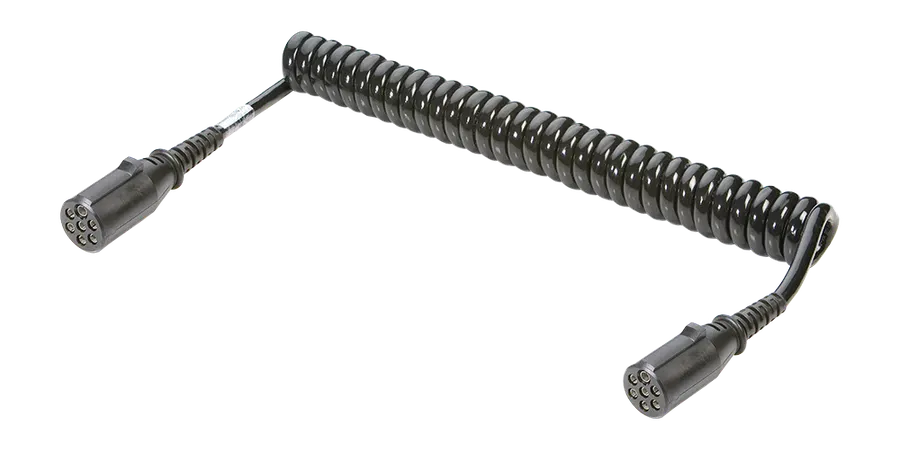

7P/24V Coil (ISO 1185 - Type N)
€26.59per piece · ex VAT
Sold per box of 40 pieces — €1,063.60 per box
Ships within 1 week
Free shipping from €500 · below that €25 flat
1
Rather request a quote? · Official Erich Jaeger product page
ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.
StandardISO 1185 - Type N
Voltage24V
Poles7P
Categorycoil cable
System products

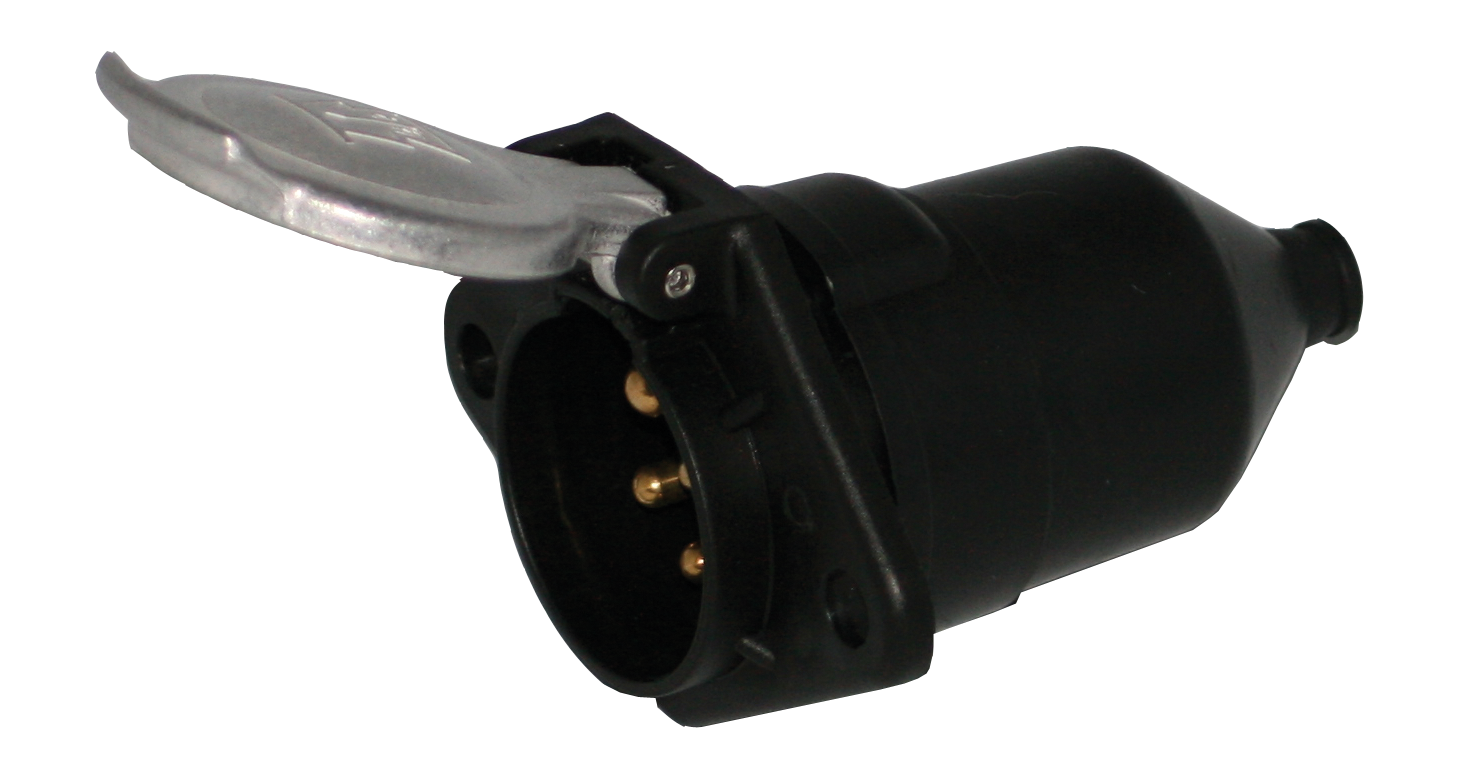

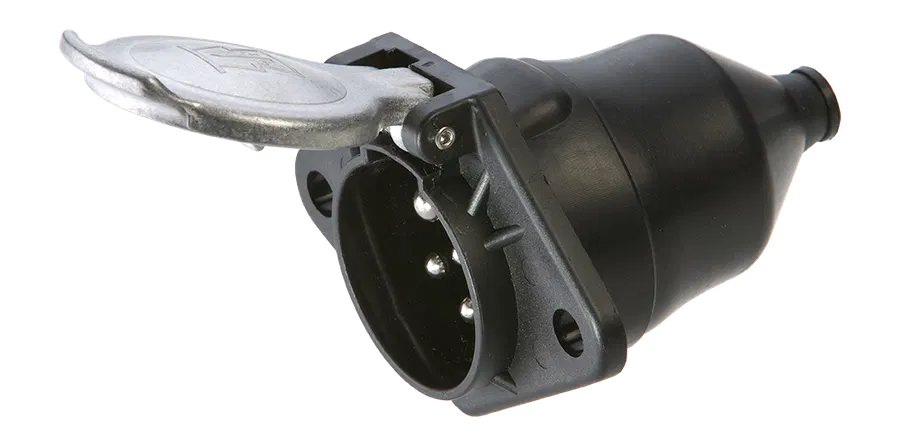

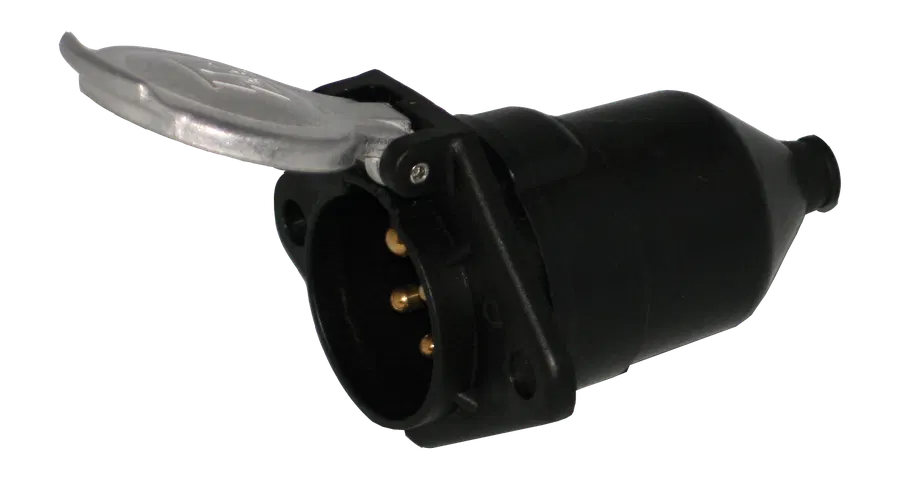

Frequently ordered together
Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.
€5.65 per piece · ex VAT · box of 90
€5.93 per piece · ex VAT · box of 145
€69.46 per piece · ex VAT · box of 8
€6.31 per piece · ex VAT · box of 60
€4.84 per piece · ex VAT · box of 126
€35.54 per piece · ex VAT · box of 20
Price on requestView product
€4.78 per piece · ex VAT · box of 90External article references
Known cross-reference numbers
These supplier, distributor and vehicle-brand references are used for identification only.
| Brand / supplier | Reference numbers |
|---|---|
| Berner | 165449 |
| DAF | 1485535 |
| Daimler | A 387 540 0239 |
| Europart | 9500018102 |
| Febi | 40101 |
| Herth & Buss | 51276670 |
| Hofmei | 2046611049 |
| Iveco | 5 0003 7411 |
| Kögl | 6611578 |
| Littelfuse | 551600 |
| MAN | 81254116038 |
| Phillips | D212-01-035-1001 |
| Reflexallen | 32057.1444 |
| Renault | 5010392008 |
| Scania | 1357170 |
| Volvo | 20409410 |
Product context
Product description and application
What does 611049 do?
Erich Jaeger 611049 is 7P/24V Coil (ISO 1185 - Type N). In practice this coil cable is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. ISO 1185 - Type N and 24V should be verified against the vehicle or trailer wiring diagram.
Technical checks before ordering
The public product data highlights: Working length [in m]: 3, Max. working length [in m]: 3,00, Max. extension length [in m]: 4,50, Wire cross-sectional area: 6x 1.0mm² + 1x 1.5mm², Protection: IP 44, Standard: ISO 1185 - Type N. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.
How ConnectorRoute supplies this article
As an authorized Erich Jaeger distributor, ConnectorRoute supplies 611049 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.
Products that belong in the same order

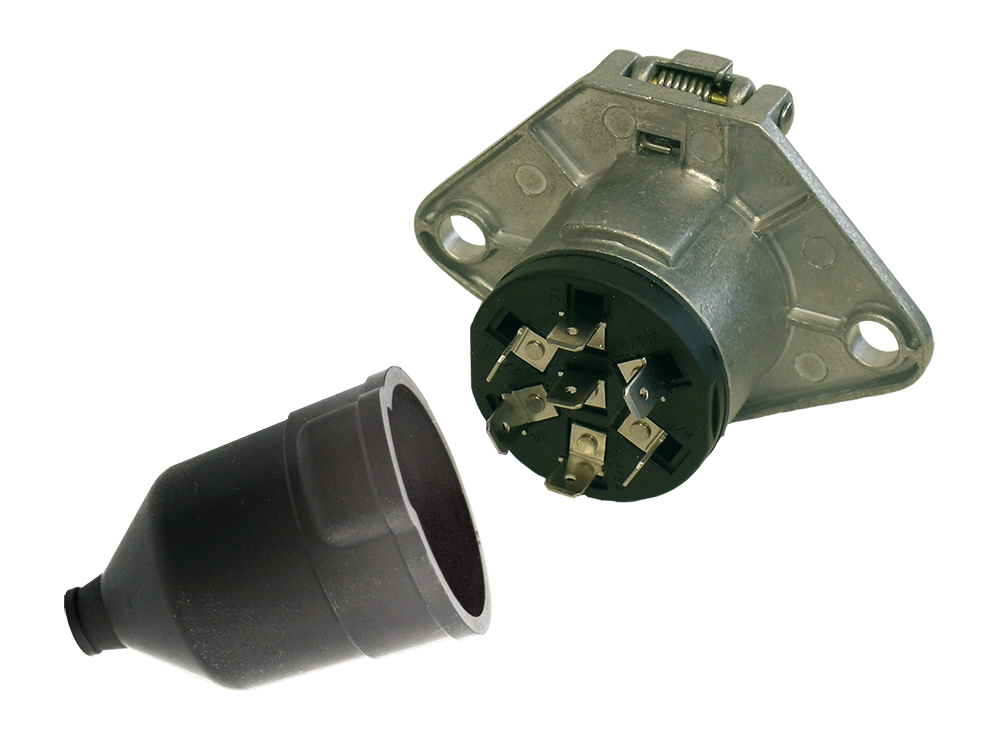

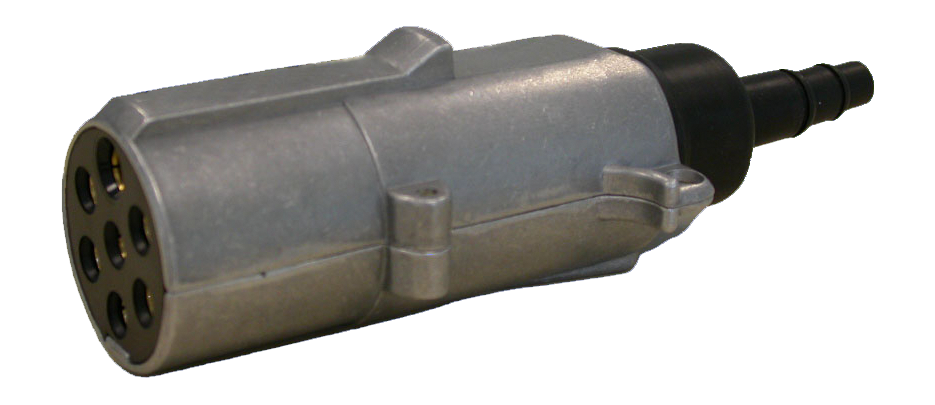

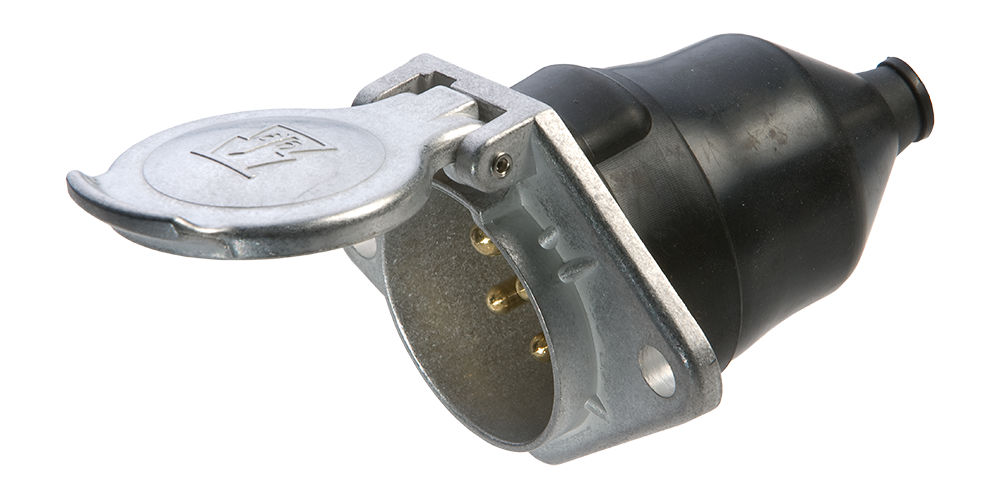

Where possible, combine related system parts in one order: 111081 7P/24V Socket (ISO 1185 - Type N), 211009 7P/24V Plug (ISO 1185 - Type N), 711110 Adapter coil - with 15P/24V plug (ISO 12098) and 2x 7P/24V metal plugs (ISO 1185 + ISO 3731), 111128 7P/24V Socket (ISO 1185 - Type N), 211035 7P/24V Plug (ISO 1185 - Type N). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.
Structured product facts
- Article number
- 611049
- Product family
- coil cable
- Standard
- ISO 1185 - Type N
- Voltage
- 24V
- Poles
- 7P
- Industry
- commercial vehicles
Questions about this article
Is this a genuine Erich Jaeger part?
Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 611049 new and genuine, sourced directly from Erich Jaeger.
How is 611049 packaged and ordered?
Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.
What should I send with an enquiry?
Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.
Technical specifications
Technical data
- Working length [in m]
- 3
- Max. working length [in m]
- 3,00
- Max. extension length [in m]
- 4,50
- Wire cross-sectional area
- 6x 1.0mm² + 1x 1.5mm²
- Protection
- IP 44
- Product group
- coil cable
- Standard
- ISO 1185 - Type N
- Industry
- commercial vehicles
- Temperature resistance [in °C]
- -40.0 - 100.0
- Voltage [in V]
- 24
- Packaging
- without packaging
- Cable color
- black
- Contact insert color
- black
- Housing color
- black
- Housing material
- reinforced composite
- Material of cable
- TPE
- Cable outlet
- molded
- Mounting of cable and socket/plug
- molded
- No. of connected plugs
- 2
- No. of connected sockets
- 0
- No. of poles
- 07
- Outer coil diameter [in mm]
- 50,00
