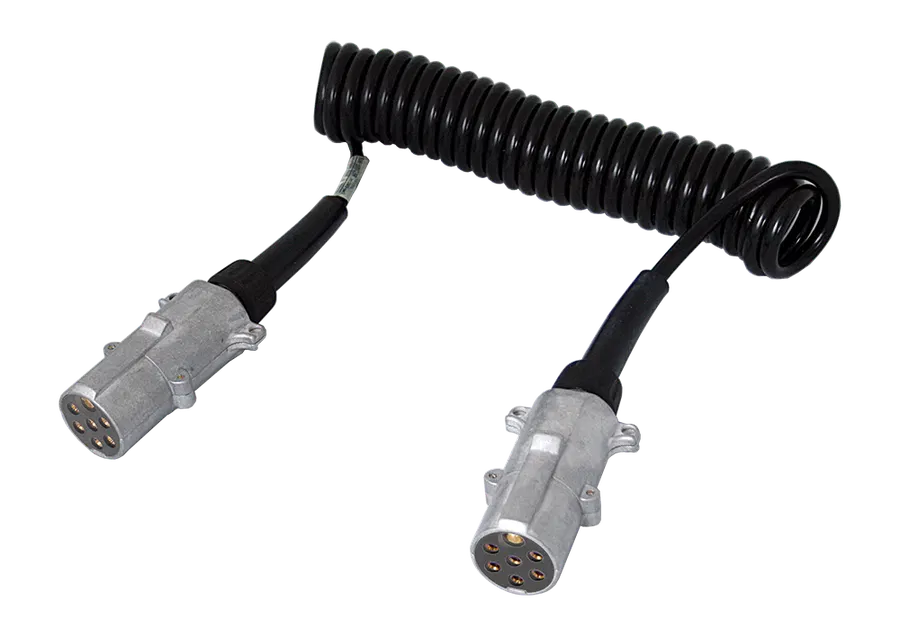

Erich Jaeger 611038Genuine Erich Jaeger

7P/24V Coil (ISO 1185 - Type N)

Price on request

Lead time: within 1 week

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardISO 1185 - Type N

Voltage24V

Poles7P

Categorycoil cable

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplier	Reference numbers
DAF	`866483`
Europart	`6223110340`
Herth & Buss	`51276610`
Littelfuse	`554400`
Phillips	`D213-01-035-1101`
Reflexallen	`42066.0540`
Scania	`1912044`

Product context

Product description and application

What does 611038 do?

Erich Jaeger 611038 is 7P/24V Coil (ISO 1185 - Type N). In practice this coil cable is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. ISO 1185 - Type N and 24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Working length [in m]: 3, Max. working length [in m]: 3,00, Max. extension length [in m]: 4,50, Wire cross-sectional area: 6x 1.0mm² + 1x 1.5mm², Protection: IP 44, Standard: ISO 1185 - Type N. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 611038 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

Where possible, combine related system parts in one order: 111081 7P/24V Socket (ISO 1185 - Type N), 211009 7P/24V Plug (ISO 1185 - Type N), 711110 Adapter coil - with 15P/24V plug (ISO 12098) and 2x 7P/24V metal plugs (ISO 1185 + ISO 3731), 111128 7P/24V Socket (ISO 1185 - Type N), 211035 7P/24V Plug (ISO 1185 - Type N). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number: 611038
Product family: coil cable
Standard: ISO 1185 - Type N
Voltage: 24V
Poles: 7P
Industry: commercial vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 611038 new and genuine, sourced directly from Erich Jaeger.

How is 611038 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Working length [in m]: 3
Max. working length [in m]: 3,00
Max. extension length [in m]: 4,50
Wire cross-sectional area: 6x 1.0mm² + 1x 1.5mm²
Protection: IP 44
Product group: coil cable
Standard: ISO 1185 - Type N
Industry: commercial vehicles
Temperature resistance [in °C]: -40.0 - 100.0
Voltage [in V]: 24
Packaging: retail bag
Type of seal: bending protection grommet
Cable color: black
Contact insert color: black
Housing color: silver-colored
Housing material: break-proof metal
Material of cable: TPE
Cable outlet: bending protection grommet
No. of connected plugs: 2
No. of connected sockets: 0
No. of poles: 07
Outer coil diameter [in mm]: 50,00
