7P/12V 100% waterproof «WeatherLock™» Socket (SAE J560 Primary, ABS)
Erich Jaeger 501157Genuine Erich Jaeger

7P/12V 100% waterproof «WeatherLock™» Socket (SAE J560 Primary, ABS)

Price on request

Lead time: within 1 week
Request quote

Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardSAE J560
Voltage12V
Poles7P
Categorysocket

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

Product context

Product description and application

What does 501157 do?

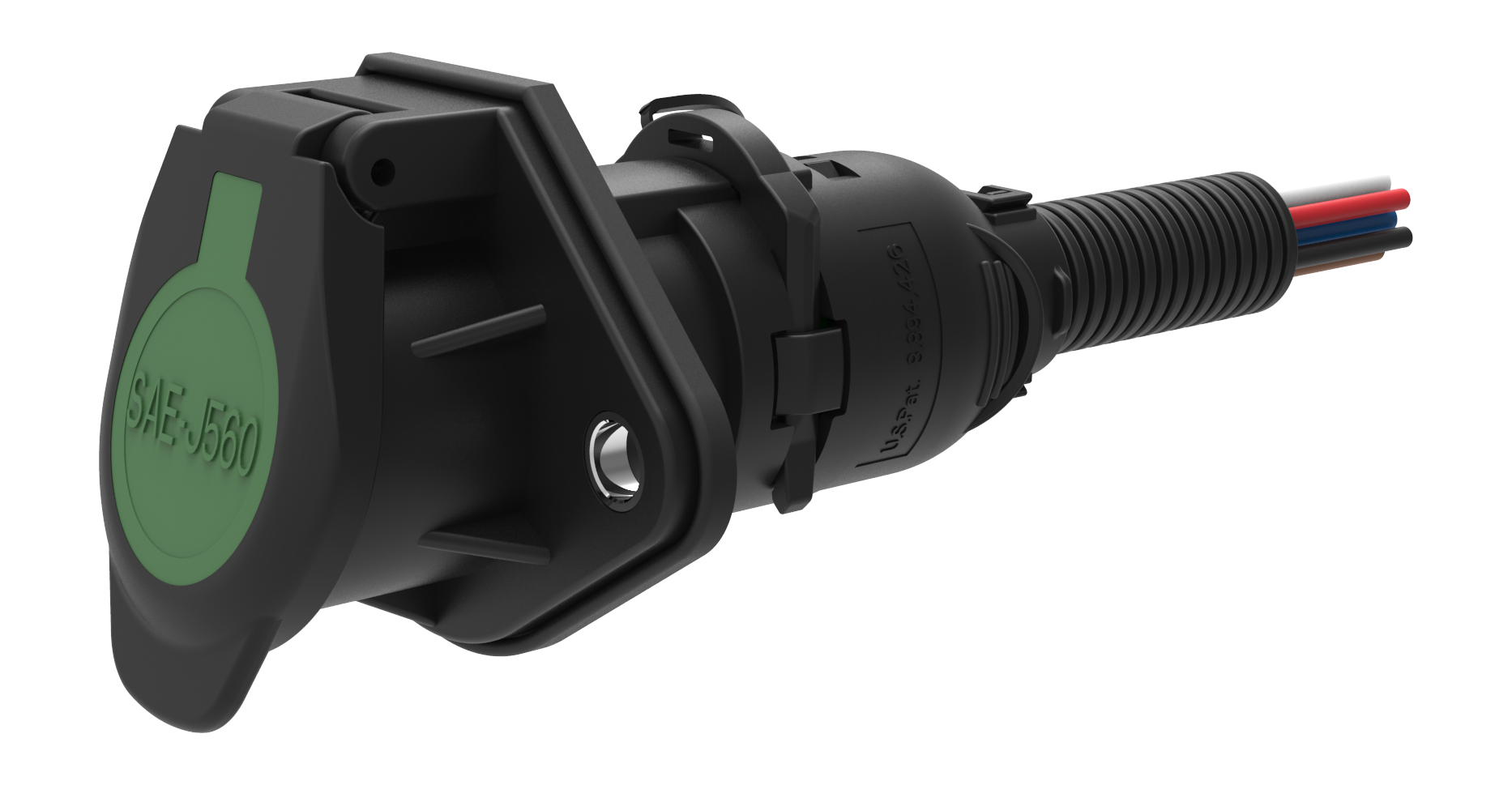

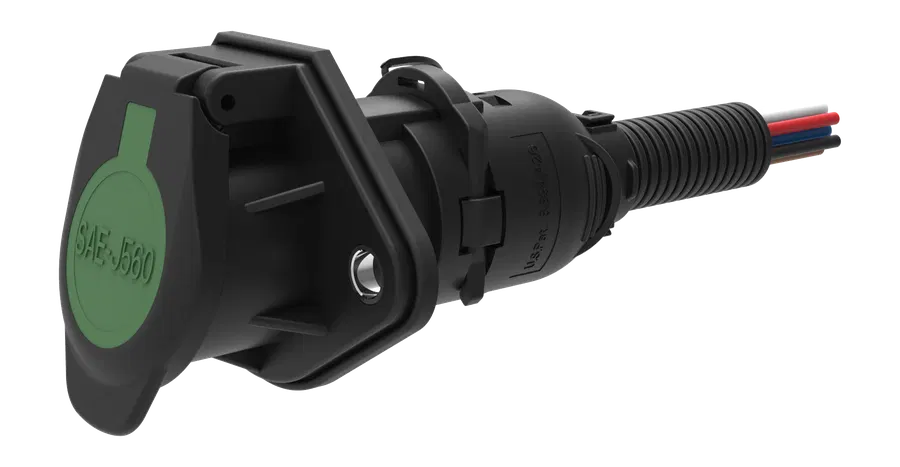

Erich Jaeger 501157 is 7P/12V 100% waterproof «WeatherLock™» Socket (SAE J560 Primary, ABS). In practice this socket is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. SAE J560 and 12V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Cable length [in m]: 1,25, Wire cross-sectional area: 4x 3mm² + 2x 5mm² + 1x 8mm², Contact termination: crimp contact, Protection: IP 54, IP X7, IP X9K, Packaging: PE bag, Standard: SAE J560. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 501157 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

Where possible, combine related system parts in one order: 611263 7P/12V «ExperTech™» Straight Cable (SAE J560 Primary), 201223 7P/12V Plug (SAE J560 Primary, ABS), 611268 7P/12V «ExperTech™» Coil (SAE J560 Primary, ABS), 711247 Adapter coil - with 7P/12V plug (ISO 1724) and 7P/12V plug (SAE J560), 301006 7P/12V Coupler (ISO 1724 - Type N). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
501157
Product family
socket
Standard
SAE J560
Voltage
12V
Poles
7P
Industry
commercial vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 501157 new and genuine, sourced directly from Erich Jaeger.

How is 501157 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Cable length [in m]
1,25
Wire cross-sectional area
4x 3mm² + 2x 5mm² + 1x 8mm²
Contact termination
crimp contact
Protection
IP 54, IP X7, IP X9K
Packaging
PE bag
Product group
socket
Standard
SAE J560
Industry
commercial vehicles
Brand
WeatherLock™
Temperature resistance [in °C]
-40.0 - 85.0
Voltage [in V]
12
Design/Version
with reinforcement bushings
Special feature
blunt cut socket pigtail, crimped, fully assembled
Product supplement
100% waterproof
Contact insert color
green
Contact surface
nickel (Ni)
Cover insert color
green
Cover material
reinforced composite
Housing color
black
Housing material
reinforced composite
Cable outlet
cable outlet 180°, corrugated tube NW17
Contact version
contact pin
No. of poles
07
Addition to standard
ABS, Primary
American Wire Gauge (AWG)
4x 12AWG + 2x 10AWG + 1x 8AWG
Cable length [in in]
49,25
