Erich Jaeger 501151Genuine Erich Jaeger

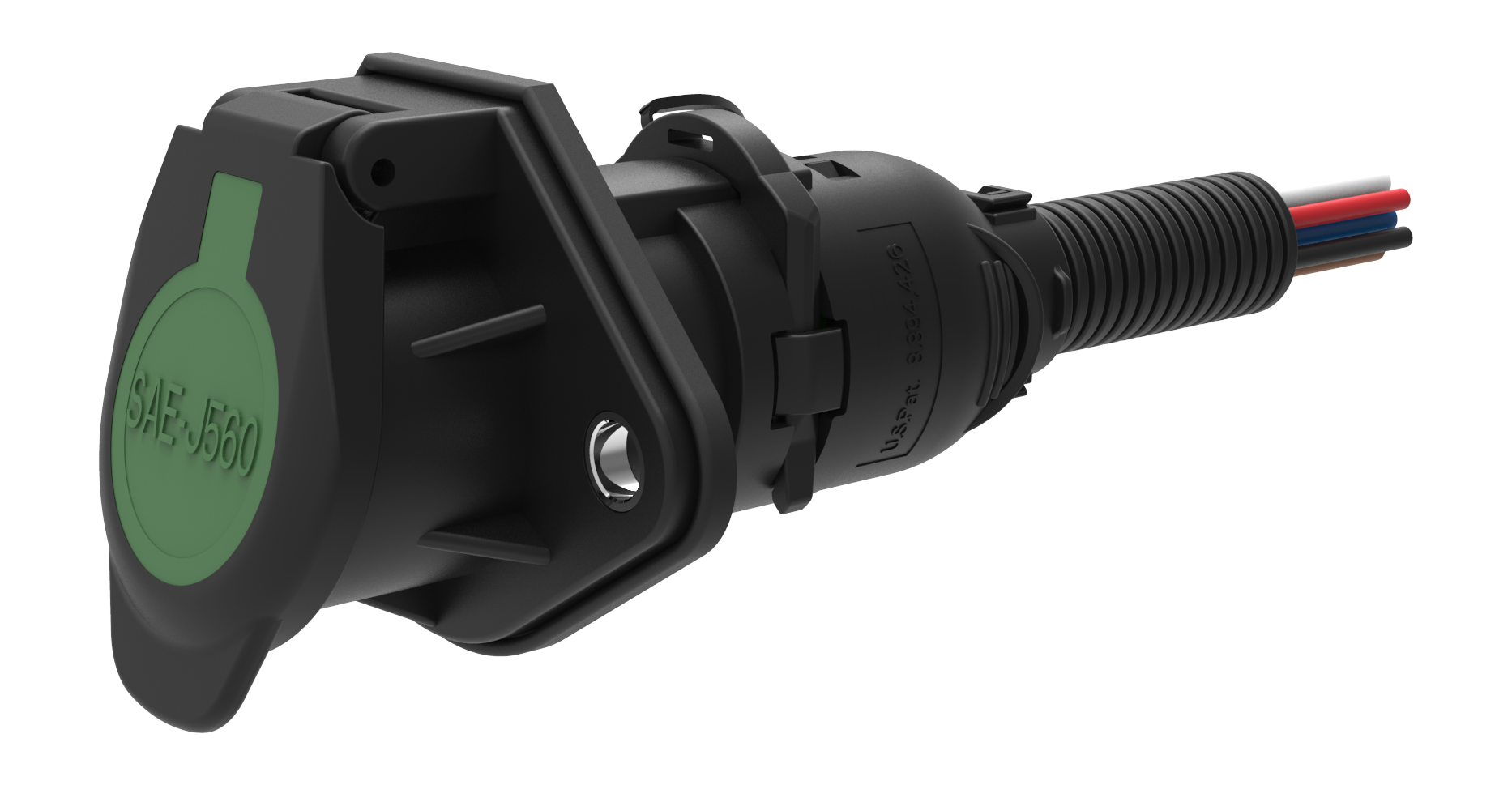

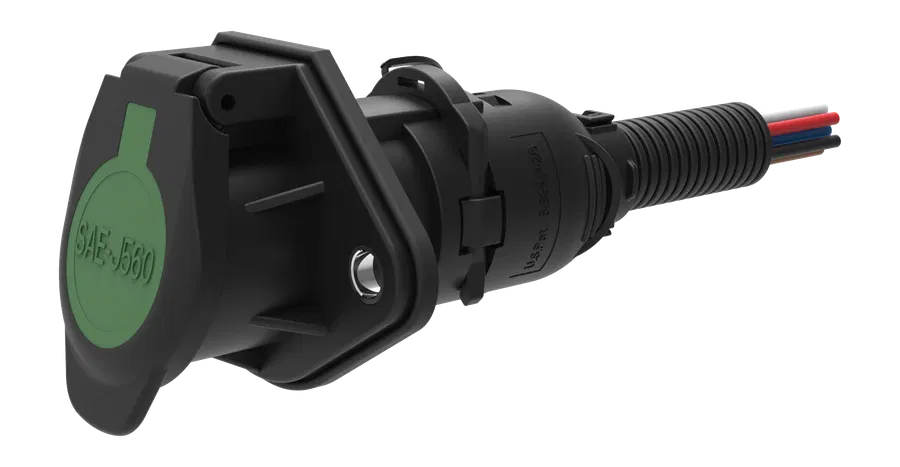

7P/12V 100% waterproof «WeatherLock™» Socket (SAE J560 Primary, ABS)

Price on request

Lead time: within 1 week

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardSAE J560

Voltage12V

Poles7P

Categorysocket

Product context

Product description and application

What does 501151 do?

Erich Jaeger 501151 is 7P/12V 100% waterproof «WeatherLock™» Socket (SAE J560 Primary, ABS). In practice this socket is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. SAE J560 and 12V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Cable length [in m]: 1,25, Wire cross-sectional area: 4x 3mm² + 2x 5mm² + 1x 8mm², Contact termination: crimp contact, Protection: IP 54, IP X7, IP X9K, Packaging: bulk packaging, Standard: SAE J560. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 501151 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

Where possible, combine related system parts in one order: 611263 7P/12V «ExperTech™» Straight Cable (SAE J560 Primary), 201223 7P/12V Plug (SAE J560 Primary, ABS), 611268 7P/12V «ExperTech™» Coil (SAE J560 Primary, ABS), 711247 Adapter coil - with 7P/12V plug (ISO 1724) and 7P/12V plug (SAE J560), 301006 7P/12V Coupler (ISO 1724 - Type N). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number: 501151
Product family: socket
Standard: SAE J560
Voltage: 12V
Poles: 7P
Industry: commercial vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 501151 new and genuine, sourced directly from Erich Jaeger.

How is 501151 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Cable length [in m]: 1,25
Wire cross-sectional area: 4x 3mm² + 2x 5mm² + 1x 8mm²
Contact termination: crimp contact
Protection: IP 54, IP X7, IP X9K
Packaging: bulk packaging
Product group: socket
Standard: SAE J560
Industry: commercial vehicles
Brand: WeatherLock™
Temperature resistance [in °C]: -40.0 - 85.0
Voltage [in V]: 12
Design/Version: with reinforcement bushings
Special feature: blunt cut socket pigtail, crimped, fully assembled
Product supplement: 100% waterproof
Contact insert color: green
Contact surface: nickel (Ni)
Cover insert color: green
Cover material: reinforced composite
Housing color: black
Housing material: reinforced composite
Cable outlet: cable outlet 180°, corrugated tube NW17
Contact version: contact pin
No. of poles: 07
Outlet open or closed: n.a.
Addition to standard: ABS, Primary
American Wire Gauge (AWG): 4x 12AWG + 2x 10AWG + 1x 8AWG
Cable length [in in]: 49,25
