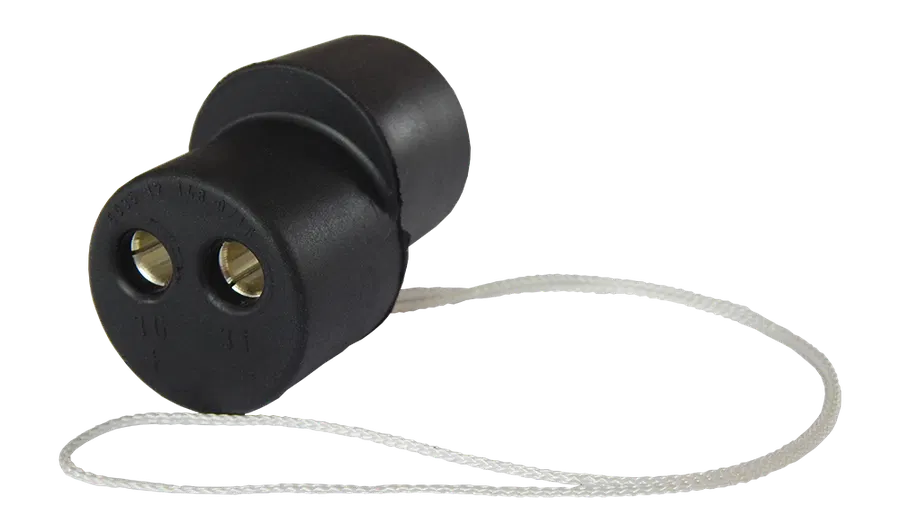

2P/24V(168A) Coupler (VG 96917) - without screw caps for connection of 2 connecting cables
Erich Jaeger 301109Genuine Erich Jaeger

2P/24V(168A) Coupler (VG 96917) - without screw caps for connection of 2 connecting cables

€21.73per piece · ex VAT

Sold per box of 50 pieces — €1,086.50 per box

Ships within 1 week
Free shipping from €500 · below that €25 flat
1

Rather request a quote? · Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardVG 96917
Voltage24V
Poles2P
Categorycoupler

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplierReference numbers
BoschF032180199ZDB
Herth & Buss51305492
Hofmei74490971
Reflexallen6.00964.001

Product context

Product description and application

What does 301109 do?

Erich Jaeger 301109 is 2P/24V(168A) Coupler (VG 96917) - without screw caps for connection of 2 connecting cables. In practice this coupler is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. VG 96917 and 24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Protection: IP 54, IP X4, IP X7, Packaging: without packaging, Design/Version: rubberized, Contact insert color: black, Housing color: black, Description: without screw caps for connection of 2 connecting cables. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 301109 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

Where possible, combine related system parts in one order: 151211 2P/24V(168A) Socket (VG 96917 A002), 251097 2P/24V(135A) Plug (VG 96917 E001A), 651910 2P/24V(135A) Cable (VG 96917), 151212 2P/24V Socket (VG 96917 A001), 251098 2P/24V(168A) Plug (VG 96917). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
301109
Product family
coupler
Standard
VG 96917
Voltage
24V
Poles
2P
Industry
defense vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 301109 new and genuine, sourced directly from Erich Jaeger.

How is 301109 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Protection
IP 54, IP X4, IP X7
Packaging
without packaging
Design/Version
rubberized
Contact insert color
black
Housing color
black
Description
without screw caps for connection of 2 connecting cables
Product group
coupler
Standard
VG 96917
Industry
defense vehicles
Peak current / short-term load [in A]
305
Rated current / permanent load [in A]
168
Voltage [in V]
24
Contact surface
silver (Ag)
Housing material
break-proof metal
Contact version
contact sleeve
No. of poles
02
€21.73per piece · ex VAT · box of 50
