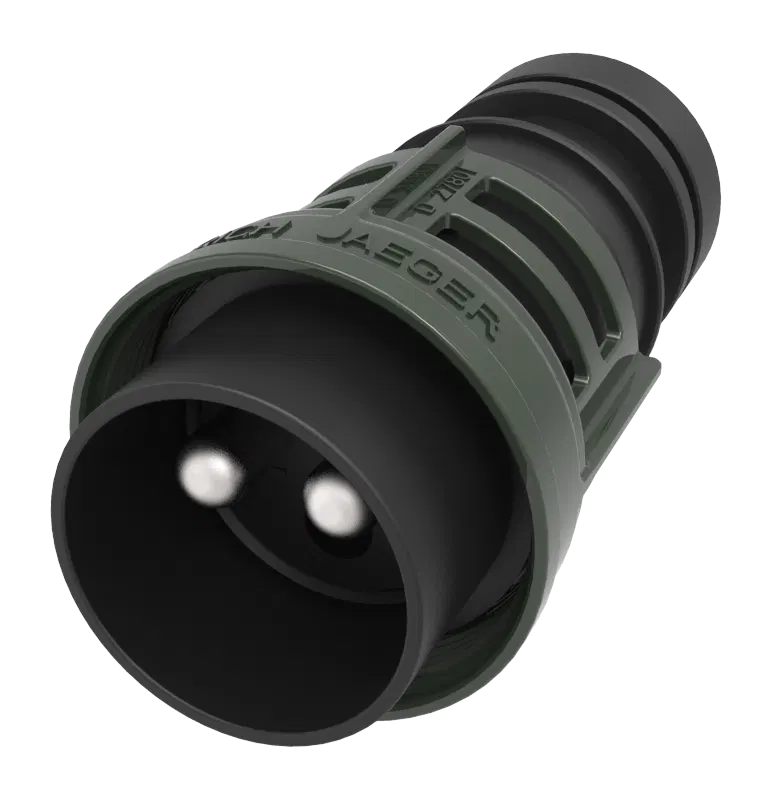

2P/24V(135A) Plug (VG 96917 F001) - for heat shrinkable connector endshell or moulding
Erich Jaeger 251278Genuine Erich Jaeger

2P/24V(135A) Plug (VG 96917 F001) - for heat shrinkable connector endshell or moulding

Price on request

Lead time: within 1 week
Request quote

Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardVG 96917
Voltage24V
Poles2P
Categoryplug

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplierReference numbers
Hella8JA 001 931-011
Scania20 223 984

Product context

Product description and application

What does 251278 do?

Erich Jaeger 251278 is 2P/24V(135A) Plug (VG 96917 F001) - for heat shrinkable connector endshell or moulding. In practice this plug is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. VG 96917 and 24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Contact termination: crimp contact, solder contact, Protection: IP 54, IP X4, IP X7, Design/Version: rubberized, Contact insert color: black, Housing color: black, Description: for heat shrinkable connector endshell or moulding. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 251278 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

Where possible, combine related system parts in one order: 151211 2P/24V(168A) Socket (VG 96917 A002), 651910 2P/24V(135A) Cable (VG 96917), 652092 2P/24V(135A) Coil (VG 96927-12), 311181 2P/24V(300A) Adapter (STANAG 4074 / MIL-PRF-62122, VG 96917), 301108 2P/24V(168A) Coupler (VG 96917 D001) - with screw caps for connection of 2 connecting cables. That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
251278
Product family
plug
Standard
VG 96917
Voltage
24V
Poles
2P
Industry
defense vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 251278 new and genuine, sourced directly from Erich Jaeger.

How is 251278 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Contact termination
crimp contact, solder contact
Protection
IP 54, IP X4, IP X7
Design/Version
rubberized
Contact insert color
black
Housing color
black
Description
for heat shrinkable connector endshell or moulding
Product group
plug
Standard
VG 96917
Industry
defense vehicles
Peak current / short-term load [in A]
245
Rated current / permanent load [in A]
135
Voltage [in V]
24
NATO stock No.
5935-12-361-1646
Packaging
retail bag
Special feature
with metal screw ring (bronze green)
Contact surface
silver (Ag)
Housing material
break-proof metal
Cable outlet
cap nut
Contact version
contact pin
No. of poles
02
Addition to standard
F001
Contact: for max. wire cross section [in mm²]
35,00
