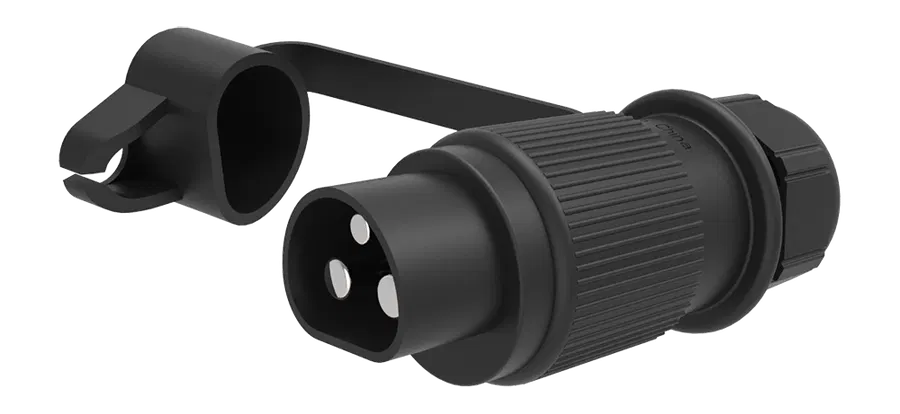

3P/6-24V(25A) Plug (DIN 9680)
Erich Jaeger 251256Genuine Erich Jaeger

3P/6-24V(25A) Plug (DIN 9680)

Price on request

Lead time: within 1 week
Request quote

Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardDIN 9680
Voltage6-24V
Poles3P
Categoryplug

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

Product context

Product description and application

What does 251256 do?

Erich Jaeger 251256 is 3P/6-24V(25A) Plug (DIN 9680). In practice this plug is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. DIN 9680 and 6-24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: For cable diameter: 9,50mm - 11,50mm, Contact termination: plug-in contact, Protection: IP 54, IP X4, Packaging: without packaging, No. of seal outlets: single, Standard: DIN 9680. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 251256 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

Where possible, combine related system parts in one order: 151130 3P/6-24V(25A) Socket (DIN 9680), 251249 3P/6-24V(10A) Cable (DIN 9680), 651535 3P/24V(25A) Coil (without standard), 151131 3P/6-24V(25A) Socket (DIN 9680), 151167 3P/6-24V(25A) Socket (DIN 9680). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
251256
Product family
plug
Standard
DIN 9680
Voltage
6-24V
Poles
3P
Industry
agriculture

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 251256 new and genuine, sourced directly from Erich Jaeger.

How is 251256 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

For cable diameter
9,50mm - 11,50mm
Contact termination
plug-in contact
Protection
IP 54, IP X4
Packaging
without packaging
No. of seal outlets
single
Product group
plug
Standard
DIN 9680
Industry
agriculture
Rated current / permanent load [in A]
25
Voltage [in V]
6-24
Type of seal
sealing plug
Contact insert color
black
Contact surface
nickel (Ni)
Cover material
rubber
Cover version
push-on cap
Housing color
black
Housing material
reinforced composite
Cable outlet
cap nut
Contact version
contact pin
Features of plug-in contacts
flat terminal
No. of poles
03
Outlet open or closed
n.a.
