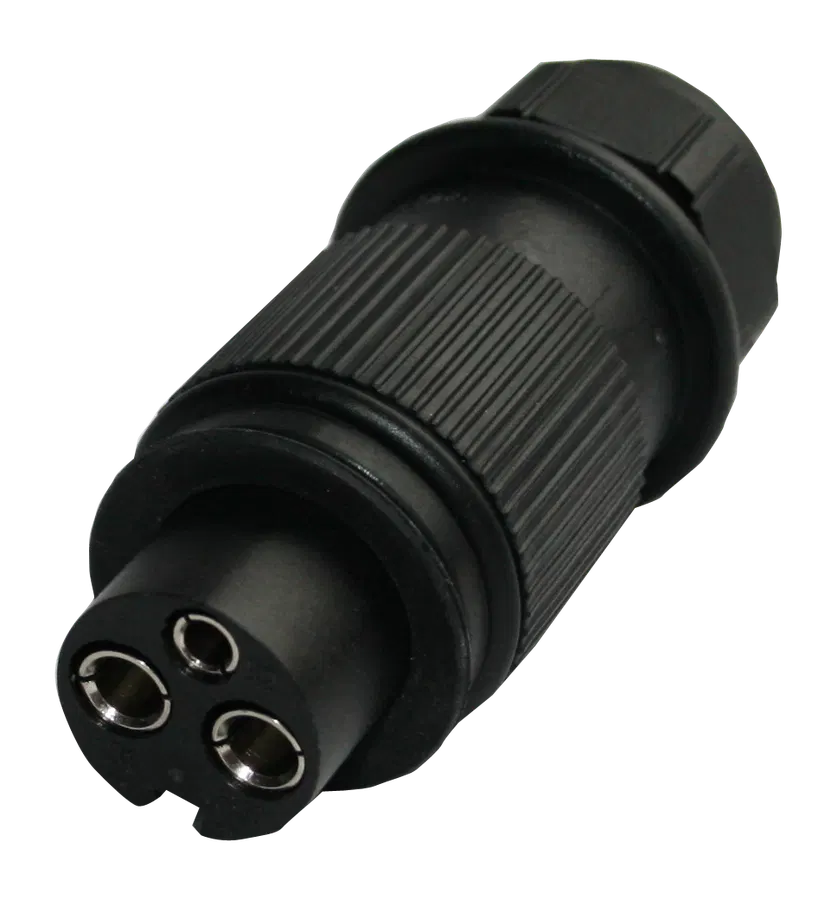

3P/6-24V plug with socket contacts (DIN 9680 - similar). - with socket contacts instead of pin contacts
Erich Jaeger 251106Genuine Erich Jaeger

3P/6-24V plug with socket contacts (DIN 9680 - similar). - with socket contacts instead of pin contacts

€6.86per piece · ex VAT

Sold per box of 250 pieces — €1,715.00 per box

Ships within 1 week
Free shipping from €500 · below that €25 flat
1

Rather request a quote? · Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardDIN 9680 - similar
Voltage6-24V
Poles3P
Categoryplug

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplierReference numbers
BoschF032182377ZDB
Europart4830251106
Herth & Buss51305685

Product context

Product description and application

What does 251106 do?

Erich Jaeger 251106 is 3P/6-24V plug with socket contacts (DIN 9680 - similar). - with socket contacts instead of pin contacts. In practice this plug is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. DIN 9680 - similar and 6-24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: For cable diameter: 6,00mm - 10,00mm, Contact termination: plug-in contact, Protection: IP 54, IP X4, Type of seal: screw cap, Contact insert color: black, Description: with socket contacts instead of pin contacts. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 251106 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

Where possible, combine related system parts in one order: 151130 3P/6-24V(25A) Socket (DIN 9680), 251249 3P/6-24V(10A) Cable (DIN 9680), 651535 3P/24V(25A) Coil (without standard), 151131 3P/6-24V(25A) Socket (DIN 9680), 151167 3P/6-24V(25A) Socket (DIN 9680). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
251106
Product family
plug
Standard
DIN 9680 - similar
Voltage
6-24V
Poles
3P
Industry
agriculture

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 251106 new and genuine, sourced directly from Erich Jaeger.

How is 251106 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

For cable diameter
6,00mm - 10,00mm
Contact termination
plug-in contact
Protection
IP 54, IP X4
Type of seal
screw cap
Contact insert color
black
Description
with socket contacts instead of pin contacts
Product group
plug
Standard
DIN 9680 - similar
Industry
agriculture
Voltage [in V]
6-24
Packaging
without packaging
Contact surface
nickel (Ni)
Housing color
black
Housing material
reinforced composite
Cable outlet
cap nut
Contact version
contact sleeve
Features of plug-in contacts
flat terminal
No. of poles
03
€6.86per piece · ex VAT · box of 250
