Erich Jaeger 251095Genuine Erich Jaeger

2P/24V(135A) Plug (VG 96917 E001B)

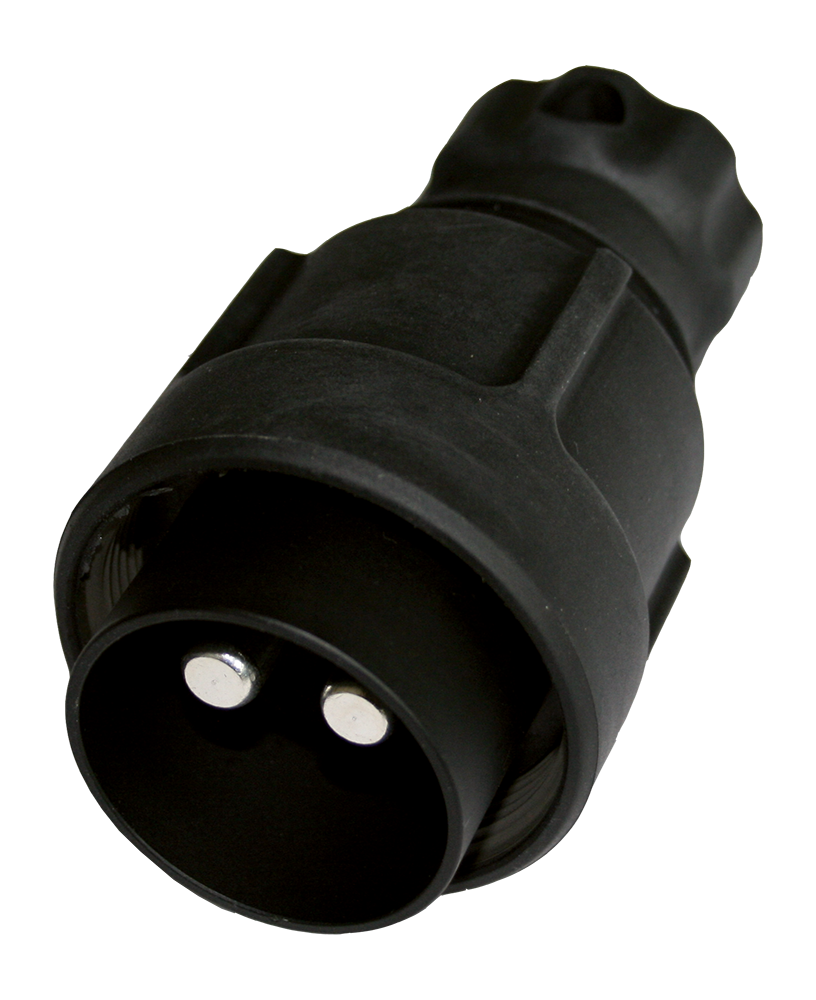

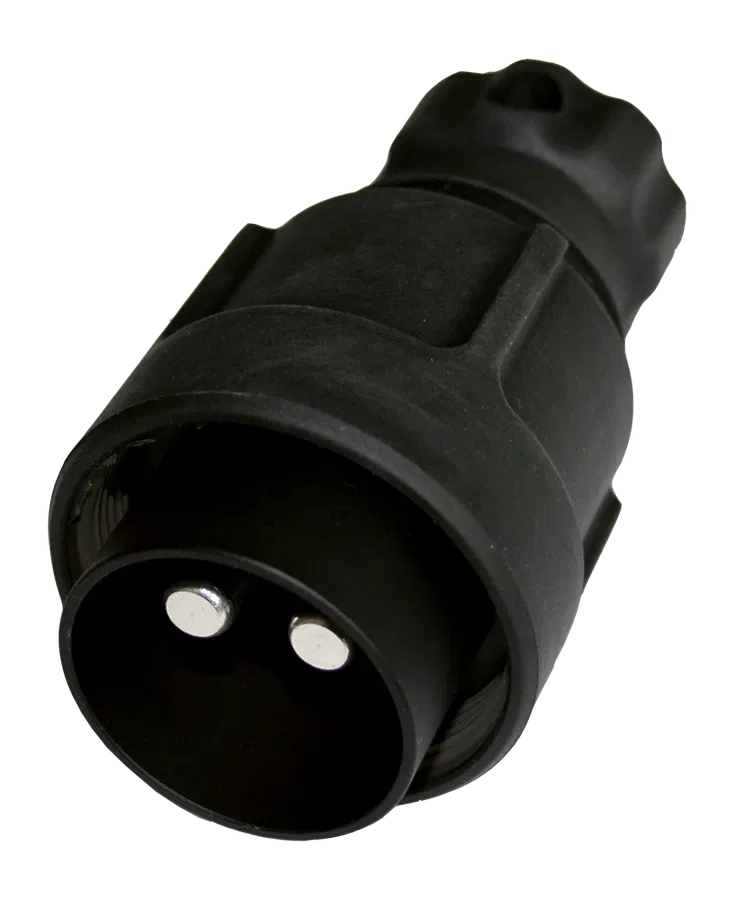

Name: Erich Jaeger 251095 2P/24V(135A) Plug (VG 96917 E001B)
Brand: Erich Jaeger
SKU: CR-EJ-251095
Price: 58.68 EUR
Availability: InStock

€58.68per piece · ex VAT

Sold per box of 30 pieces — €1,760.40 per box

Ships within 1 week

Free shipping from €500 · below that €25 flat

Rather request a quote? · Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardVG 96917

Voltage24V

Poles2P

Categoryplug

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplier	Reference numbers
Europart	`4830051095`
Hella	`8JA 001 931-061`
Hofmei	`2820004161`
Maehler & Kaege	`600942004`
Würth	`0997768419090 1`

Product context

Product description and application

What does 251095 do?

Erich Jaeger 251095 is 2P/24V(135A) Plug (VG 96917 E001B). In practice this plug is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. VG 96917 and 24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: For cable diameter: 12,00mm, Contact termination: crimp contact, solder contact, Protection: IP 54, IP X4, IP X7, No. of seal outlets: double, Type of seal: sealing plug, Standard: VG 96917. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 251095 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

Where possible, combine related system parts in one order: 151211 2P/24V(168A) Socket (VG 96917 A002), 651910 2P/24V(135A) Cable (VG 96917), 652092 2P/24V(135A) Coil (VG 96927-12), 311181 2P/24V(300A) Adapter (STANAG 4074 / MIL-PRF-62122, VG 96917), 301108 2P/24V(168A) Coupler (VG 96917 D001) - with screw caps for connection of 2 connecting cables. That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number: 251095
Product family: plug
Standard: VG 96917
Voltage: 24V
Poles: 2P
Industry: defense vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 251095 new and genuine, sourced directly from Erich Jaeger.

How is 251095 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

For cable diameter: 12,00mm
Contact termination: crimp contact, solder contact
Protection: IP 54, IP X4, IP X7
No. of seal outlets: double
Type of seal: sealing plug
Product group: plug
Standard: VG 96917
Industry: defense vehicles
Peak current / short-term load [in A]: 245
Rated current / permanent load [in A]: 135
Voltage [in V]: 24
Packaging: retail bag
Design/Version: rubberized
Special feature: with rubberized metal screw ring (black)
Contact insert color: black
Contact surface: silver (Ag)
Housing color: black
Housing material: break-proof metal
Cable outlet: cap nut, dual cable outlet 180°
Contact version: contact pin
No. of poles: 02
Addition to standard: E001B
Contact: for max. wire cross section [in mm²]: 35,00
