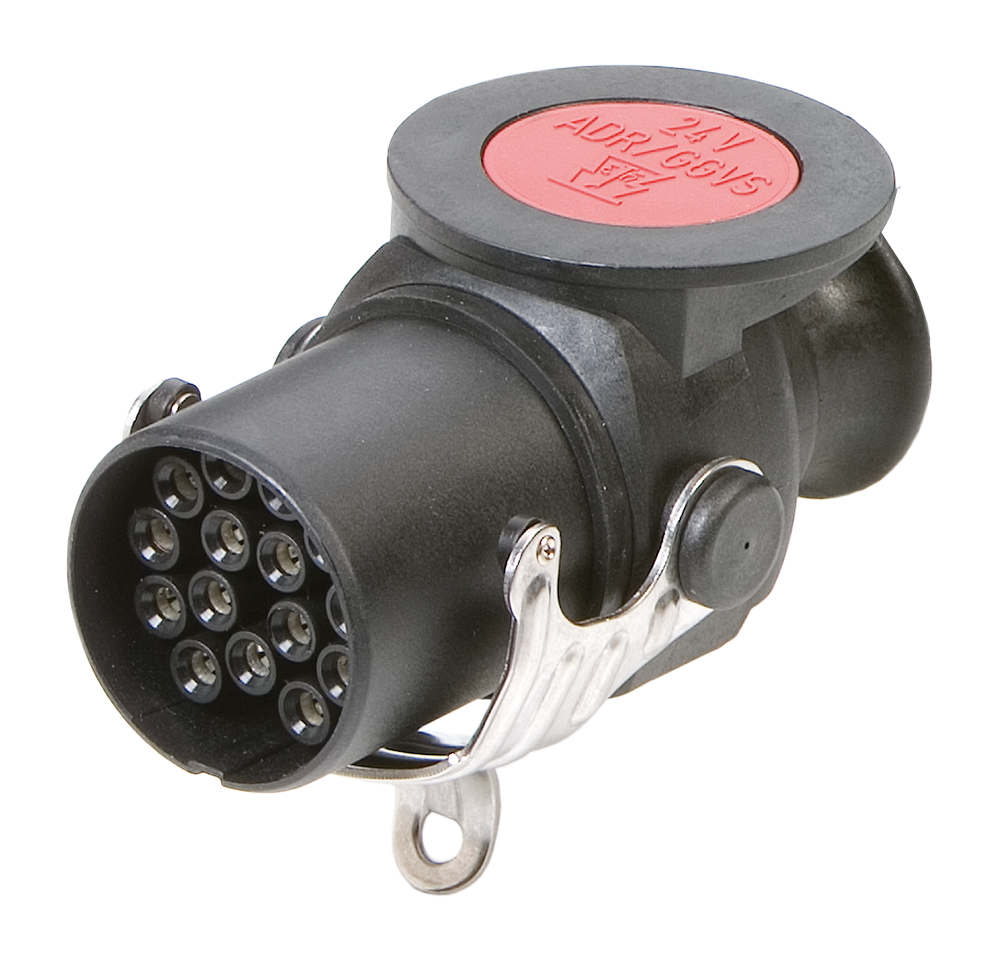

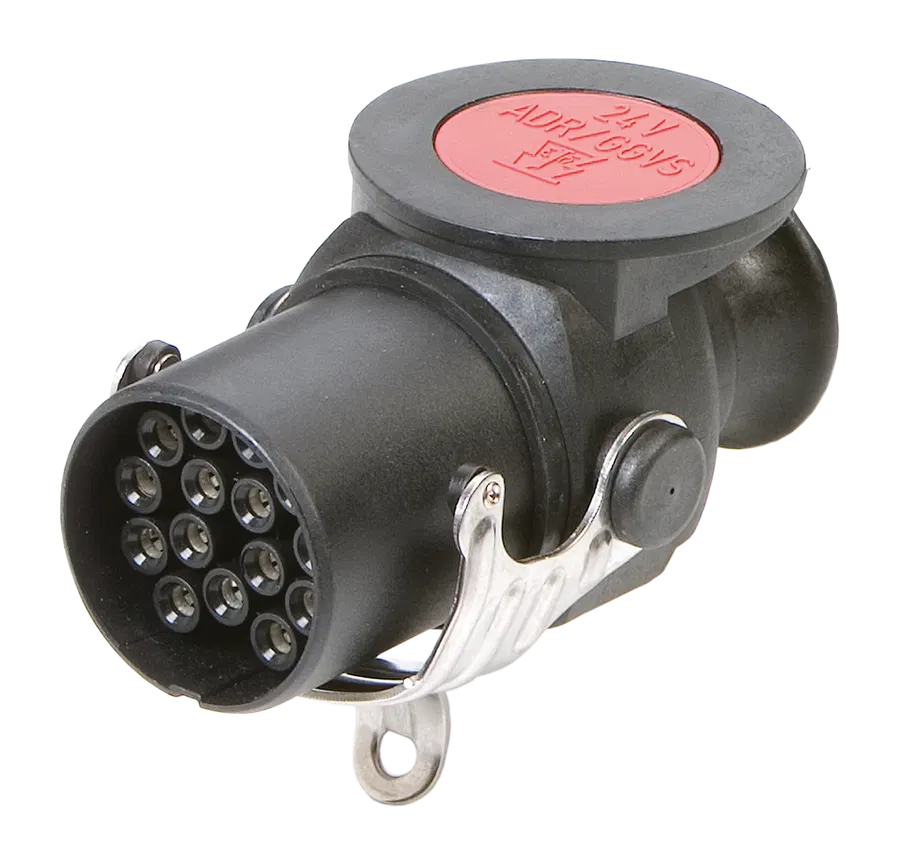

15P/24V Plug (ISO 12098 ADR)
Erich Jaeger 241024Genuine Erich Jaeger

15P/24V Plug (ISO 12098 ADR)

Price on request

Lead time: within 1 week
Request quote

Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardISO 12098
Voltage24V
Poles15P
Categoryplug

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplierReference numbers
Berner113221
Europart9500003304
Hella8JA 007 241-031
Herth & Buss51305240
Hofmei2046241024
Scania1 912 029

Product context

Product description and application

What does 241024 do?

Erich Jaeger 241024 is 15P/24V Plug (ISO 12098 ADR). In practice this plug is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. ISO 12098 and 24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: For cable diameter: 11,00mm - 13,00mm, Contact termination: crimp contact, Protection: IP 54, Packaging: PE bag, Type of seal: end cap, Standard: ISO 12098. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 241024 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

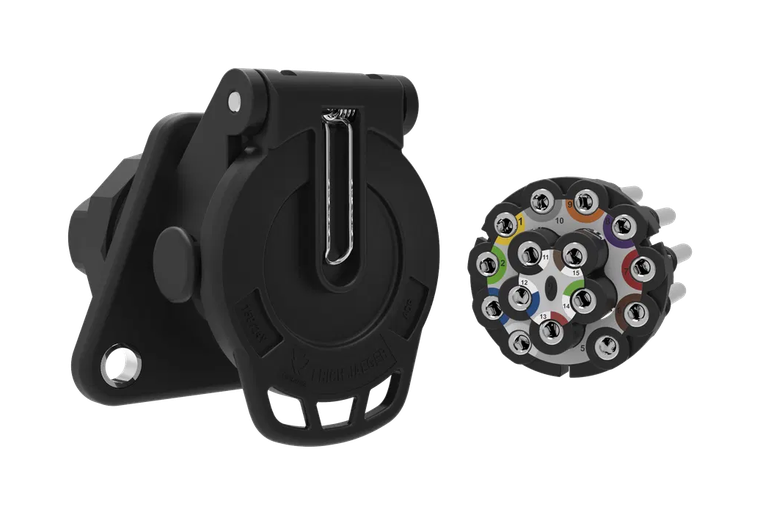

Where possible, combine related system parts in one order: 141053 15P/24V Socket (ISO 12098 ADR), 541128 15P/24V supply cable - with supplementary 15P/24V socket (ISO 12098) and 2x 8P connector, 641167 15P/24V Coil (ISO 12098 ADR), 711110 Adapter coil - with 15P/24V plug (ISO 12098) and 2x 7P/24V metal plugs (ISO 1185 + ISO 3731), 141168 15P/24V «JAEGER Basic» Socket (ISO 12098 ADR). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
241024
Product family
plug
Standard
ISO 12098
Voltage
24V
Poles
15P
Industry
commercial vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 241024 new and genuine, sourced directly from Erich Jaeger.

How is 241024 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

For cable diameter
11,00mm - 13,00mm
Contact termination
crimp contact
Protection
IP 54
Packaging
PE bag
Type of seal
end cap
Product group
plug
Standard
ISO 12098
Industry
commercial vehicles
Voltage [in V]
24
Included in delivery
crimp contact sleeves (3x 2.5mm² + 12x 1.0-1.5mm²)
Contact insert color
black
Cover insert color
red
Housing color
black
Housing material
reinforced composite
Cable outlet
end cap
Contact version
contact sleeve
No. of poles
15
Addition to standard
ADR
