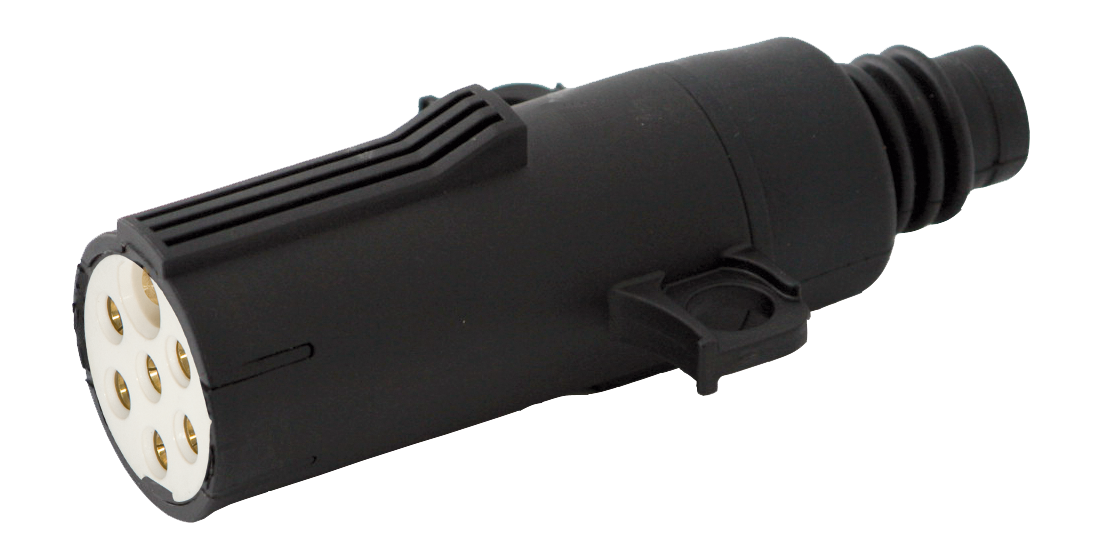

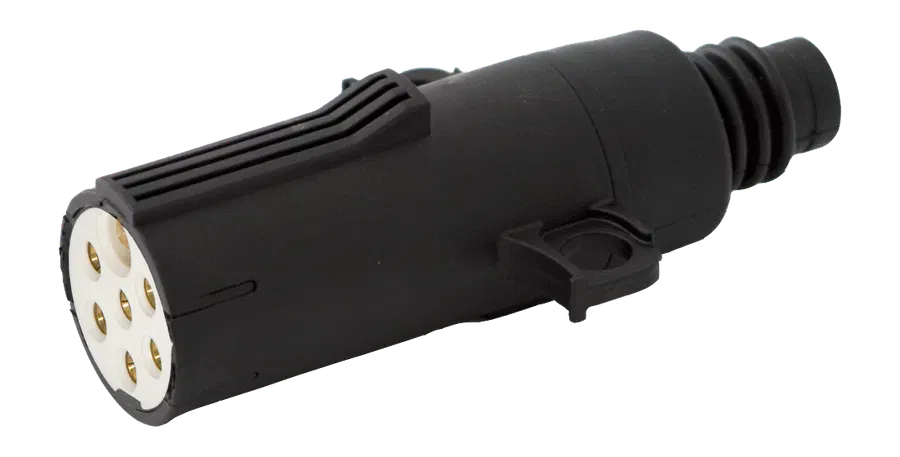

7P/24V Plug (ISO 3731 - Type S)
Erich Jaeger 211113Genuine Erich Jaeger

7P/24V Plug (ISO 3731 - Type S)

€6.46per piece · ex VAT

Sold per box of 100 pieces — €646.00 per box

Ships within 1 week
Free shipping from €500 · below that €25 flat
1

Rather request a quote? · Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardISO 3731 - Type S
Voltage24V
Poles7P
Categoryplug

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplierReference numbers
DAF1384309
Europart4830211113
Febi172658
Fricke50751305590
Hella8JA 008 084-011
Herth & Buss51305583
Hofmei673001000
Kögl6611581
Littelfuse596100
Phillips600754903
Reflexallen13000.8300
Scania2037736
Schmitz Cargobull064711
Volvo85103347

Product context

Product description and application

What does 211113 do?

Erich Jaeger 211113 is 7P/24V Plug (ISO 3731 - Type S). In practice this plug is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. ISO 3731 - Type S and 24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: For cable diameter: 10,00mm - 12,00mm, Contact termination: screw contact, Protection: IP 44, Type of seal: grommet, Contact insert color: white, Standard: ISO 3731 - Type S. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 211113 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

Where possible, combine related system parts in one order: 111083 7P/24V Socket (ISO 3731 - Type S), 511121 7P/24V supply cable - with supplementary 7P/24V socket (ISO 3731) and 8P connector, 611081 7P/24V Coil (ISO 3731 - Type S), 711110 Adapter coil - with 15P/24V plug (ISO 12098) and 2x 7P/24V metal plugs (ISO 1185 + ISO 3731), 111129 7P/24V Socket (ISO 3731 - Type S). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
211113
Product family
plug
Standard
ISO 3731 - Type S
Voltage
24V
Poles
7P
Industry
commercial vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 211113 new and genuine, sourced directly from Erich Jaeger.

How is 211113 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

For cable diameter
10,00mm - 12,00mm
Contact termination
screw contact
Protection
IP 44
Type of seal
grommet
Contact insert color
white
Product group
plug
Standard
ISO 3731 - Type S
Industry
commercial vehicles
Voltage [in V]
24
Packaging
retail bag
Contact surface
standard (CuZn)
Housing color
black
Housing material
reinforced composite
Cable outlet
grommet
No. of poles
07
