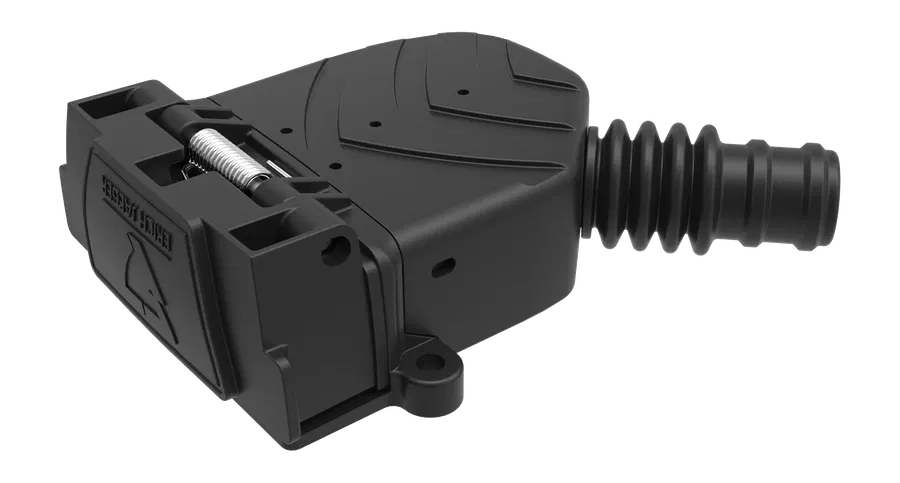

7P/12V 100% waterproof «JAEGER Expert» Socket (AS 4177.5)
Erich Jaeger 151312Genuine Erich Jaeger

7P/12V 100% waterproof «JAEGER Expert» Socket (AS 4177.5)

Price on request

Lead time: within 1 week
Request quote

Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardAS 4177.5
Voltage12V
Poles7P
Categorysocket

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

Product context

Product description and application

What does 151312 do?

Erich Jaeger 151312 is 7P/12V 100% waterproof «JAEGER Expert» Socket (AS 4177.5). In practice this socket is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. AS 4177.5 and 12V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Contact termination: crimp contact, plug-in contact, Protection: IP X7, IP X9K, Packaging: PE bag, Branding: ERICH JAEGER, No. of seal outlets: single, Standard: AS 4177.5. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 151312 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

Where possible, combine related system parts in one order: 611263 7P/12V «ExperTech™» Straight Cable (SAE J560 Primary), 221088 7+6P/12V Plug (NEN 6120), 601040 7P/12V Coil (ISO 1724 - Type N), 311161 Mini short adapter - from vehicle (13P/12V) to trailer (7+6P/12V), 301006 7P/12V Coupler (ISO 1724 - Type N). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
151312
Product family
socket
Standard
AS 4177.5
Voltage
12V
Poles
7P
Industry
cars

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 151312 new and genuine, sourced directly from Erich Jaeger.

How is 151312 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Contact termination
crimp contact, plug-in contact
Protection
IP X7, IP X9K
Packaging
PE bag
Branding
ERICH JAEGER
No. of seal outlets
single
Product group
socket
Standard
AS 4177.5
Industry
cars
Brand
JAEGER Expert
Voltage [in V]
12
Included in delivery
contact insert, contacts, cover cap, seal
Strain relief
without strain relief
Type of seal
grommet
Product supplement
100% waterproof
Contact insert color
black
Contact surface
tin (Sn)
Cover material
reinforced composite
Housing color
black
Housing material
reinforced composite
Cable outlet
cable outlet 45°
Contact version
contact sleeve
Features of plug-in contacts
flat terminal
No. of poles
07
Contact: for max. wire cross section [in mm²]
2,50
Size of plug-in contacts
2.8mm MCP
