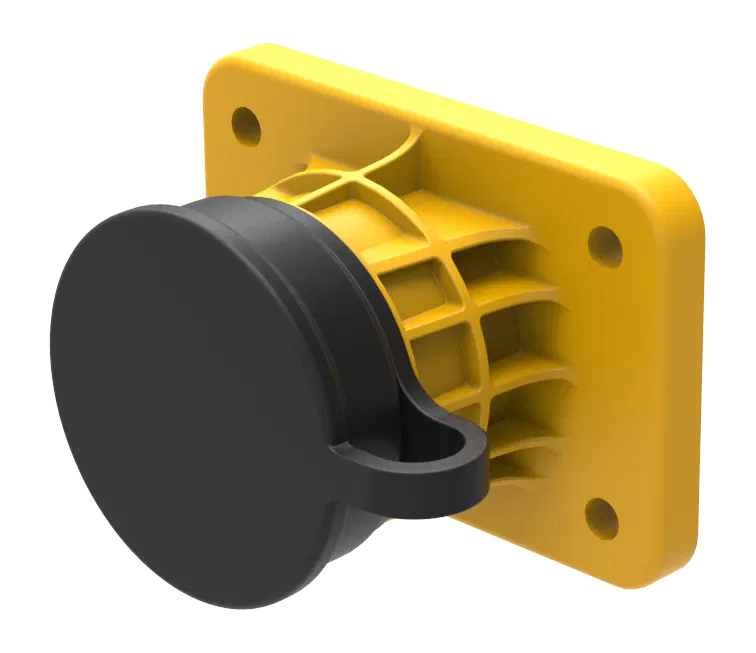

2P/24V Socket (VG 96917)
Erich Jaeger 151275Genuine Erich Jaeger

2P/24V Socket (VG 96917)

Price on request

Lead time: within 1 week
Request quote

Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardVG 96917
Voltage24V
Poles2P
Categorysocket

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplierReference numbers
Hella8JB 001 935-061
Scania2 412 490

Product context

Product description and application

What does 151275 do?

Erich Jaeger 151275 is 2P/24V Socket (VG 96917). In practice this socket is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. VG 96917 and 24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Contact termination: crimp contact, solder contact, Protection: IP 54, IP X4, IP X7, Cover version: push-on cap, Cover color: black, Cover material: rubber, Standard: VG 96917. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 151275 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

Where possible, combine related system parts in one order: 651910 2P/24V(135A) Cable (VG 96917), 251097 2P/24V(135A) Plug (VG 96917 E001A), 652092 2P/24V(135A) Coil (VG 96927-12), 311181 2P/24V(300A) Adapter (STANAG 4074 / MIL-PRF-62122, VG 96917), 301108 2P/24V(168A) Coupler (VG 96917 D001) - with screw caps for connection of 2 connecting cables. That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
151275
Product family
socket
Standard
VG 96917
Voltage
24V
Poles
2P
Industry
defense vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 151275 new and genuine, sourced directly from Erich Jaeger.

How is 151275 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Contact termination
crimp contact, solder contact
Protection
IP 54, IP X4, IP X7
Cover version
push-on cap
Cover color
black
Cover material
rubber
Product group
socket
Standard
VG 96917
Industry
defense vehicles
Voltage [in V]
24
Packaging
without packaging
Contact surface
silver (Ag)
Housing color
yellow (RAL 1021)
Housing material
reinforced composite
Contact version
contact sleeve
No. of poles
02
