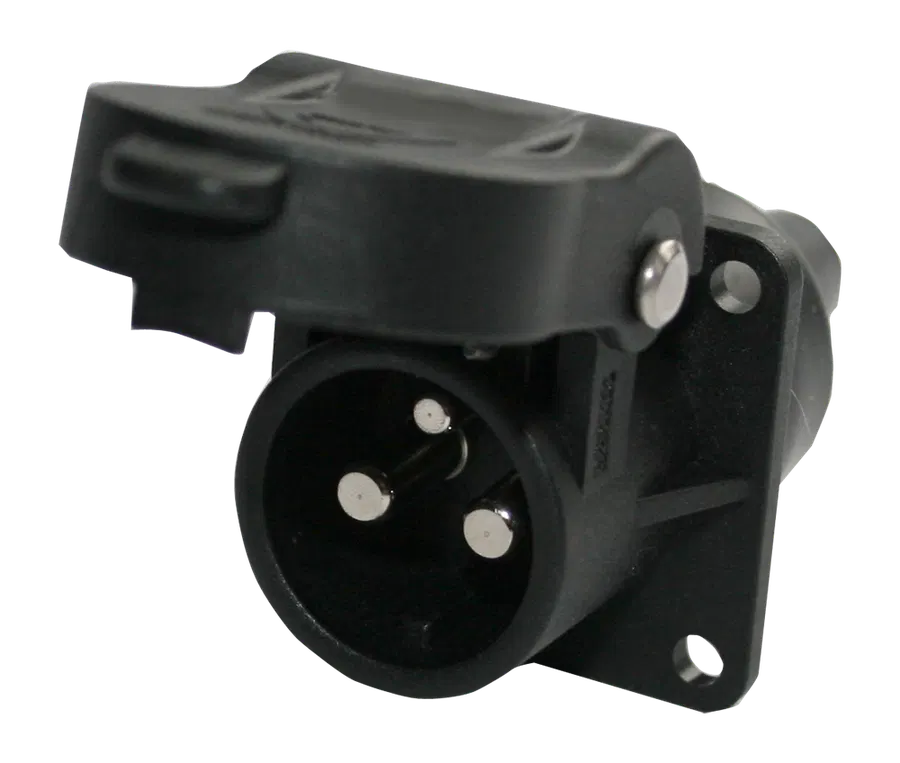

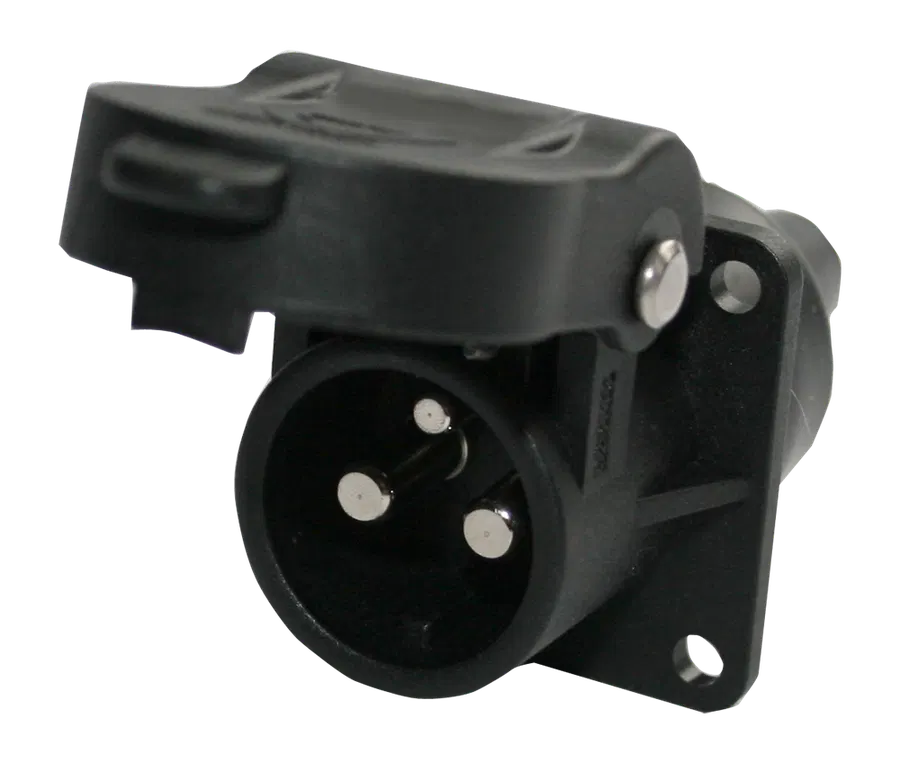

3P/6-24V socket with pin contacts (DIN 9680 - similar) - with pin contacts instead of socket contacts
Erich Jaeger 151166Genuine Erich Jaeger

3P/6-24V socket with pin contacts (DIN 9680 - similar) - with pin contacts instead of socket contacts

Price on request

Lead time: within 1 week
Request quote

Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardDIN 9680 - similar
Voltage6-24V
Poles3P
Categorysocket

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

Product context

Product description and application

What does 151166 do?

Erich Jaeger 151166 is 3P/6-24V socket with pin contacts (DIN 9680 - similar) - with pin contacts instead of socket contacts. In practice this socket is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. DIN 9680 - similar and 6-24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Protection: IP 54, IP X4, Type of seal: grommet, Cover color: black, Cover material: reinforced composite, Design/Version: with 4-bolt-flange, Description: with pin contacts instead of socket contacts. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 151166 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

Where possible, combine related system parts in one order: 251249 3P/6-24V(10A) Cable (DIN 9680), 251100 3P/6-24V(25A) Plug (DIN 9680), 651535 3P/24V(25A) Coil (without standard), 251267 3P/6-24V(32A) Plug (DIN 9680), 251247 3P/6-24V(25A) Plug (DIN 9680). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
151166
Product family
socket
Standard
DIN 9680 - similar
Voltage
6-24V
Poles
3P
Industry
agriculture

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 151166 new and genuine, sourced directly from Erich Jaeger.

How is 151166 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Protection
IP 54, IP X4
Type of seal
grommet
Cover color
black
Cover material
reinforced composite
Design/Version
with 4-bolt-flange
Description
with pin contacts instead of socket contacts
Product group
socket
Standard
DIN 9680 - similar
Industry
agriculture
Voltage [in V]
6-24
Included in delivery
seal
Packaging
without packaging
Contact surface
nickel (Ni)
Housing color
black
Housing material
reinforced composite
Contact version
contact pin
Features of plug-in contacts
flat terminal
No. of poles
03
