3P/6-24V(25A) Socket (DIN 9680)
Erich Jaeger 151130Genuine Erich Jaeger

3P/6-24V(25A) Socket (DIN 9680)

€4.49per piece · ex VAT

Sold per box of 190 pieces — €853.10 per box

Ships within 1 week
Free shipping from €500 · below that €25 flat
1

Rather request a quote? · Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardDIN 9680
Voltage6-24V
Poles3P
Categorysocket

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplierReference numbers
Aspöck13-3193-507
Claas6005010046
Deutz260390200
Europart9501241286
Fricke50751305135
Hella8JB 001 933-011
Herth & Buss51305135
Hofmei2820004147
Iveco5170243
Littelfuse681700
OEM51305135

Product context

Product description and application

What does 151130 do?

Erich Jaeger 151130 is 3P/6-24V(25A) Socket (DIN 9680). In practice this socket is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. DIN 9680 and 6-24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Contact termination: plug-in contact, Protection: IP 54, IP X4, Packaging: without packaging, Type of seal: grommet, Cover color: black, Standard: DIN 9680. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 151130 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

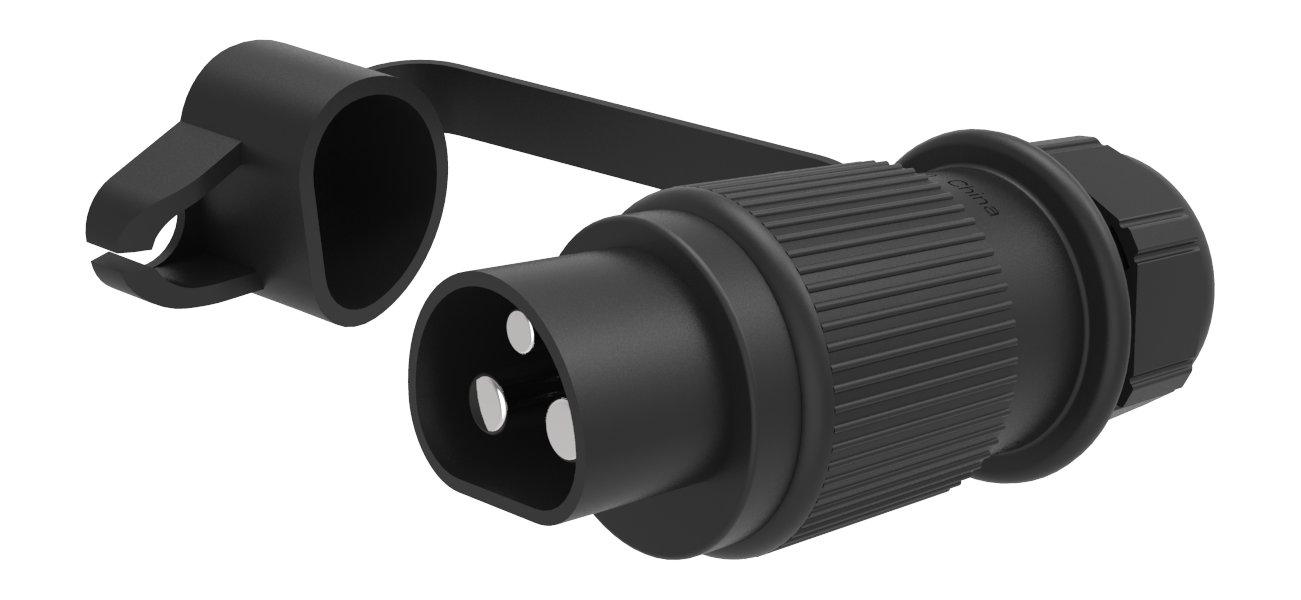

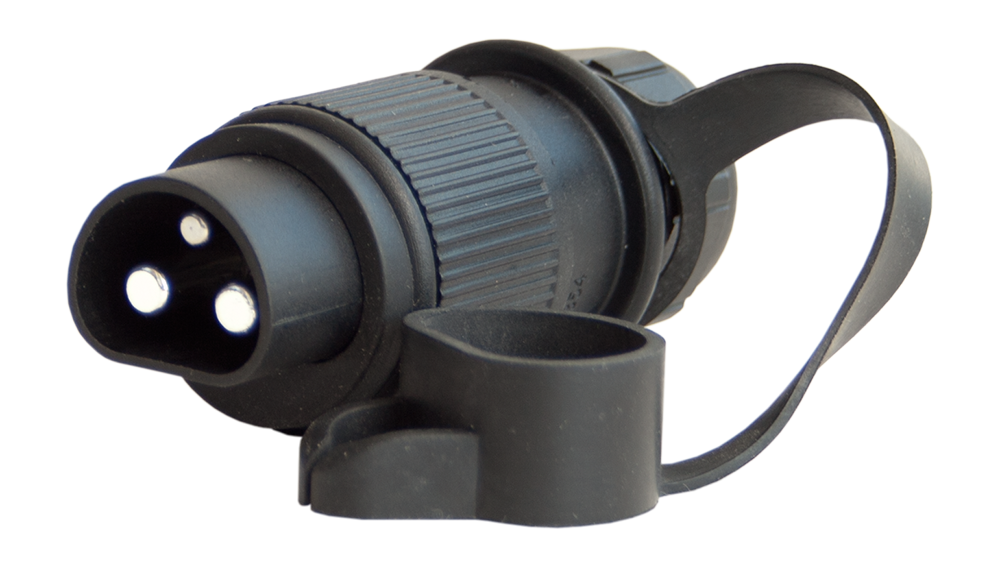

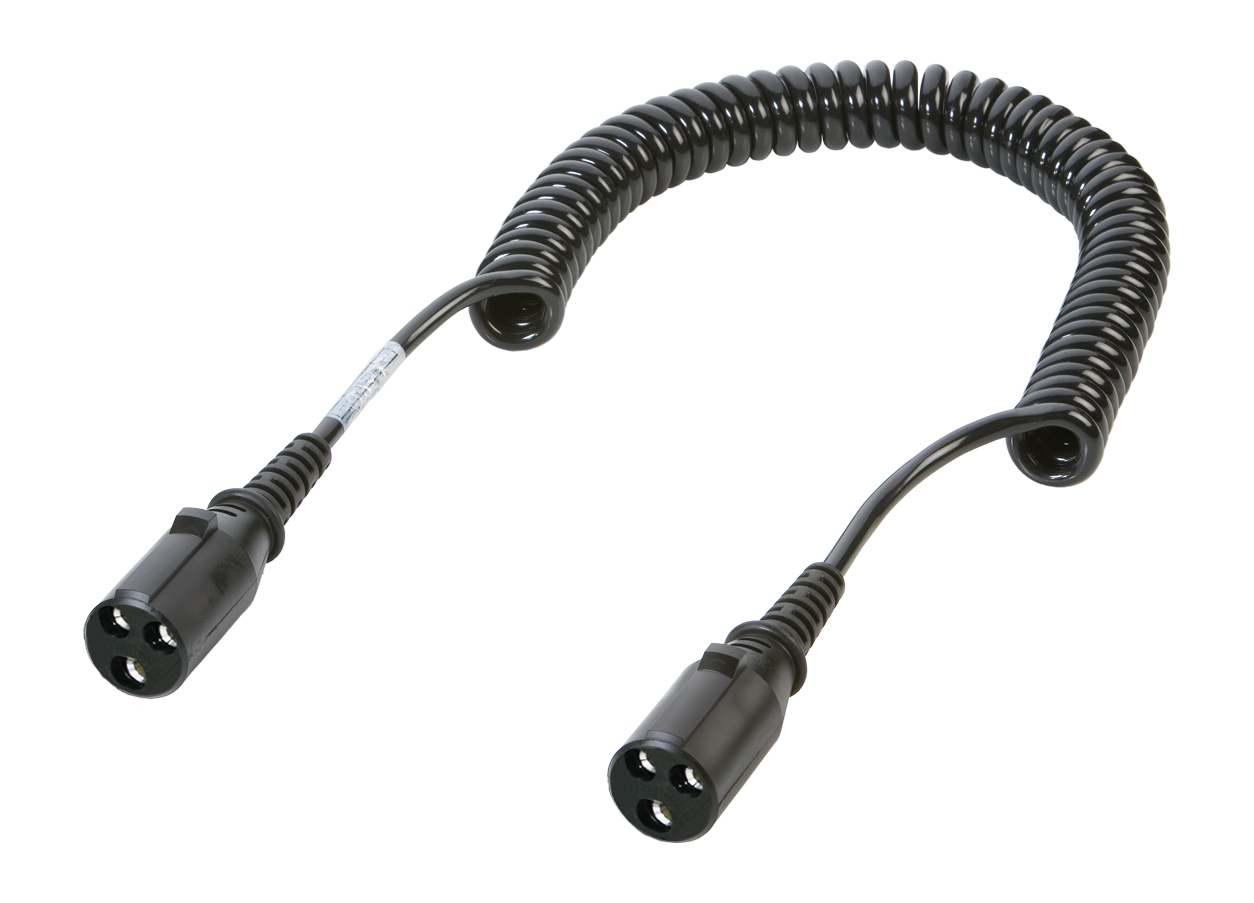

Where possible, combine related system parts in one order: 251249 3P/6-24V(10A) Cable (DIN 9680), 251100 3P/6-24V(25A) Plug (DIN 9680), 651535 3P/24V(25A) Coil (without standard), 251267 3P/6-24V(32A) Plug (DIN 9680), 251247 3P/6-24V(25A) Plug (DIN 9680). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
151130
Product family
socket
Standard
DIN 9680
Voltage
6-24V
Poles
3P
Industry
agriculture

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 151130 new and genuine, sourced directly from Erich Jaeger.

How is 151130 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Contact termination
plug-in contact
Protection
IP 54, IP X4
Packaging
without packaging
Type of seal
grommet
Cover color
black
Product group
socket
Standard
DIN 9680
Industry
agriculture
Rated current / permanent load [in A]
25
Voltage [in V]
6-24
Included in delivery
seal
Design/Version
with 2-bolt-flange
Contact surface
nickel (Ni)
Cover material
reinforced composite
Housing color
black
Housing material
reinforced composite
Contact version
contact sleeve
Features of plug-in contacts
flat terminal
No. of poles
03
€4.49per piece · ex VAT · box of 190
