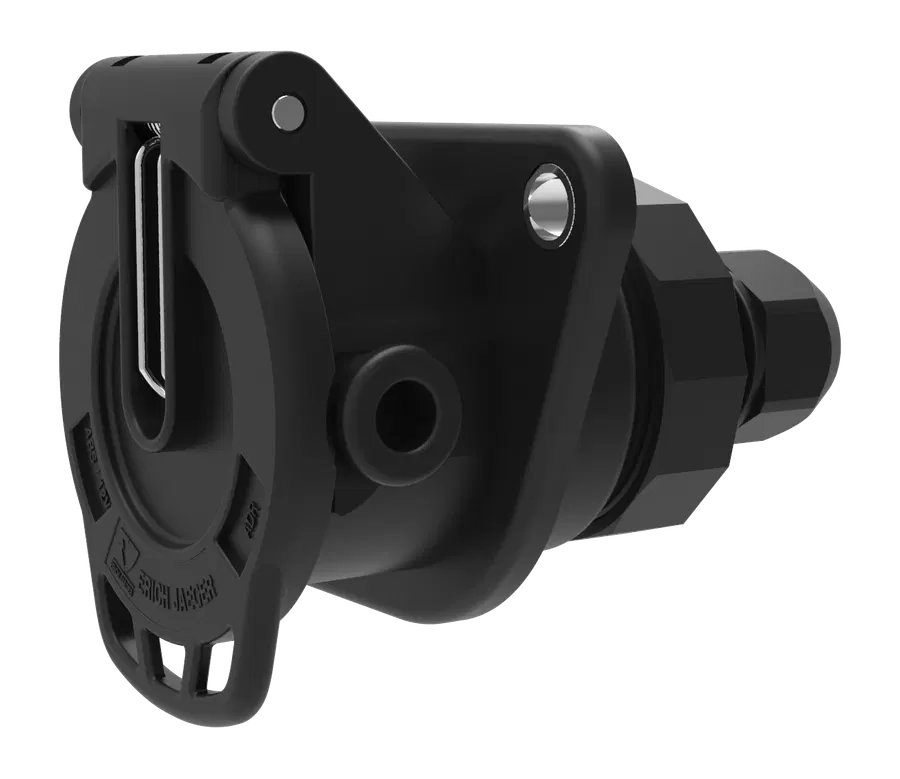

5P/12V «JAEGER Basic» Socket (ISO 7638-2 ABS, ADR)
Erich Jaeger 141160Genuine Erich Jaeger

5P/12V «JAEGER Basic» Socket (ISO 7638-2 ABS, ADR)

Price on request

Lead time: within 1 week
Request quote

Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardISO 7638-2
Voltage12V
Poles5P
Categorysocket

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

Product context

Product description and application

What does 141160 do?

Erich Jaeger 141160 is 5P/12V «JAEGER Basic» Socket (ISO 7638-2 ABS, ADR). In practice this socket is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. ISO 7638-2 and 12V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: For cable diameter: 9,70mm - 11,30mm, Contact termination: crimp contact, Protection: IP 54, IP X7, Packaging: PE bag, Branding: ERICH JAEGER, Standard: ISO 7638-2. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 141160 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

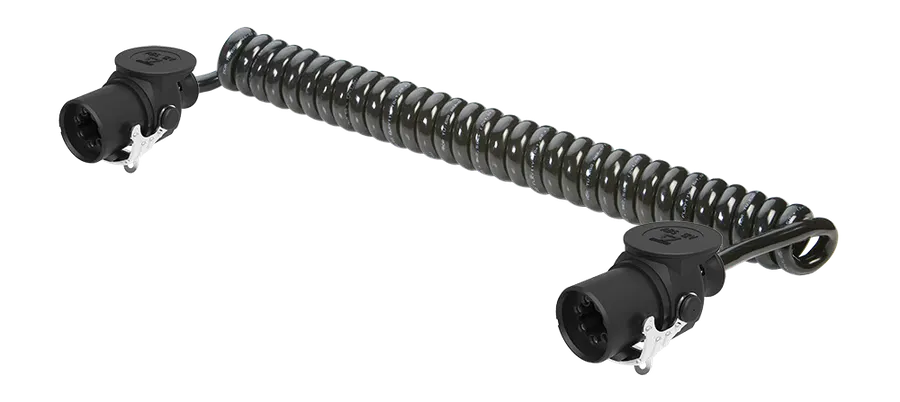

Where possible, combine related system parts in one order: 382542 Bayonet outlet for cable connection - for JAEGER Expert sockets, 241071 7P/12V Plug (ISO 7638-2 ABS, EBS, ADR), 641149 7P/12V Coil (ISO 7638-2 ABS, ADR), 381089 Bayonet outlet for cable connection, 050966 Stuff plug - for JAEGER Expert socket - is mandatory for unoccupied chambers in order to ensure water tightness). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
141160
Product family
socket
Standard
ISO 7638-2
Voltage
12V
Poles
5P
Industry
commercial vehicles, agriculture

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 141160 new and genuine, sourced directly from Erich Jaeger.

How is 141160 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

For cable diameter
9,70mm - 11,30mm
Contact termination
crimp contact
Protection
IP 54, IP X7
Packaging
PE bag
Branding
ERICH JAEGER
Product group
socket
Standard
ISO 7638-2
Industry
commercial vehicles, agriculture
Brand
JAEGER Basic
Voltage [in V]
12
Included in delivery
5 contacts, crimp contact pins (2x 4.0mm² + 3x 1.5mm²), screw cap
Type of seal
screw cap
Contact surface
nickel (Ni)
Cover material
reinforced composite
Housing color
black
Housing material
reinforced composite
Cable outlet
cable outlet 180°, cap nut
Contact version
contact pin with seal
No. of poles
07
Addition to standard
ABS, ADR
