7P/24V Socket (ISO 7638-1 ABS, EBS, ADR)
Erich Jaeger 141070Genuine Erich Jaeger

7P/24V Socket (ISO 7638-1 ABS, EBS, ADR)

€12.47per piece · ex VAT

Sold per box of 40 pieces — €498.80 per box

Ships within 1 week
Free shipping from €500 · below that €25 flat
1

Rather request a quote? · Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardISO 7638-1
Voltage24V
Poles7P
Categorysocket

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplierReference numbers
Berner60156
DAF872898
Europart9501305256
Febi171821
Fricke50743907
Hella8JB 007 645-031
Herth & Buss51305254
Hofmei2832001086
Kögl6611591
Littelfuse583900
Scania1928584
Würth0510950169061 1

Product context

Product description and application

What does 141070 do?

Erich Jaeger 141070 is 7P/24V Socket (ISO 7638-1 ABS, EBS, ADR). In practice this socket is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. ISO 7638-1 and 24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: For cable diameter: 9,00mm - 16,00mm, Contact termination: screw contact, Protection: IP 54, Packaging: PE bag, Type of seal: screw cap, Standard: ISO 7638-1. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 141070 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

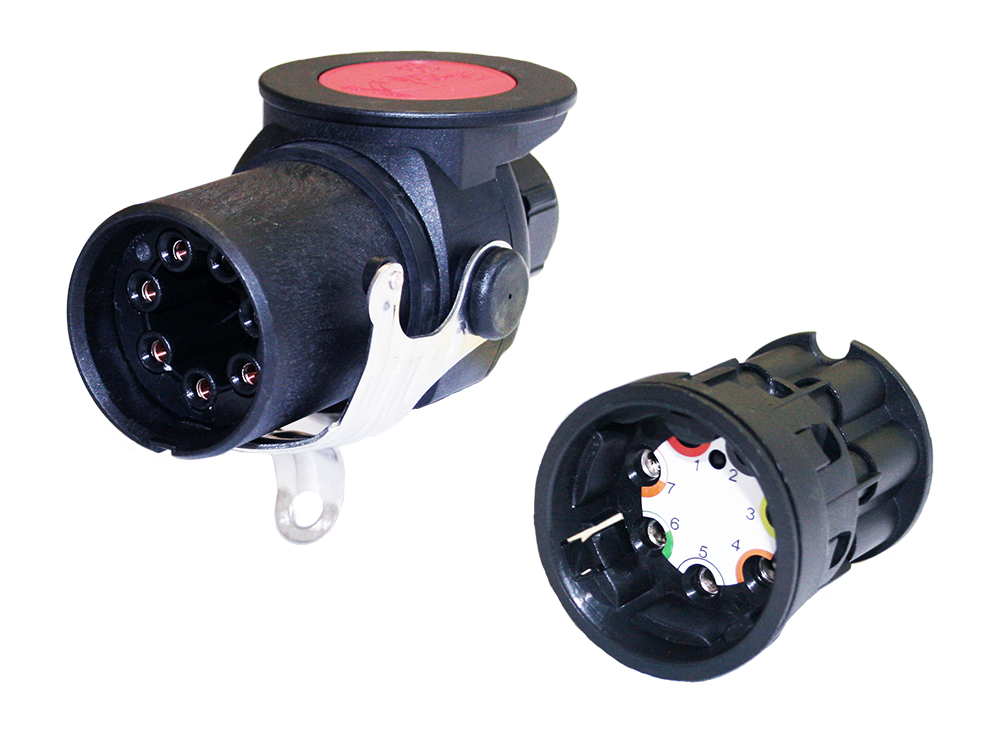

Where possible, combine related system parts in one order: 641126 7P/24V Cable (ISO 7638-1 ABS, EBS, ADR), 241070 7P/24V Plug (ISO 7638-1 ABS, EBS, ADR), 641166 7P/24V Coil (ISO 7638-1 ABS, EBS, ADR), 711110 Adapter coil - with 15P/24V plug (ISO 12098) and 2x 7P/24V metal plugs (ISO 1185 + ISO 3731), 381089 Bayonet outlet for cable connection. That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
141070
Product family
socket
Standard
ISO 7638-1
Voltage
24V
Poles
7P
Industry
commercial vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 141070 new and genuine, sourced directly from Erich Jaeger.

How is 141070 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

For cable diameter
9,00mm - 16,00mm
Contact termination
screw contact
Protection
IP 54
Packaging
PE bag
Type of seal
screw cap
Product group
socket
Standard
ISO 7638-1
Industry
commercial vehicles
Voltage [in V]
24
Included in delivery
5 contacts
Special feature
color coding for easy installation
Cover insert color
red
Cover material
reinforced composite
Housing color
black
Housing material
reinforced composite
Cable outlet
bayonet coupling, cable outlet 180°, cap nut
No. of poles
07
Addition to standard
ABS, ADR, EBS
