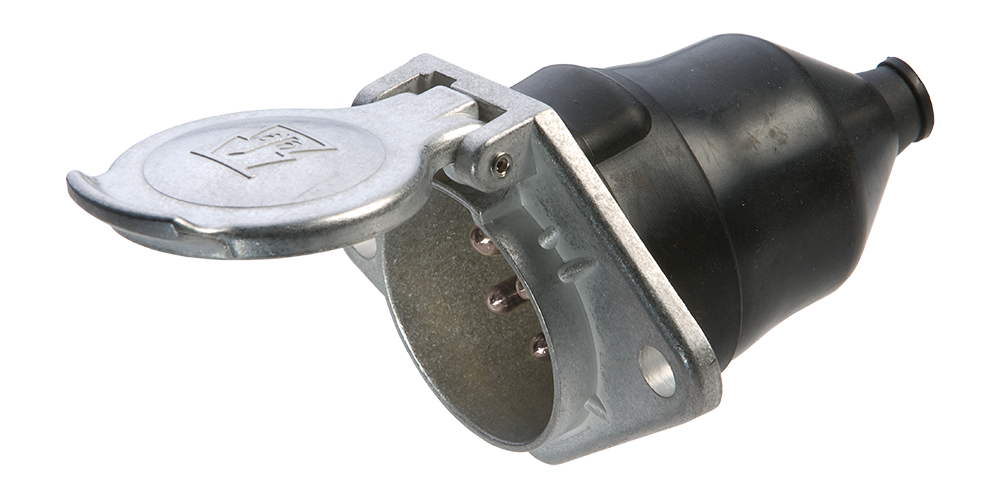

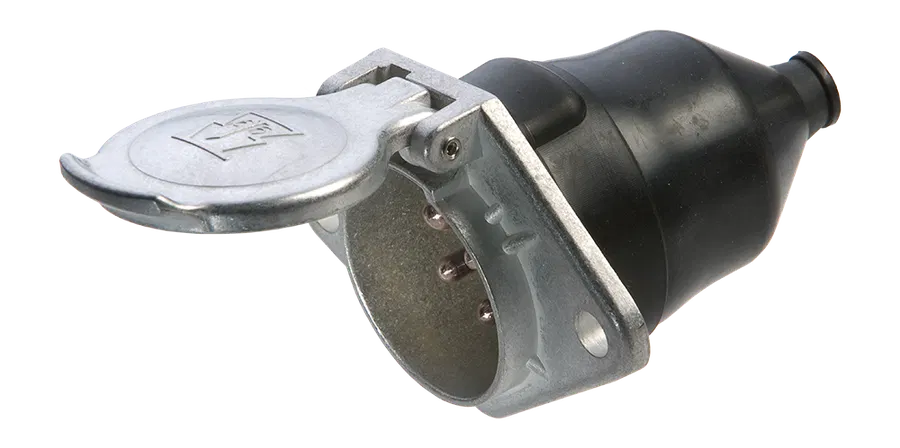

7P/24V Socket (ISO 1185 - Type N)
Erich Jaeger 111058Genuine Erich Jaeger

7P/24V Socket (ISO 1185 - Type N)

Price on request

Lead time: within 1 week
Request quote

Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardISO 1185 - Type N
Voltage24V
Poles7P
Categorysocket

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplierReference numbers
DAF130 1750
DaimlerA 006 545 06 26
Europart4830111058
Febi07343
Goldhofer603201
Hella8JB 003 833-001
Herth & Buss51305289
Hofmei2832001088
Krone5000924572
Kögl304642
Littelfuse580900
MAN81254320103
Scania20 223 817
Schmitz Cargobull060138
VDL20061552200
Volvo3 171 185

Product context

Product description and application

What does 111058 do?

Erich Jaeger 111058 is 7P/24V Socket (ISO 1185 - Type N). In practice this socket is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. ISO 1185 - Type N and 24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: For cable diameter: 9,50mm - 12,50mm, Contact termination: screw contact, Protection: IP 44, Packaging: PE bag, Set of seal outlets: centered, 180°, Standard: ISO 1185 - Type N. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 111058 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

Where possible, combine related system parts in one order: 511119 7P/24V supply cable - with 7P/24V socket (ISO 1185) and 8P connector (DIN 72580), 211009 7P/24V Plug (ISO 1185 - Type N), 611080 7P/24V Coil (ISO 1185 - Type N), 711110 Adapter coil - with 15P/24V plug (ISO 12098) and 2x 7P/24V metal plugs (ISO 1185 + ISO 3731), 382521 90° cable exit clamshell. That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
111058
Product family
socket
Standard
ISO 1185 - Type N
Voltage
24V
Poles
7P
Industry
commercial vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 111058 new and genuine, sourced directly from Erich Jaeger.

How is 111058 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

For cable diameter
9,50mm - 12,50mm
Contact termination
screw contact
Protection
IP 44
Packaging
PE bag
Set of seal outlets
centered, 180°
Product group
socket
Standard
ISO 1185 - Type N
Industry
commercial vehicles
Voltage [in V]
24
Accessories (to be ordered separately)
Screw cap Seal Sealing plug 7P seal/boot for cable termination area
Included in delivery
seal
Type of seal
seal
Contact surface
nickel (Ni)
Cover material
proof metal
Housing color
silver-colored
Housing material
break-proof metal
No. of poles
07
No. of seal outlets
single
