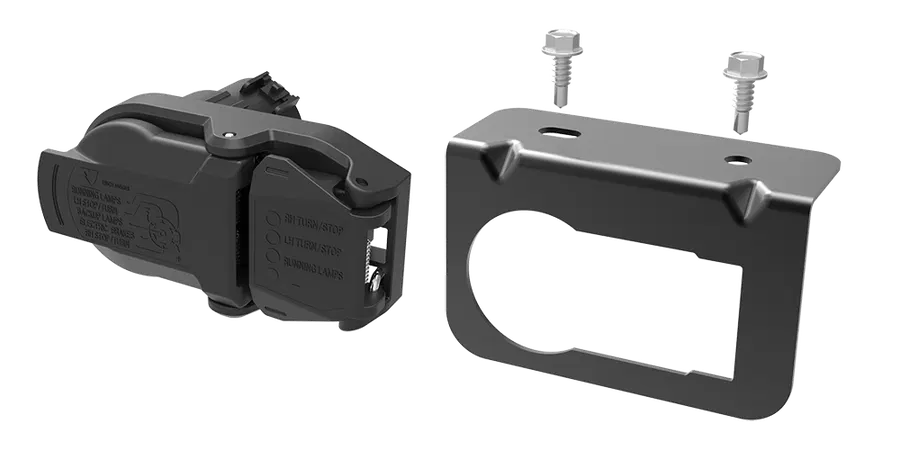

7+4P/12V Combo-Socket (SAE J1239, SAE J2863) - with superior water protection
Erich Jaeger 101431Genuine Erich Jaeger

7+4P/12V Combo-Socket (SAE J1239, SAE J2863) - with superior water protection

Price on request

Lead time: within 1 week
Request quote

Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardSAE J1239, SAE J2863
Voltage12V
Poles7P, 4P
Categorysocket

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

Product context

Product description and application

What does 101431 do?

Erich Jaeger 101431 is 7+4P/12V Combo-Socket (SAE J1239, SAE J2863) - with superior water protection. In practice this socket is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. SAE J1239, SAE J2863 and 12V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Contact termination: plug-in contact, Packaging: PE bag, Branding: ERICH JAEGER, Area of application: Towing vehicle, Cover color: black, Description: with superior water protection. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 101431 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

Where possible, combine related system parts in one order: 611263 7P/12V «ExperTech™» Straight Cable (SAE J560 Primary), 221088 7+6P/12V Plug (NEN 6120), 601040 7P/12V Coil (ISO 1724 - Type N), 311161 Mini short adapter - from vehicle (13P/12V) to trailer (7+6P/12V), 301006 7P/12V Coupler (ISO 1724 - Type N). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
101431
Product family
socket
Standard
SAE J1239, SAE J2863
Voltage
12V
Poles
7P, 4P
Industry
cars

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 101431 new and genuine, sourced directly from Erich Jaeger.

How is 101431 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Contact termination
plug-in contact
Packaging
PE bag
Branding
ERICH JAEGER
Area of application
Towing vehicle
Cover color
black
Description
with superior water protection
Product group
socket
Standard
SAE J1239, SAE J2863
Industry
cars
Temperature resistance [in °C]
-40.0 - 85.0
Voltage [in V]
12
Included in delivery
installation instructions, mounting bracket, screws
Special feature
for horizontal mounting, with water drainage
Contact surface
double-plated Sn/Ni
Cover material
reinforced composite
Housing color
black
Housing material
reinforced composite
Features of plug-in contacts
flat terminal
No. of poles
04, 07
Size of plug-in contacts
1x 6.3mm, 6x 2.8mm
