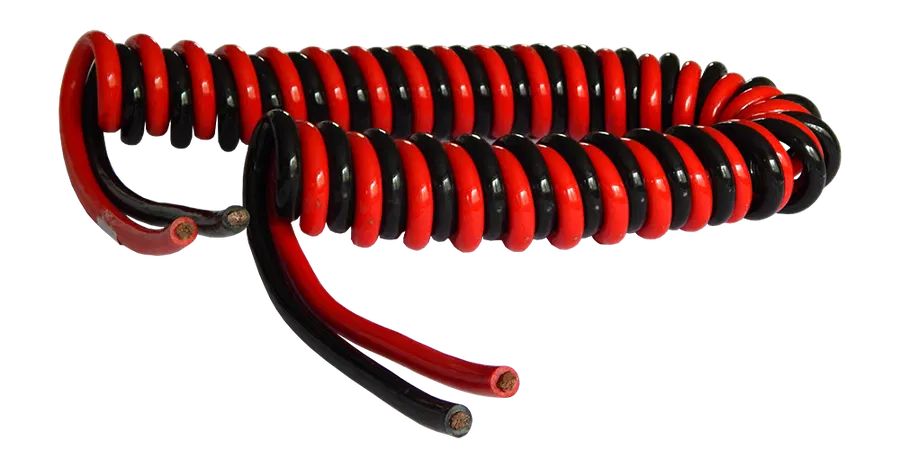

2P coil (without plug/socket)
Erich Jaeger 016559Genuine Erich Jaeger

2P coil (without plug/socket)

Price on request

Lead time: within 1 week
Request quote

Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardVG 96927-12
Voltage24V
Poles2P
Categorycoil cable

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplierReference numbers
Europart4830016559

Product context

Product description and application

What does 016559 do?

Erich Jaeger 016559 is 2P coil (without plug/socket). In practice this coil cable is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. VG 96927-12 and 24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Working length [in m]: 5, Max. working length [in m]: 6, Max. extension length [in m]: 6,00, Wire cross-sectional area: 2x 35,0mm², No. of coils: 9, Standard: VG 96927-12. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 016559 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

Where possible, combine related system parts in one order: 151211 2P/24V(168A) Socket (VG 96917 A002), 251097 2P/24V(135A) Plug (VG 96917 E001A), 311181 2P/24V(300A) Adapter (STANAG 4074 / MIL-PRF-62122, VG 96917), 151212 2P/24V Socket (VG 96917 A001), 251098 2P/24V(168A) Plug (VG 96917). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
016559
Product family
coil cable
Standard
VG 96927-12
Voltage
24V
Poles
2P
Industry
defense vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 016559 new and genuine, sourced directly from Erich Jaeger.

How is 016559 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Working length [in m]
5
Max. working length [in m]
6
Max. extension length [in m]
6,00
Wire cross-sectional area
2x 35,0mm²
No. of coils
9
Product group
coil cable
Standard
VG 96927-12
Industry
defense vehicles
Peak current / short-term load [in A]
245
Rated current / permanent load [in A]
135
Temperature resistance [in °C]
-40.0 - 80.0
Voltage [in V]
24
Packaging
without packaging
Special feature
nested cable
Cable color
black/red
Material of cable
PUR
No. of connected plugs
0
No. of connected sockets
0
No. of poles
02
Outer coil diameter [in mm]
70,00
cable cross-sectional area [in mm]
13,50
