Erich Jaeger alternative
016558

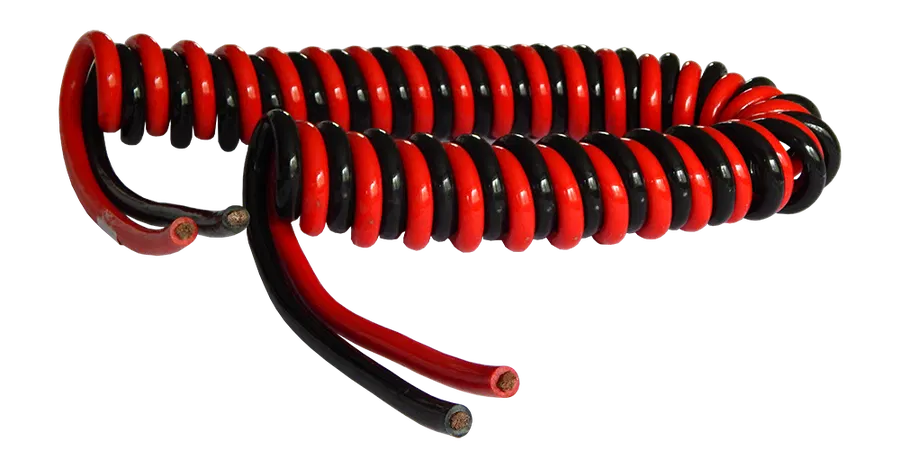

2P coil (without plug/socket)
Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.
ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.
External article references
Known cross-reference numbers
These supplier, distributor and vehicle-brand references were present in the supplied highrunner overview. Use them for identification; ConnectorRoute still validates the technical replacement route before quoting.
Brand / supplier
Reference numbers
Europart
4830016558
System products
Related products in the same connection route
Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.
Product context
Product description and application
Erich Jaeger 016558 is 2P coil (without plug/socket). This coil cable forms the flexible link between towing vehicle and trailer. Working length, maximum extension length, cable material and conductor cross-section matter just as much as the connector standard. VG 96927-12 and 24V should be verified against the vehicle or trailer wiring diagram. The known selection frame is VG 96927-12, 24V, 2P and defense vehicles.
What does 016558 do?
This page treats 016558 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a coil cable, the mating component and cable route are part of the decision.
Technical checks before replacing it
The public product data highlights: Max. extension length [in m]: 4,00, Wire cross-sectional area: 2x 35,0mm², Material of cable: PUR, Outer coil diameter [in mm]: 70,00, No. of connected sockets: 0, No. of connected plugs: 0 and Special feature: nested cable. These details matter because a replacement can have the right article description while still failing on cable entry, contact termination, sealing, housing material or installation space.
How ConnectorRoute approaches the alternative
ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.
Products that belong in the same request

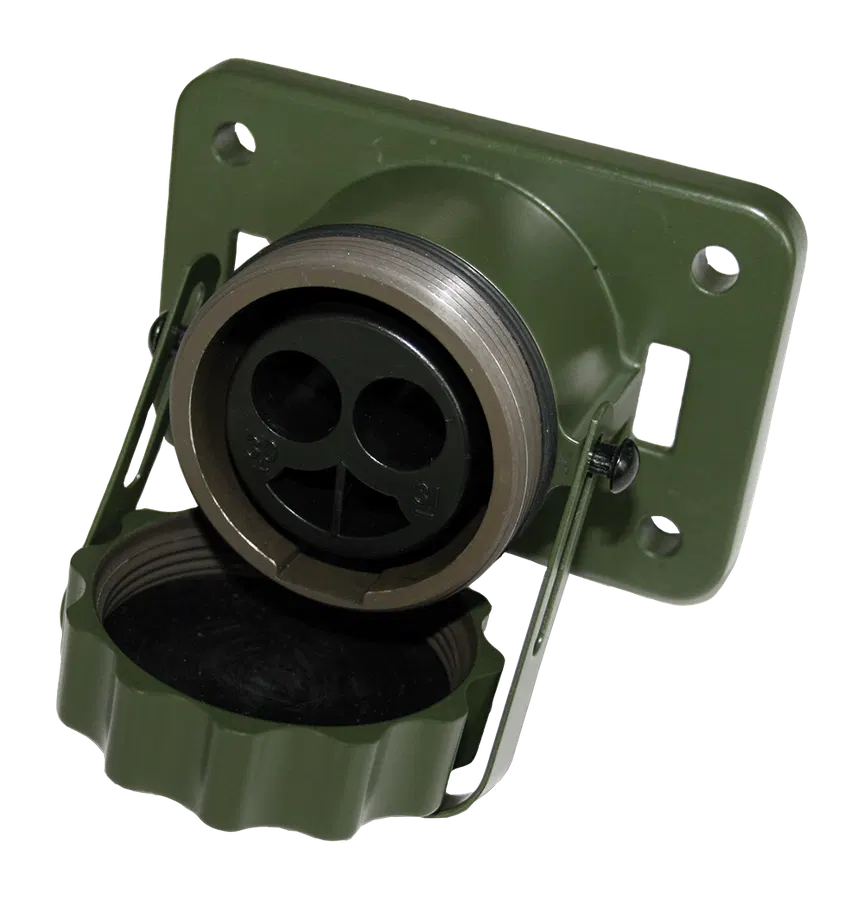

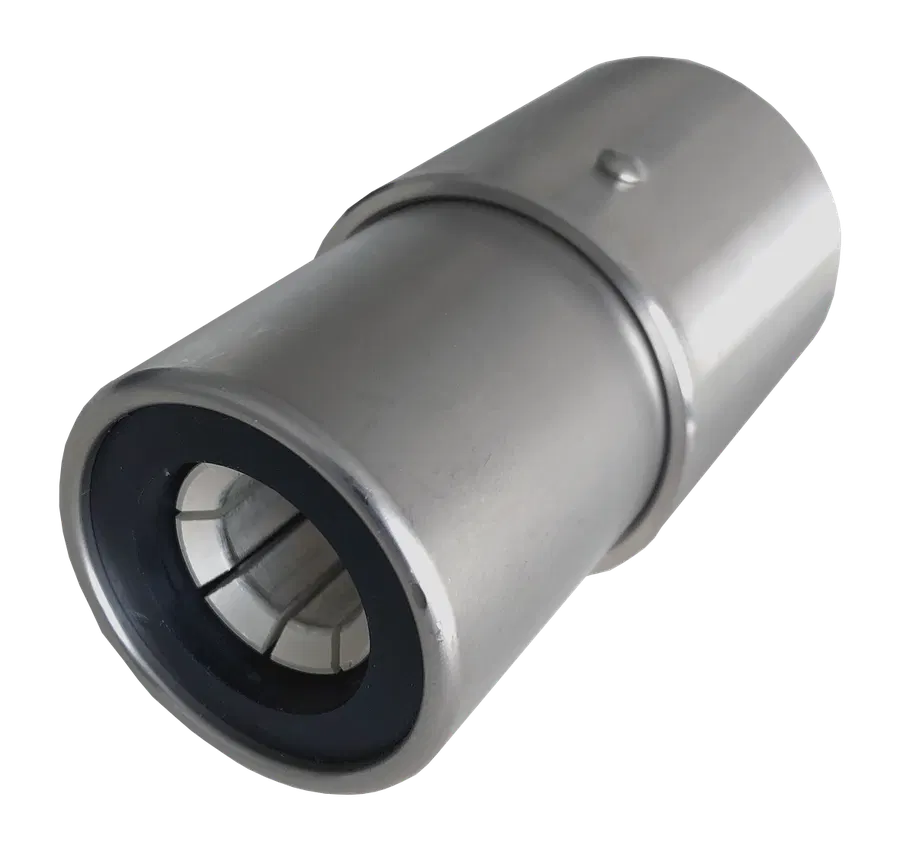

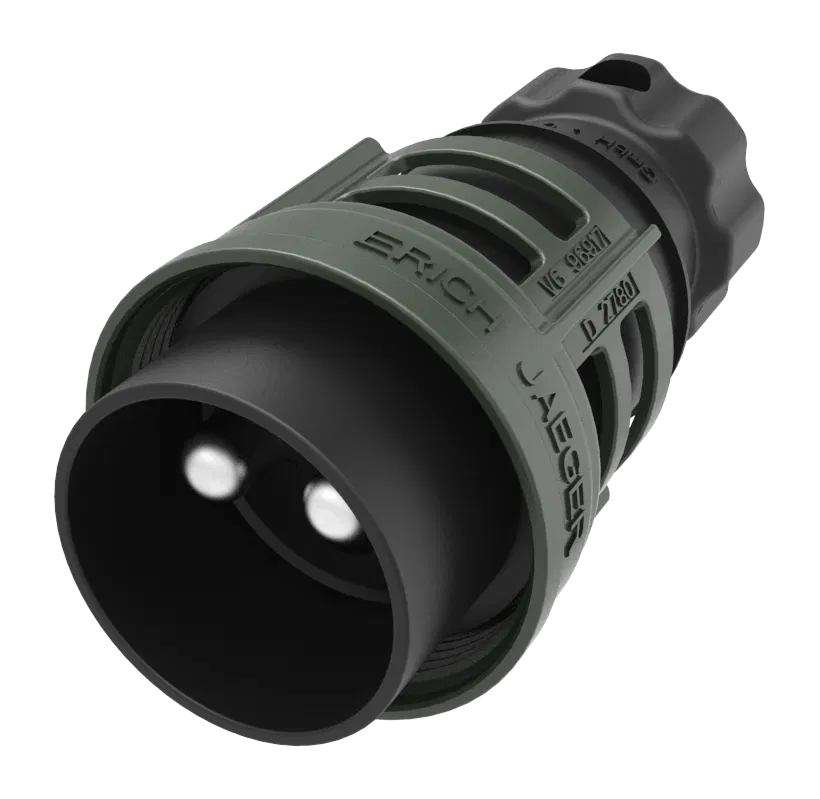

For a useful quote, include related system parts where possible: 151211 2P/24V(168A) Socket (VG 96917 A002), 251097 2P/24V(135A) Plug (VG 96917 E001A), 311181 2P/24V(300A) Adapter (STANAG 4074 / MIL-PRF-62122, VG 96917), 151212 2P/24V Socket (VG 96917 A001), 251098 2P/24V(168A) Plug (VG 96917). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.
Structured product facts
- Article number
- 016558
- Product family
- coil cable
- Category
- coil cable
- Standard
- VG 96927-12
- Voltage
- 24V
- Poles
- 2P
- Industry
- defense vehicles
- Related product families
- component
- Working length [in m]
- 3.5
- Max. working length [in m]
- 4
- Max. extension length [in m]
- 4.5
- Wire cross-sectional area
- 2x 35,0mm²
- No. of coils
- 9
Questions about this reference
Can Erich Jaeger 016558 be replaced one-to-one?
Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.
What should I send with an enquiry?
Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.
Why does the page mention related products?
Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.
Technical specifications
Technical data
- Working length [in m]
- 3.5
- Max. working length [in m]
- 4
- Max. extension length [in m]
- 4.5
- Wire cross-sectional area
- 2x 35,0mm²
- No. of coils
- 9
- Product group
- coil cable
- Standard
- VG 96927-12
- Industry
- defense vehicles
- Peak current / short-term load [in A]
- 245
- Rated current / permanent load [in A]
- 135
- Temperature resistance [in °C]
- -40.0 - 80.0
- Voltage [in V]
- 24
- Packaging
- without packaging
- Special feature
- nested cable
- Cable color
- black/red
- Material of cable
- PUR
- No. of connected plugs
- 0
- No. of connected sockets
- 0
- No. of poles
- 02
- Max. extension length [in m]
- 4,00
- Outer coil diameter [in mm]
- 70,00
- Wire cross-sectional area
- 2x 35,0mm²
- cable cross-sectional area [in mm]
- 13,50
