7P coil (without plug/socket)
Erich Jaeger 016271Genuine Erich Jaeger

7P coil (without plug/socket)

Price on request

Lead time: within 1 week
Request quote

Official Erich Jaeger product page

ConnectorRoute is an authorized distributor of Erich Jaeger products. Article numbers of other brands are used for identification and cross-reference purposes only.

StandardISO 3732 - Type S, ISO 1185 - Type N, ISO 3731 - Type S, ISO 1724 - Type N
Voltage12V, 24V
Poles7P
Categorycoil cable

System products

Genuine Erich Jaeger parts that are often ordered together with this article: matching plugs, sockets, coil cables and adapters.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification only.

Brand / supplierReference numbers
Herth & Buss51276531000
Scania20 223 051

Product context

Product description and application

What does 016271 do?

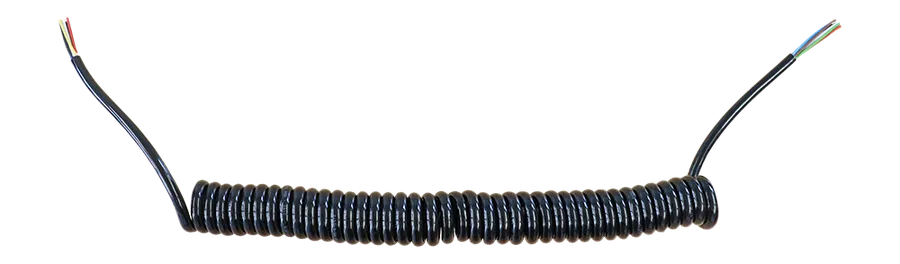

Erich Jaeger 016271 is 7P coil (without plug/socket). In practice this coil cable is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. ISO 3732 - Type S, ISO 1185 - Type N, ISO 3731 - Type S, ISO 1724 - Type N and 12V, 24V should be verified against the vehicle or trailer wiring diagram.

Technical checks before ordering

The public product data highlights: Working length [in m]: 3, Max. working length [in m]: 3,00, Max. extension length [in m]: 4,50, Wire cross-sectional area: 6x 1.5mm² + 1x 2.5mm², No. of coils: 43, Standard: ISO 3732 - Type S, ISO 1185 - Type N, ISO 3731 - Type S, ISO 1724 - Type N. These details matter because the right article description can still fail on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute supplies this article

As an authorized Erich Jaeger distributor, ConnectorRoute supplies 016271 new and genuine, in original manufacturer packaging. Goods are supplied in full boxes; your quote states the box quantity, per-piece price, availability and lead time.

Products that belong in the same order

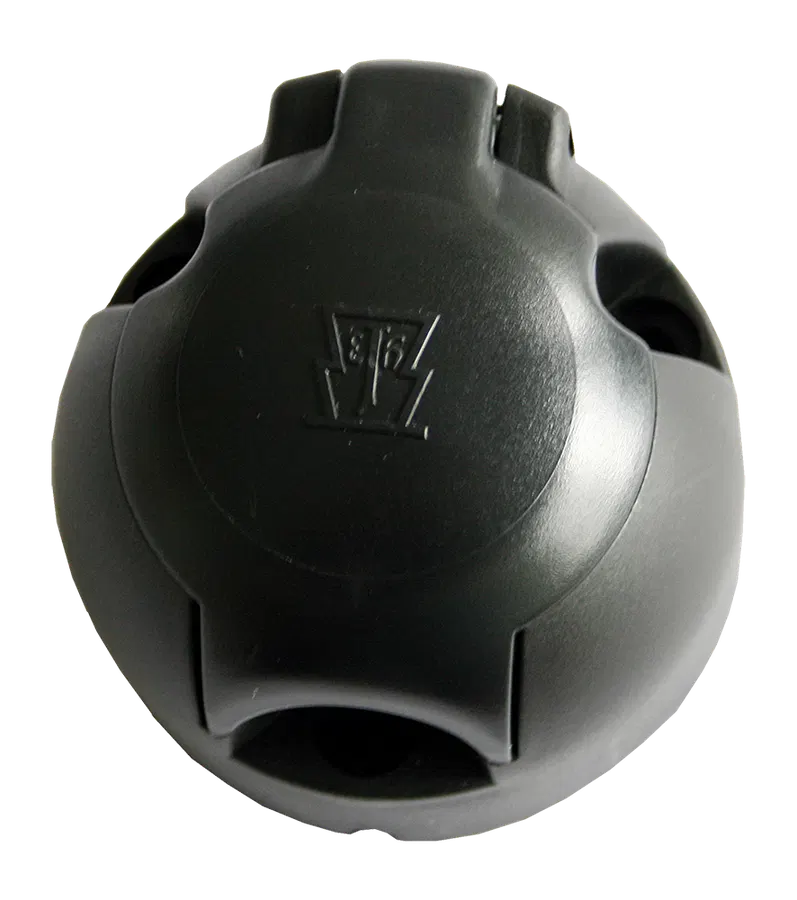

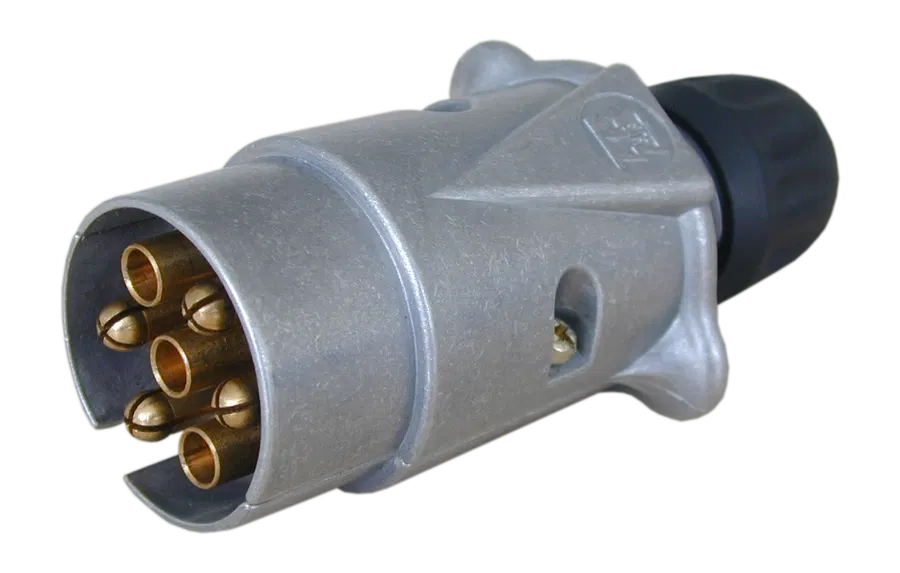

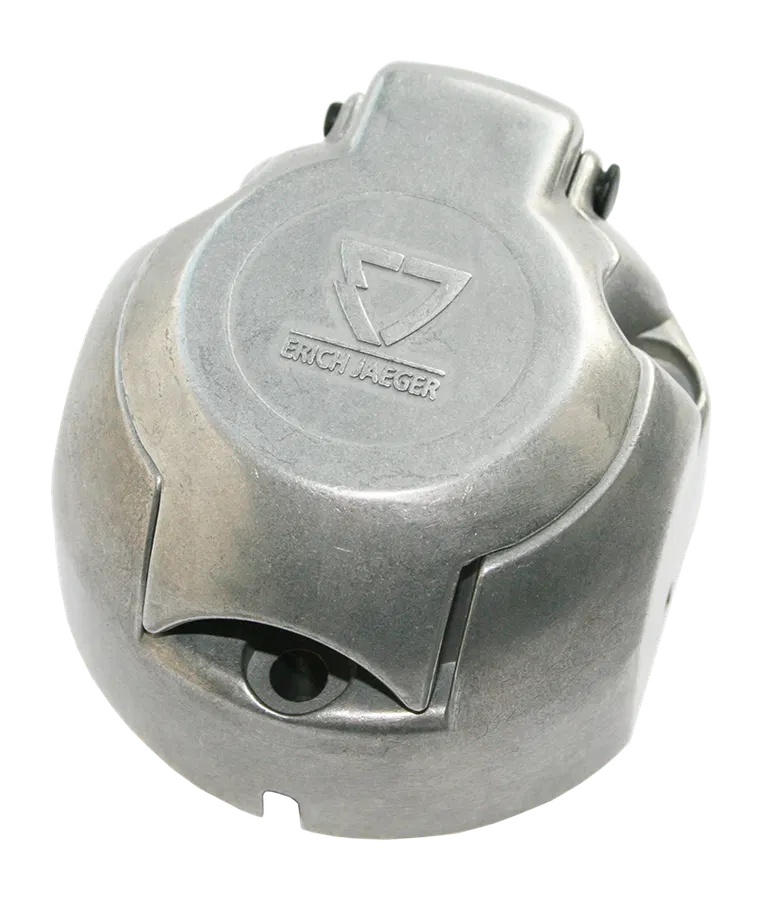

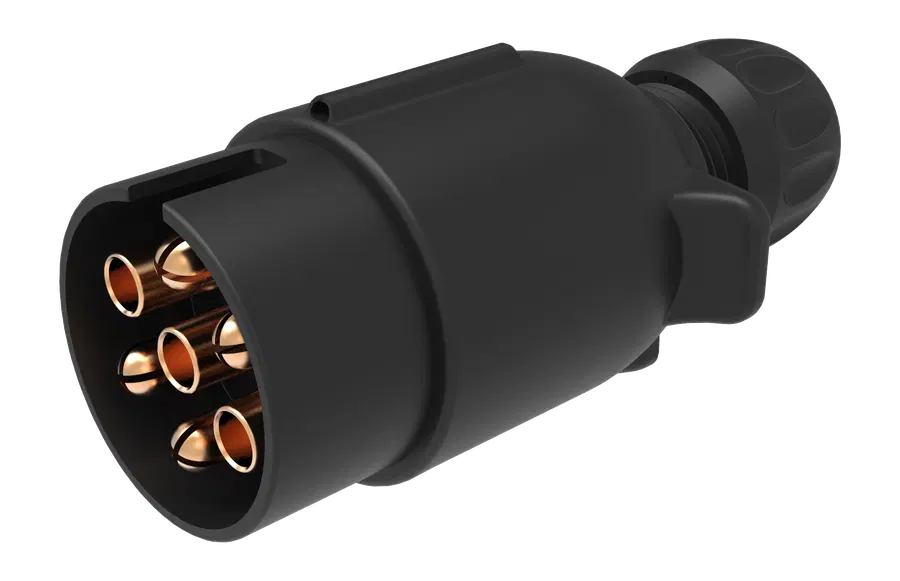

Where possible, combine related system parts in one order: 101100 7P/12V Socket (ISO 1724 - Type N), 201212 7P/12V Plug (ISO 1724 - Type N), 651017 Adapter coil - with 7P/12V plug (ISO 1724) and 7P/24V plug (ISO 1185), 101285 7P/12V Socket (ISO 1724 - Type N), 201005 7P/12V Plug (ISO 1724 - Type N). That prevents solving one article number while leaving the matching plug, socket, coil cable or adapter as the next bottleneck.

Structured product facts

Article number
016271
Product family
coil cable
Standard
ISO 3732 - Type S, ISO 1185 - Type N, ISO 3731 - Type S, ISO 1724 - Type N
Voltage
12V, 24V
Poles
7P
Industry
cars, agriculture, commercial vehicles

Questions about this article

Is this a genuine Erich Jaeger part?

Yes. ConnectorRoute is an authorized Erich Jaeger distributor and supplies 016271 new and genuine, sourced directly from Erich Jaeger.

How is 016271 packaged and ordered?

Erich Jaeger parts are supplied in original manufacturer boxes. Orders are placed per box; the product page or quote states the box quantity and the per-piece price.

What should I send with an enquiry?

Send the Erich Jaeger article number and the quantities you need. For system advice, add photos of the installed part, the mating connector and vehicle or trailer information.

Technical specifications

Technical data

Working length [in m]
3
Max. working length [in m]
3,00
Max. extension length [in m]
4,50
Wire cross-sectional area
6x 1.5mm² + 1x 2.5mm²
No. of coils
43
Product group
coil cable
Standard
ISO 3732 - Type S, ISO 1185 - Type N, ISO 3731 - Type S, ISO 1724 - Type N
Industry
cars, agriculture, commercial vehicles
Temperature resistance [in °C]
-40.0 - 100.0
Voltage [in V]
12, 24
Packaging
without packaging
Cable color
black
Material of cable
PUR
No. of connected plugs
0
No. of connected sockets
0
No. of poles
07
Outer coil diameter [in mm]
50,00
Stripping length [in mm]
50,00
cable cross-sectional area [in mm]
9,50
