€5.64 / 100
58583-1 · SUPERSEAL 1.5Original brand part
58583-1
AMP SUPERSEAL 1.5 crimp and service tools

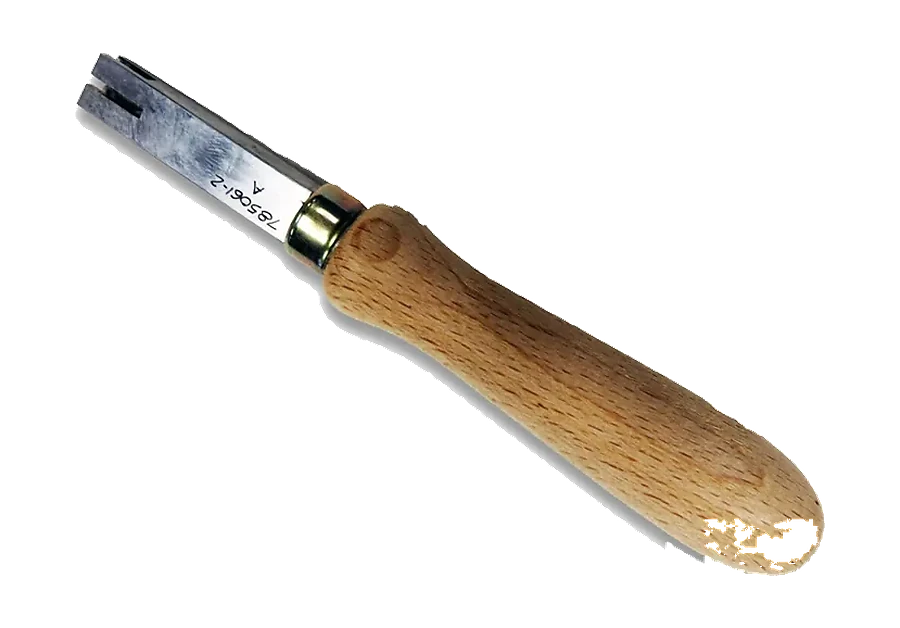

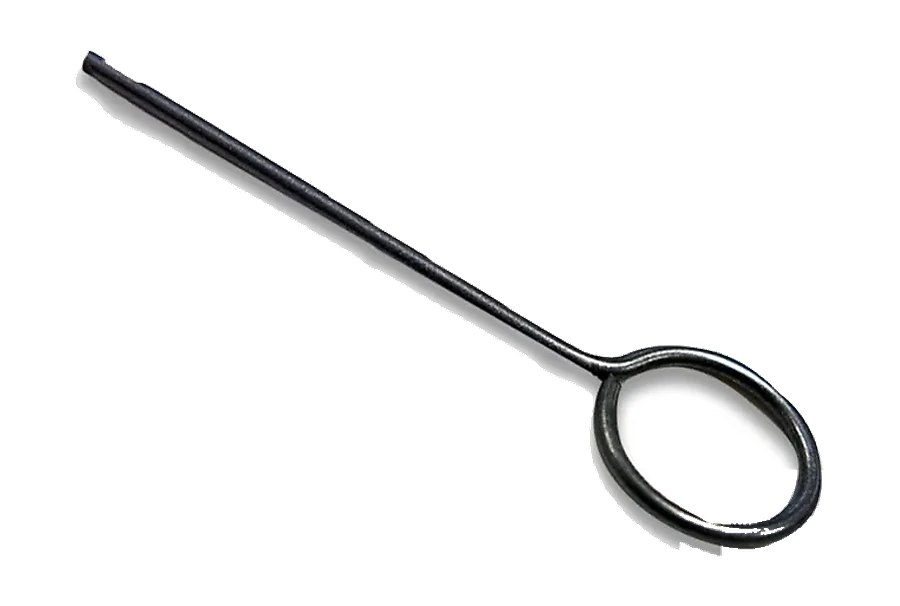

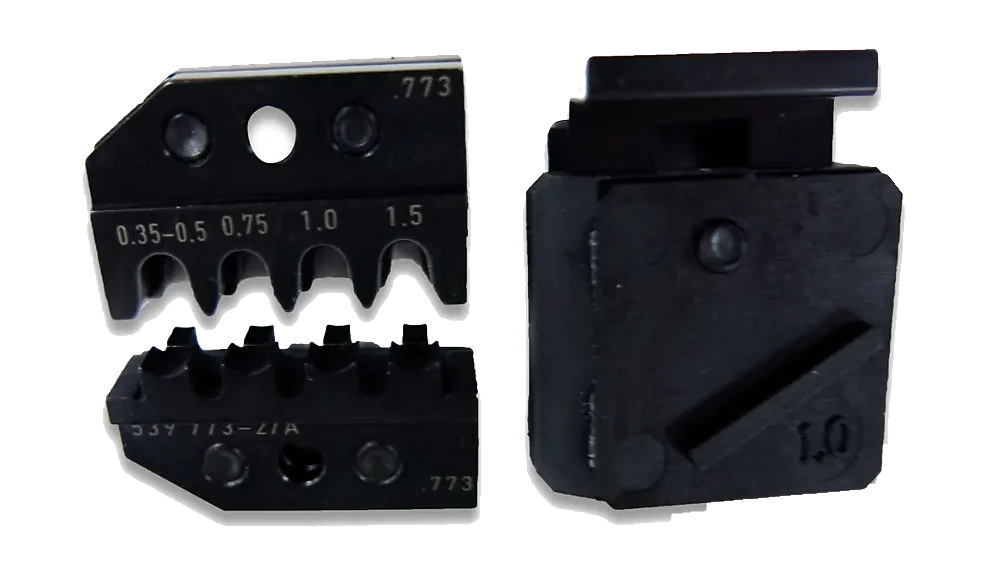

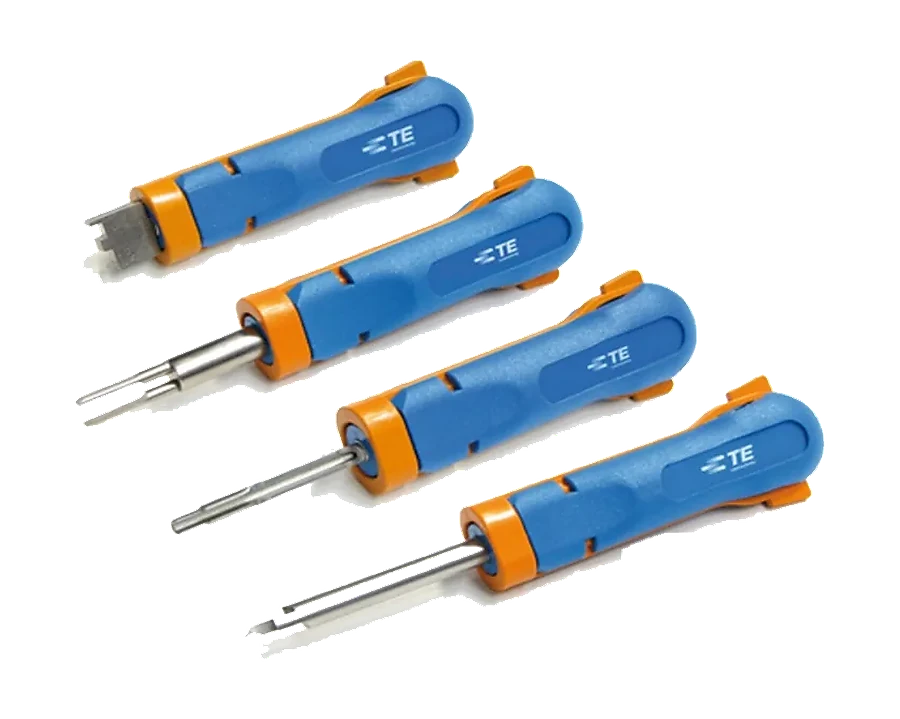

Genuine TE hand tools: PRO-CRIMPER III for 0.75–1.5 mm², ERGOCRIMP frame + die for 0.35–0.5 mm², extraction and secondary-lock tools
All part numbers in this family · 7
Part number 58583-1ConnectorRoute SKU CR-CN-000313
Business price · excl. VAT
Price on requestper piece
Lead time: 1–2 weeks
Free shipping from €500 · below that €25 flat
Current rating14 A
Wire range0.35–2.5 mm²
SealingIP67
Temperature-40 °C … +125 °C
Goes with this part
Frequently ordered together with 58583-1
Exactly the parts that fit the selected part number — quantities per housing are indicated.
Brand and references
Part numbers and cross-references
Original manufacturer numbers of this family. Use them to match the article in your drawing, BOM or existing supplier system.
| Brand | Part numbers |
|---|---|
| TE Connectivity (AMP) | 58583-1, 539635-1, 539773-2, 9-1579007-1, 785084-1, 785061-1, 785061-2 |
| TE Connectivity | AMP is the TE Connectivity brand; part numbers are TE numbers |
Product context
Where this connector is used
SUPERSEAL 1.5 in the truck, trailer and agricultural world
Rear, side-marker and work lamps, licence-plate lights, reversing sensors and buzzers, small solenoids and valves, motorcycle and scooter wiring, sensor pigtails on agricultural implements. The 2-way is the lamp connector on countless HELLA and other 24 V trailer lamps.
Original parts, system supply
ConnectorRoute supplies the original TE Connectivity / DEUTSCH parts, not compatibles. Housings, wedgelocks, contacts, seals, tools and the matching FLRY-B cable come from one source, so a harness shop or trailer builder can order the complete connection per drawing position.
Ordering and lead time
Housings and wedgelocks are sold per piece; contacts, seals and plugs in packs of 100. Priced articles go straight into the cart; for project volumes or unpriced numbers request a quote and we confirm price and lead time by mail.
Structured product facts
- Brand
- TE Connectivity (AMP)
- Part number
- 58583-1, 539635-1, 539773-2, 9-1579007-1, 785084-1, 785061-1
- Product type
- Tool
- Sales unit
- per piece
Questions about this connector
Is this an original TE Connectivity part?
Yes. Every part number on this page is an original TE Connectivity part (TE Connectivity brand), supplied through the official distribution channel. We do not sell compatible copies.
What else do I need for a complete connection?
See the system products above: housings, wedgelocks, contacts and tools of the same series.
Which cable and crimp tool go with it?
FLRY-B thin-wall vehicle cable in the cross-sections of the contact wire range; ConnectorRoute stocks it on 50/100/500 m spools. Crimp tools of this series are listed under system products.
Technical specifications
Technical data
- Brand
- TE Connectivity (AMP)
- Product type
- Tool
- Contact size
- 1.5 mm tab
- Current rating
- 14 A
- Wire range
- 0.35–2.5 mm²
- Sealing
- IP67 (IPX6K / IPX9K on housing PDP)
- Temperature
- -40 °C … +125 °C
- Voltage
- 12/24/48 V systems
- Positions
- 1, 2, 3, 4, 5, 6
- Pitch
- 6.0 mm
- Mating cycles
- 10
- Materials
- PA 6.6 GF housings (black), red PA secondary lock, silicone seals, tin-plated bronze/brass contacts
- Sales unit
- per piece
