€0.39
DTP04-4P · DTPOriginal brand part
DTP04-4P
DEUTSCH DTP 4-way Receptacle (pins)
4-position power receptacle for size 12 pin contacts, 25 A per contact
All part numbers in this family · 2
Part number DTP04-4PConnectorRoute SKU CR-CN-000263
Business price · excl. VAT
€4.84per piece
Quantity pricing — click a tier to set the quantity
Lead time: 1–2 weeks
Free shipping from €500 · below that €25 flat
Current rating25 A
Wire range2.0–6.0 mm² (14–10 AWG)
SealingIP67 / IP68
Temperature-55 °C … +125 °C
Goes with this part
Frequently ordered together with DTP04-4P
Exactly the parts that fit the selected part number — quantities per housing are indicated.
Brand and references
Part numbers and cross-references
Original manufacturer numbers of this family. Use them to match the article in your drawing, BOM or existing supplier system.
| Brand | Part numbers |
|---|---|
| DEUTSCH (TE Connectivity) | DTP04-4P, DTP04-4P-C015 |
| TE Connectivity | TE part numbers are the original DEUTSCH numbers (DEUTSCH is a TE brand since 2012) |

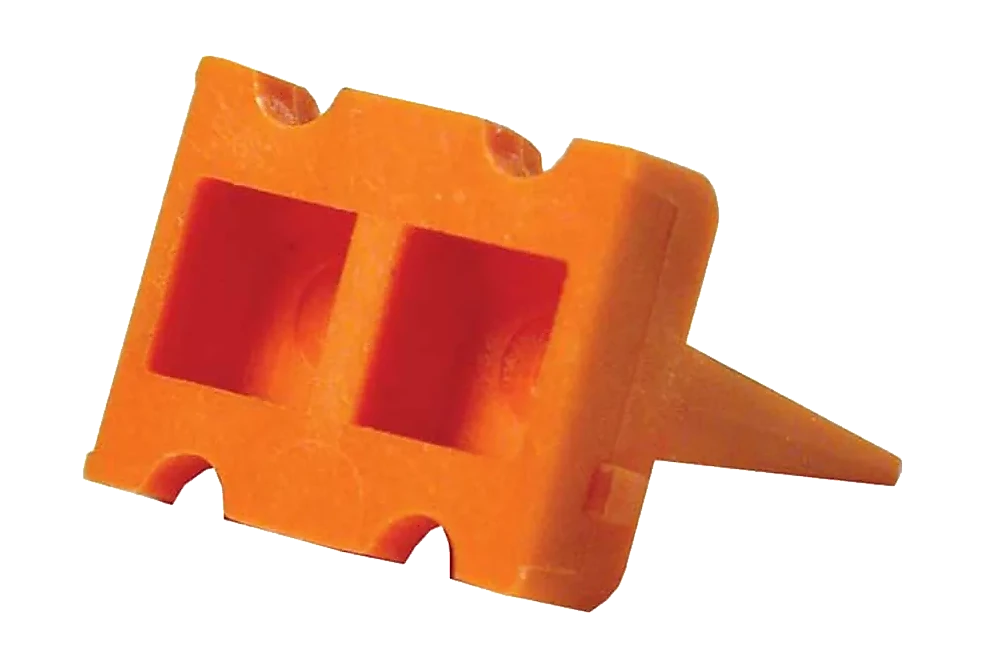

| Wedgelock | WP-4P |
Product context
Where this connector is used
DTP in the truck, trailer and agricultural world
Power feeds up to 25 A per contact: EBS/ABS supply, tail-lift and winch motors, work-lamp circuits, auxiliary battery lines and implement power on tractors.
Original parts, system supply
ConnectorRoute supplies the original TE Connectivity / DEUTSCH parts, not compatibles. Housings, wedgelocks, contacts, seals, tools and the matching FLRY-B cable come from one source, so a harness shop or trailer builder can order the complete connection per drawing position.
Ordering and lead time
Housings and wedgelocks are sold per piece; contacts, seals and plugs in packs of 100. Priced articles go straight into the cart; for project volumes or unpriced numbers request a quote and we confirm price and lead time by mail.
Structured product facts
- Brand
- DEUTSCH (TE Connectivity)
- Part number
- DTP04-4P, DTP04-4P-C015
- Product type
- Housing
- Positions (this family)
- 4-way
- Sales unit
- per piece
Questions about this connector
Is this an original DEUTSCH part?
Yes. Every part number on this page is an original TE Connectivity part (DEUTSCH brand), supplied through the official distribution channel. We do not sell compatible copies.
What else do I need for a complete connection?
The mating housing on the other side, one wedgelock per housing, one contact per cavity (pins in the receptacle, sockets in the plug) and a sealing plug for every unused cavity.
Which cable and crimp tool go with it?
FLY thick-wall vehicle cable / FLRY-B thin-wall vehicle cable in the cross-sections of the contact wire range; ConnectorRoute stocks it on 50/100/500 m spools. Crimp tools of this series are listed under system products.
Technical specifications
Technical data
- Brand
- DEUTSCH (TE Connectivity)
- Product type
- Housing
- Positions (this family)
- 4-way
- Contact size
- 12
- Current rating
- 25 A
- Wire range
- 2.0–6.0 mm² (14–10 AWG)
- Sealing
- IP67 / IP68 (confirm per MPN)
- Temperature
- -55 °C … +125 °C
- Voltage
- 12/24/48 V systems
- Positions
- 2, 4
- Mating cycles
- 100
- Materials
- Thermoplastic housing, silicone seals, nickel or gold plated contacts
- Sales unit
- per piece
