€0.15
DTM04-3P · DTMOriginal brand part
DTM04-3P

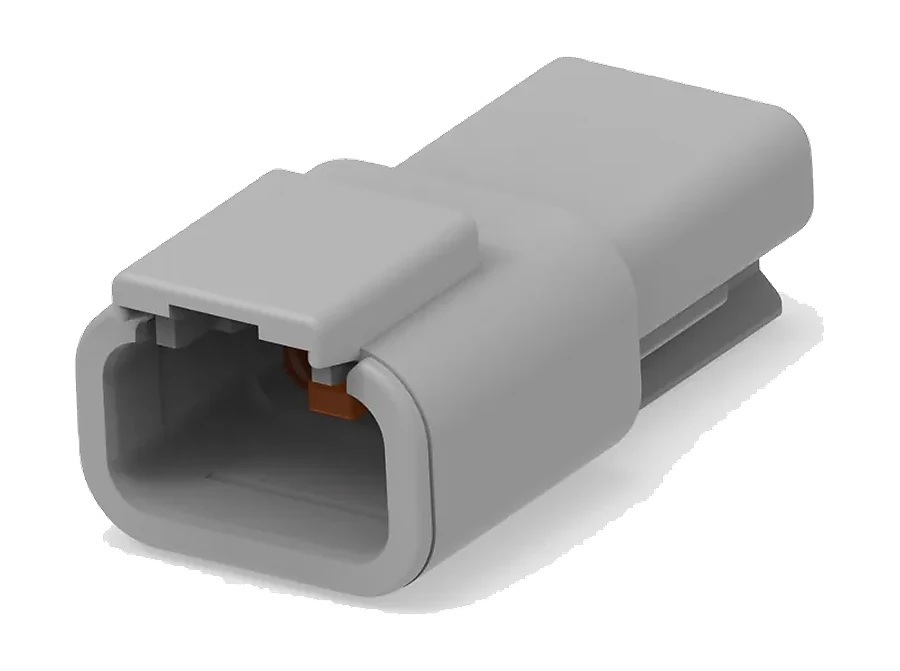

DEUTSCH DTM 3-way Receptacle (pins)
3-position receptacle housing for pin contacts, size 20 contacts, wedgelock ordered separately
Part number DTM04-3PConnectorRoute SKU CR-CN-000203
Business price · excl. VAT
€1.66per piece
Quantity pricing — click a tier to set the quantity
Lead time: 1–2 weeks
Free shipping from €500 · below that €25 flat
Current rating7.5 A
Wire range0.35–1.5 mm² (22–16 AWG)
SealingIP68
Temperature-55 °C … +125 °C
Goes with this part
Frequently ordered together with DTM04-3P
Exactly the parts that fit the selected part number — quantities per housing are indicated.
Brand and references
Part numbers and cross-references
Original manufacturer numbers of this family. Use them to match the article in your drawing, BOM or existing supplier system.
| Brand | Part numbers |
|---|---|
| DEUTSCH (TE Connectivity) | DTM04-3P |
| TE Connectivity | TE part numbers are the original DEUTSCH numbers (DEUTSCH is a TE brand since 2012) |

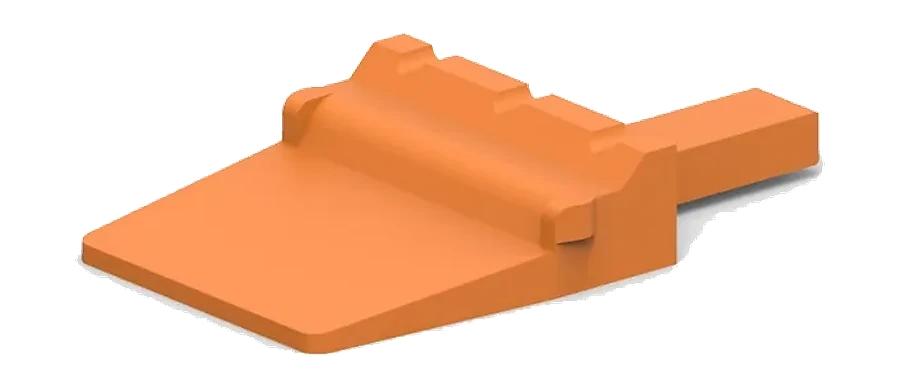

| Wedgelock | WM-3P |
Product context
Where this connector is used
DTM in the truck, trailer and agricultural world
Where space is tight and currents are small: CAN and sensor stubs, wheel-speed sensors, tachograph and telematics units, cab electronics and engine sensors on agricultural and construction machines.
Original parts, system supply
ConnectorRoute supplies the original TE Connectivity / DEUTSCH parts, not compatibles. Housings, wedgelocks, contacts, seals, tools and the matching FLRY-B cable come from one source, so a harness shop or trailer builder can order the complete connection per drawing position.
Ordering and lead time
Housings and wedgelocks are sold per piece; contacts, seals and plugs in packs of 100. Priced articles go straight into the cart; for project volumes or unpriced numbers request a quote and we confirm price and lead time by mail.
Structured product facts
- Brand
- DEUTSCH (TE Connectivity)
- Part number
- DTM04-3P
- Product type
- Housing
- Positions (this family)
- 3-way
- Sales unit
- per piece
Questions about this connector
Is this an original DEUTSCH part?
Yes. Every part number on this page is an original TE Connectivity part (DEUTSCH brand), supplied through the official distribution channel. We do not sell compatible copies.
What else do I need for a complete connection?
The mating housing on the other side, one wedgelock per housing, one contact per cavity (pins in the receptacle, sockets in the plug) and a sealing plug for every unused cavity.
Which cable and crimp tool go with it?
FLRY-A ultra-thin-wall vehicle cable / FLRY-B thin-wall vehicle cable in the cross-sections of the contact wire range; ConnectorRoute stocks it on 50/100/500 m spools. Crimp tools of this series are listed under system products.
Technical specifications
Technical data
- Brand
- DEUTSCH (TE Connectivity)
- Product type
- Housing
- Positions (this family)
- 3-way
- Contact size
- 20
- Current rating
- 7.5 A
- Wire range
- 0.35–1.5 mm² (22–16 AWG)
- Sealing
- IP68 (confirm per MPN)
- Temperature
- -55 °C … +125 °C
- Voltage
- 12/24/48 V systems
- Positions
- 2, 3, 4, 6, 8, 12
- Mating cycles
- 100
- Materials
- Thermoplastic housing, silicone seals, nickel or gold plated contacts
- Sales unit
- per piece
