€28.91 per piece · box of 40ISO 12098 · 15-core, 24 V (ISO 12098)Generic standard cable
15-core trailer cable ISO 12098 15-core, 24 V (ISO 12098)
12 x 1.5 + 3 x 2.5 mm² — the 24 V 15-pin lighting and signal cable
Colour
Spool length
Article: CR-CB-001018
Business price · excl. VAT
€218.60per spool
Lead time: 1–2 weeks
Free shipping from €500 · below that €25 flat
1
ConnectorRoute supplies standard-compliant vehicle cable from European manufacturers. Article numbers of other brands are used for identification and cross-reference purposes only.
Construction12 x 1.5 + 3 x 2.5 mm²
Number of cores15 cores
Temperature range-40 °C … +105 °C
StandardISO 12098 / ISO 4141
SKUs
Colours, lengths and article numbers
One article number per colour and spool length. Prices are per spool, excl. VAT.
| Colour | Spool | ConnectorRoute SKU | Price / spool |
|---|---|---|---|
| black | 50 m | CR-CB-001018 | €218.60 €4.37 per m |
| black | 100 m | CR-CB-001019 | €437.19 €4.37 per m |
System products

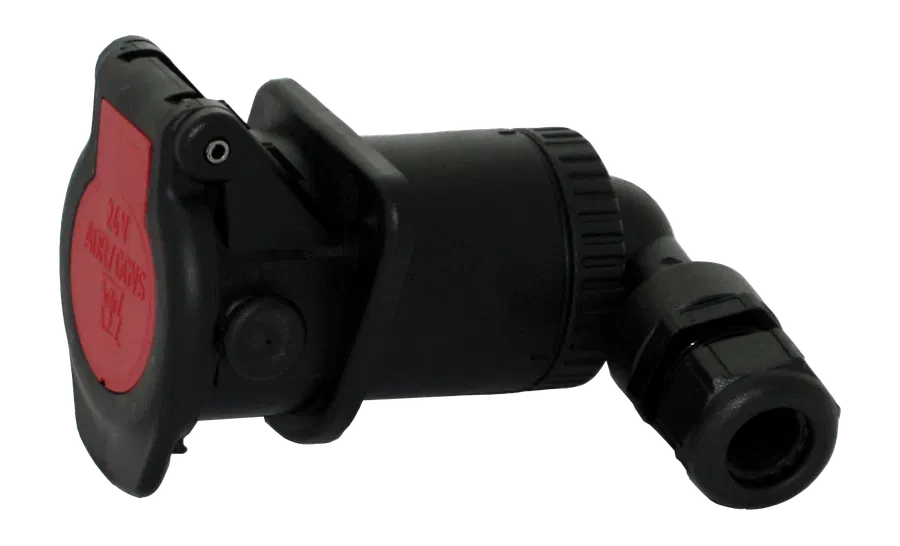

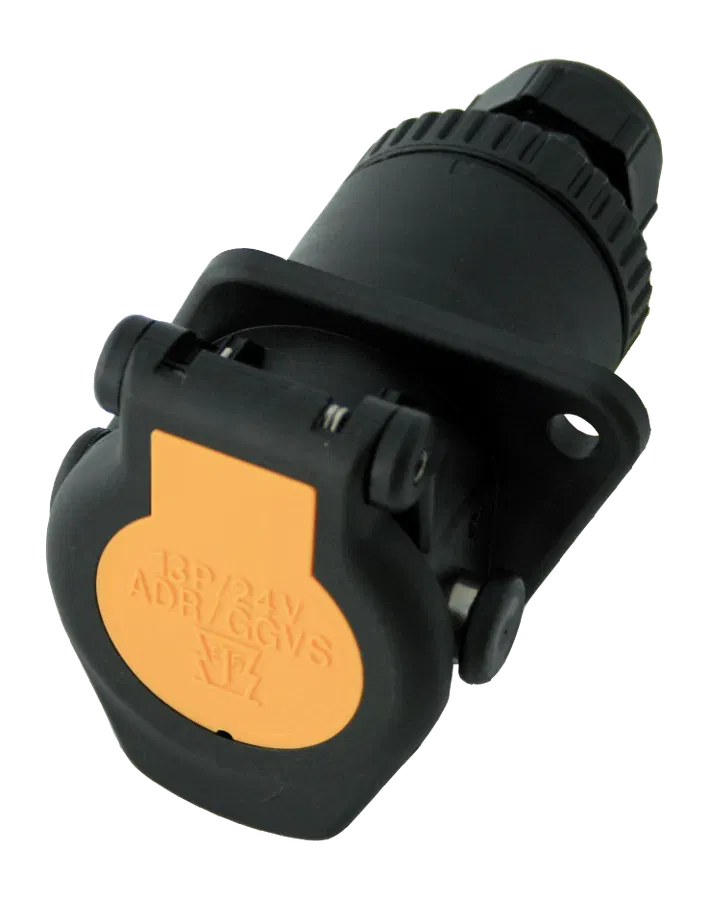

Frequently ordered together
The connectors, sockets and coil cables that this cable is terminated to, plus neighbouring cross-sections of the same type.
€28.91 per piece · box of 40
€28.91 per piece · box of 40
€15.72 per piece · box of 40
€21.47 per piece · box of 36Standard and references
Standard and OE reference numbers
Manufactured to the standard below. Where vehicle and trailer builders list this cable under their own part number, those OE numbers are shown so you can identify the article in your system.
| Standard / OE brand | Reference |
|---|---|
| Standard | ISO 12098 / ISO 4141 |
Product context
Application and selection
What is ISO 12098?
Fixed cable from the ISO 12098 15-pin socket or plug to the trailer lighting and signal distribution: all lighting functions, reversing, fog, side markers and the spare circuits in one cable. The 2.5 mm² cores carry earth and the higher-load circuits. Matches ISO 12098 plugs, sockets and 15-pin coil cables.
How to choose the cross-section
Select the conductor cross-section on the current of the circuit and the cable length: 0.35–1.0 mm² for signals and sensors, 1.5–2.5 mm² for lighting and most control circuits, 4.0–6.0 mm² for high-load consumers, and 10 mm² and above for supply, battery and earth leads. When in doubt, go one size up — voltage drop on 24 V trailers is a common cause of lighting faults.
How ConnectorRoute supplies this cable
Standard-compliant cable from European manufacturers, delivered on spools of 50 / 100 m. Colours and cross-sections are stocked as standard articles; larger volumes, cut lengths and drum quantities are quoted on request. Prices are per spool, excl. VAT, for business customers.
Structured product facts
- Article
- CR-CB-001018
- Standard
- ISO 12098 / ISO 4141
- Construction
- 12 x 1.5 + 3 x 2.5 mm²
- Colours
- 1
- Spool lengths
- 50 / 100 m
Questions about this cable
Is this original-brand cable?
This is generic cable manufactured to ISO 12098 / ISO 4141. It is manufacturer-independent: the specification, not the brand, is what your harness or approval requires. OE numbers of vehicle builders are listed for identification where known.
Can I order less than a full spool?
The standard sales units are 50 / 100 m spools. Cut lengths and drum quantities are possible on request — send the type, cross-section, colour and length to ConnectorRoute.
Which connector does this cable belong to?
This cable is designed for the ISO 12098 / ISO 4141 connectors: the core count and colours match the pin assignment of the corresponding Erich Jaeger plugs and sockets shown under 'Frequently ordered together'.
Technical specifications
Technical data
- Standard
- ISO 12098 / ISO 4141
- Construction
- 12 x 1.5 + 3 x 2.5 mm²
- Number of cores
- 15
- Insulation
- PVC / PUR sheath
- Wall thickness
- thin-wall
- Temperature range
- -40 °C … +105 °C
- Rated voltage
- 24 V DC
- Conductor
- bare copper, fine-stranded (class 5), ISO 12098 core colours
- Colours
- black
- Spool lengths
- 50 / 100 m
- Sales unit
- spool
